3.4.2 "Alarm Setup" Tab
• Sheet Layout
When the "Alarm Setup" tab is pressed in the "Configuration Setup" tab
sheet, the following tab sheet appears.

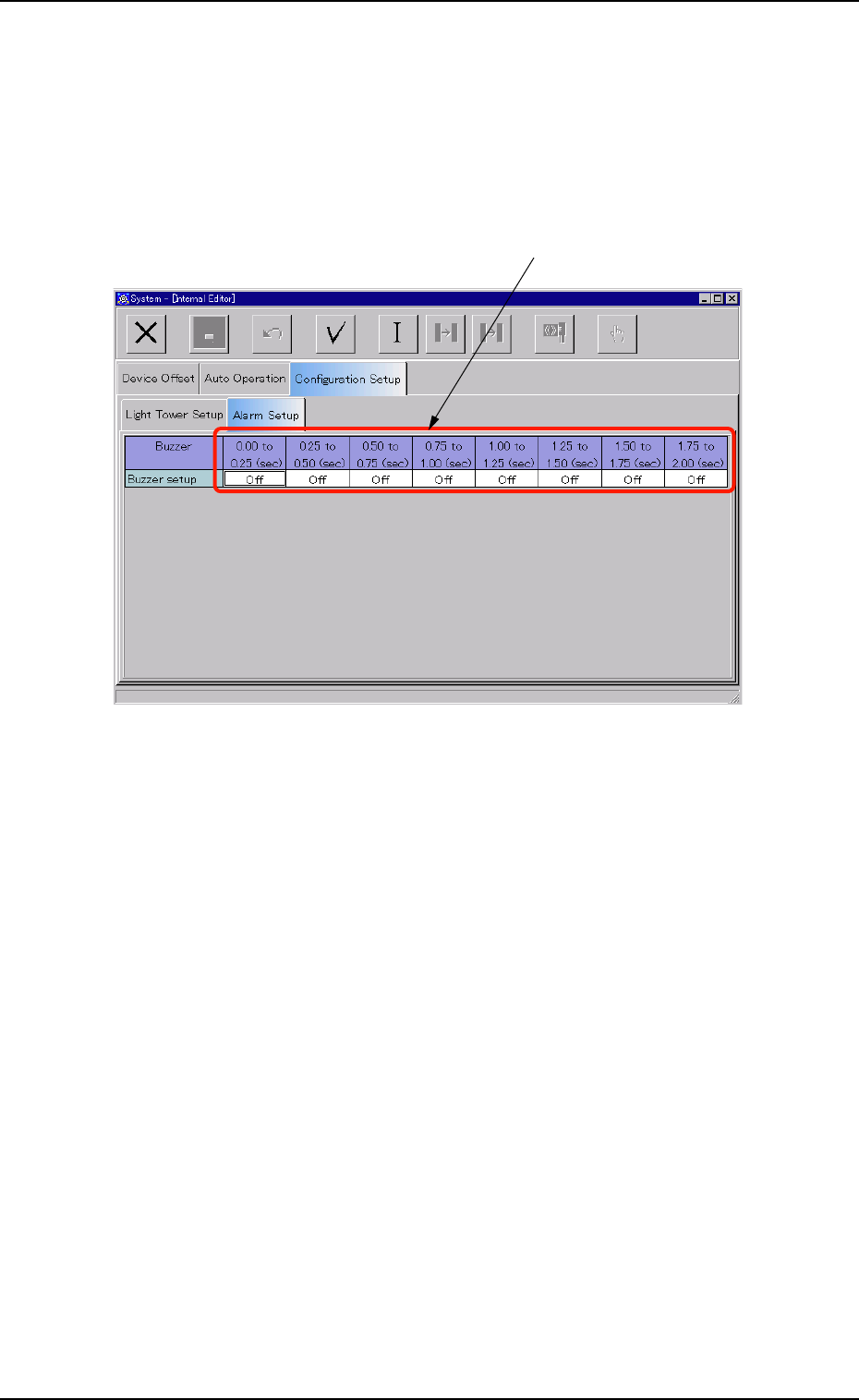

Fig. 3E55 "Alarm Setup" Tab Sheet
• Sheet Composition
*1 Time Items
An optional alarm sounds in a cycle of two seconds. The two sec-
onds is divided into 10 intervals and each interval is assigned as
"ON" or "OFF" to make a sound of your own.
0305-001 5-66
AIM01EDTP
*1
3.4 "Configuration Setup" Tab
4. Nozzle Data
Nozzle types can be set for each nozzle position (Nos. 1 through 5) on
each head.
The nozzle data can also be set.
4.1 "Placement Head/Nozzle Data" Tab
• Sheet Layout
When the "Placement Head/Nozzle Data" tab is pressed in the "Nozzle
Data" window, the following tab sheet appears inside the window.

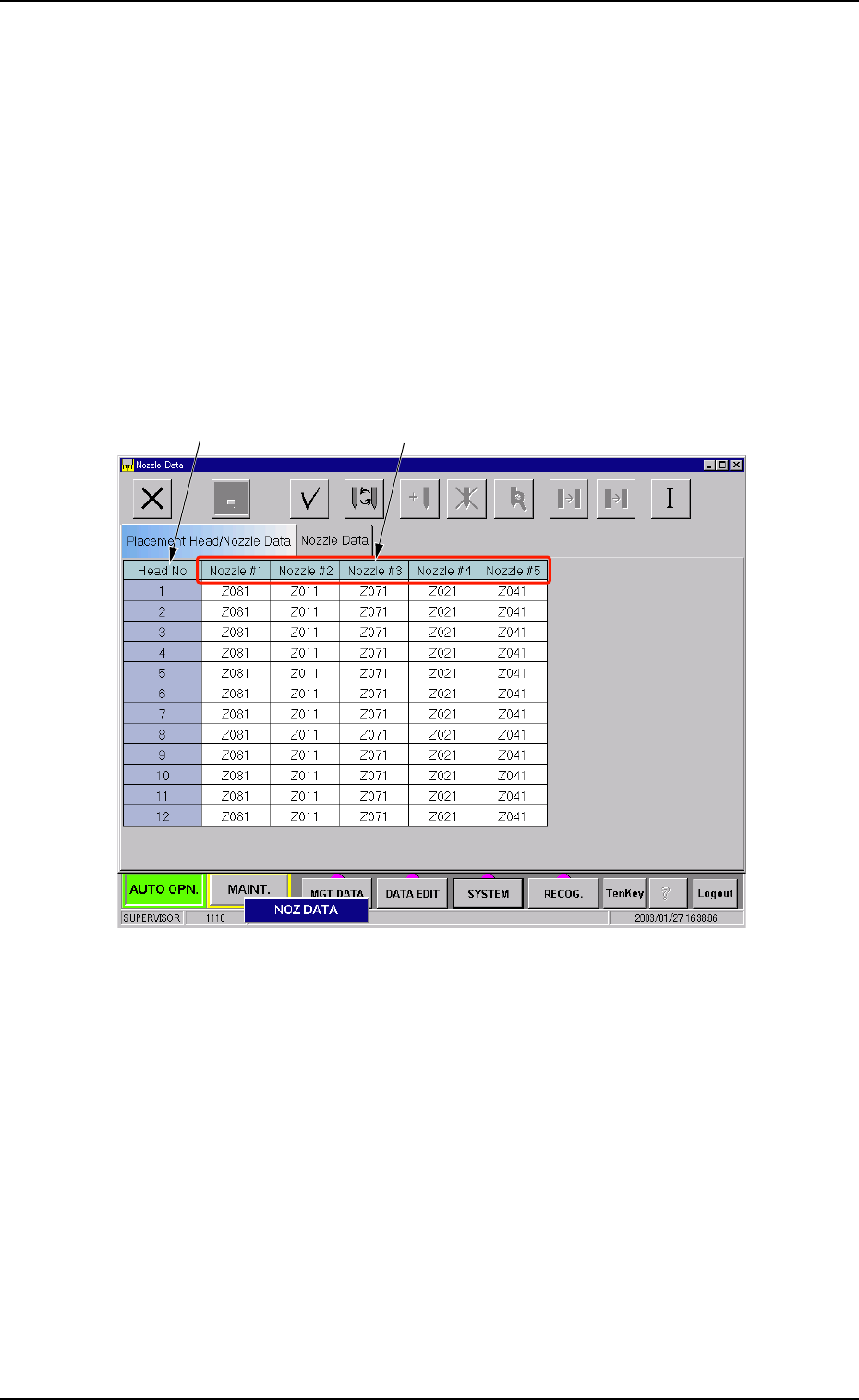

Fig. 3E56 "Placement Head/Nozzle Data" Tab Sheet
• Sheet Composition
*1 Head No
The head Nos. are displayed.
*2 Nozzle #1 to #5
Set a nozzle allocation No. in each text box.
When you double-click an arbitrary text box (nozzle allocation No.),
the "Nozzle Type" window opens.
0305-001 5-67
AIM01EDTP
*1 *2
4. Nozzle Data
• Operation Procedure
Nozzle Type Change Operation
(1) Select the text box of "Head No." related to the nozzle (Nozzle
#) to be changed and double-click it.
The "Nozzle Type" window opens.

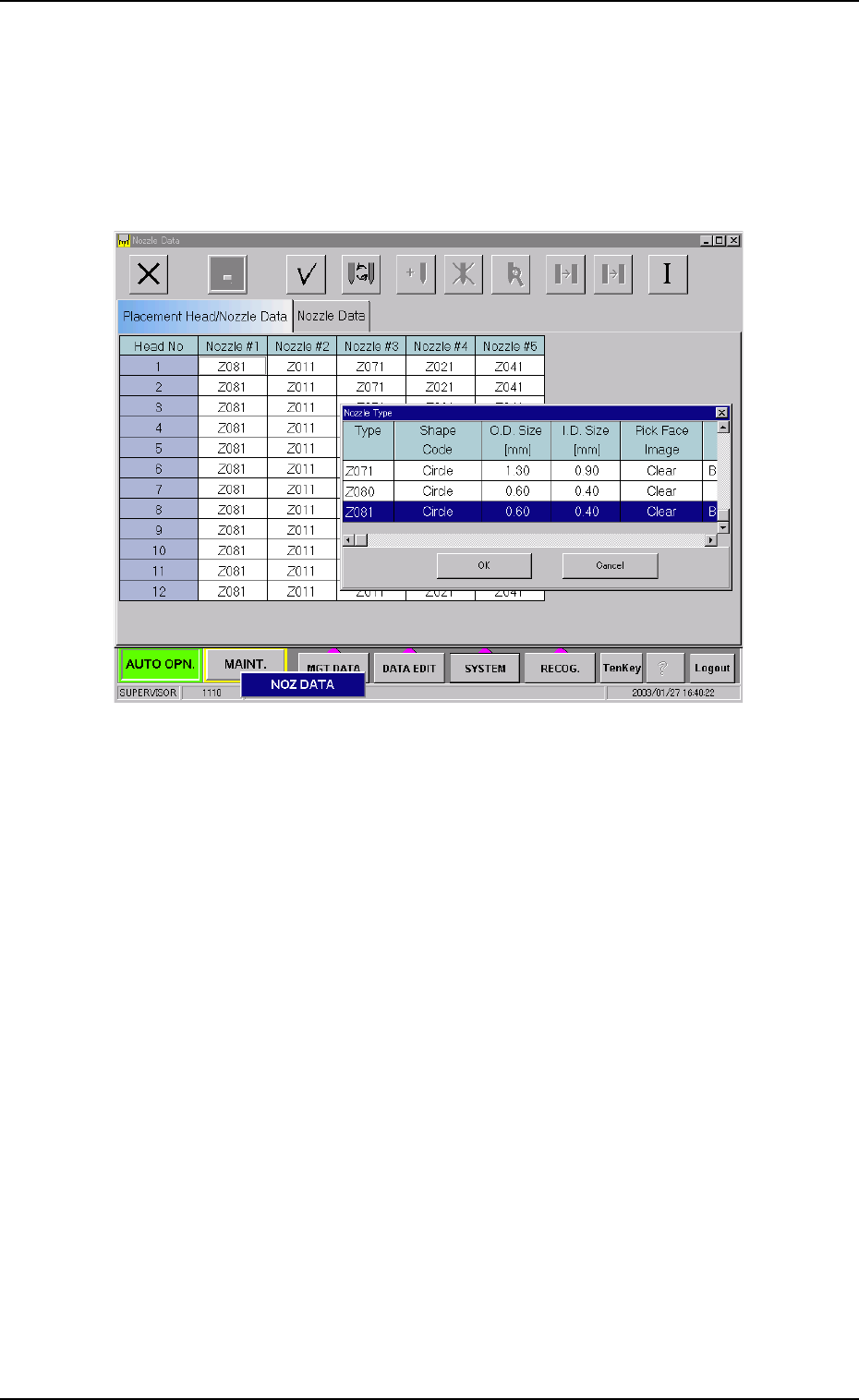

Fig. 3E57
(2) Select the nozzle to be allocated and press the [OK] button.
The selected nozzle type is set in the specified text box.
0305-001 5-68 AIM01EDTP
4.1 "Placement Head/Nozzle Data" Tab
