5.7 The Maintenance Menu

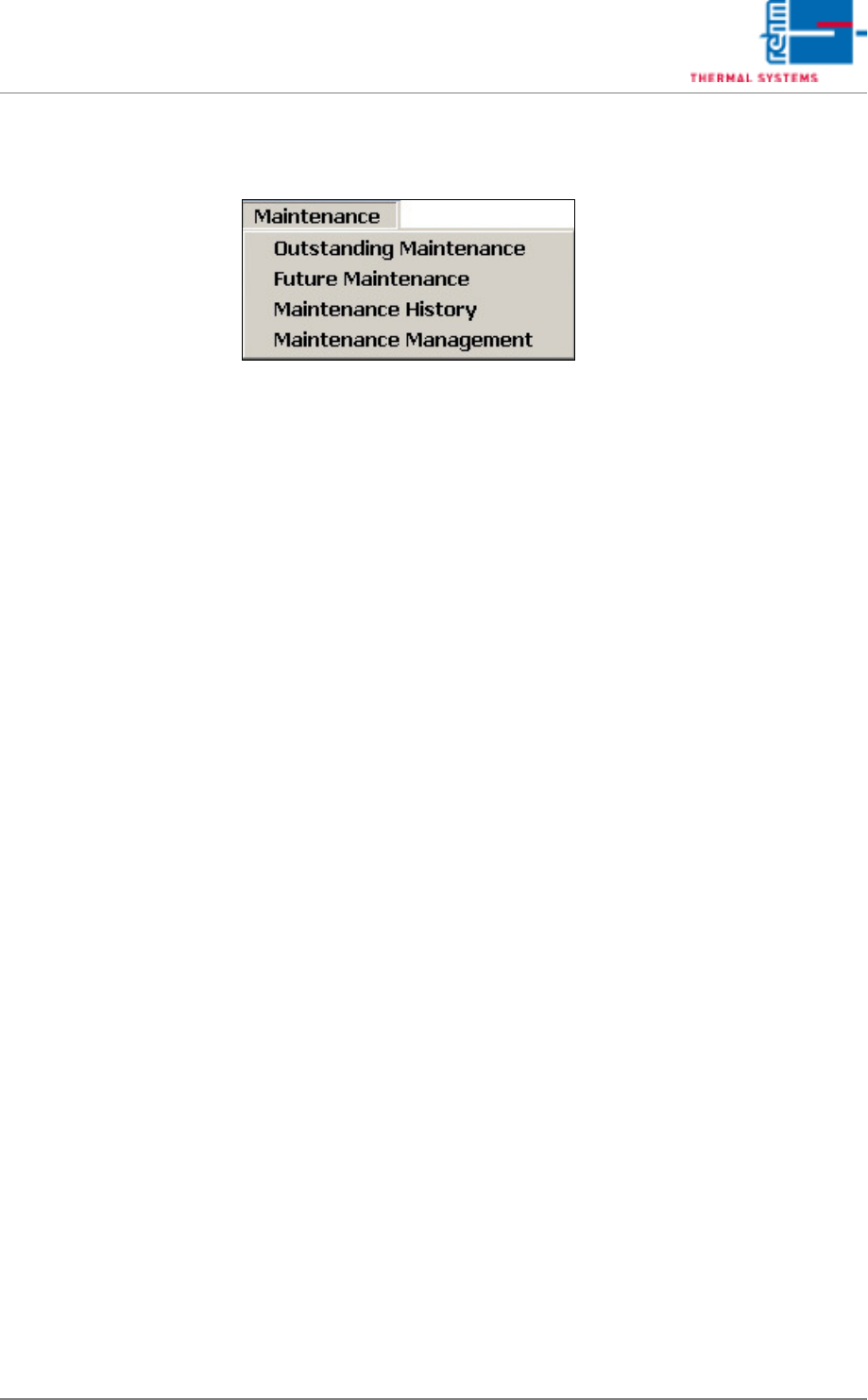

Various maintenance messages can be set up and edited with the functions
included in the maintenance menu.
VISION XP+ VAC Page 143
5 Software
5.7 The Maintenance Menu
Operating Instructions
Version 1.5
5.7.1 Display of Open Maintenance Messages

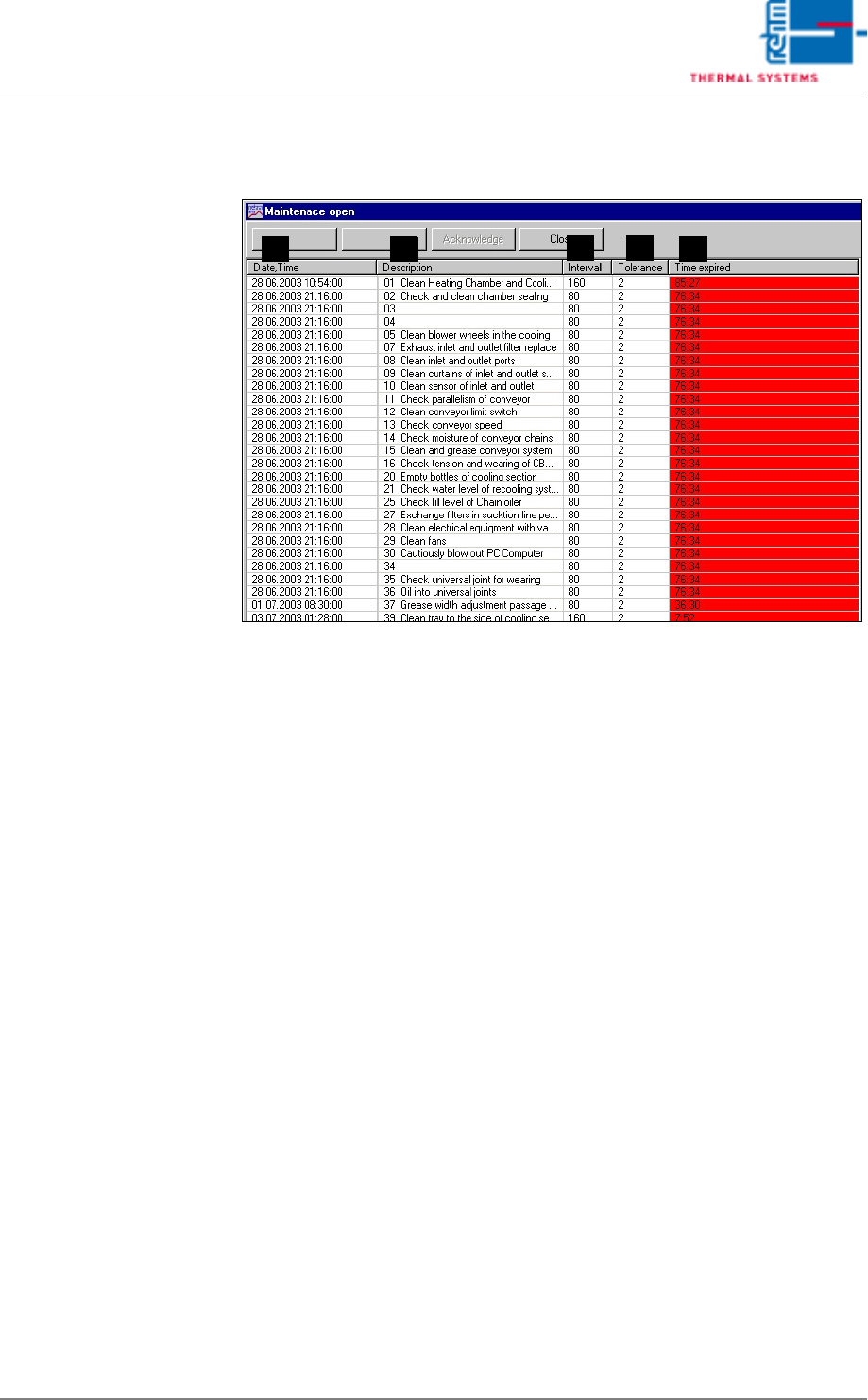

Fig. 5-68 Open Maintenance Messages
Open maintenance messages are displayed here.
A) Date/Time
Point in time at which the maintenance message was generated.
B) Description
Type of maintenance task.
C) Interval
The interval at which a given maintenance task must be repeated.
D) Tolerance
Specified time between generation of the maintenance message and
acknowledgement by the operator
E) Timexpired
Time elapsed since generation of the maintenance message.
If anything has been saved in conjunction with the maintenance message, it
can be selected with the Link 1 and Link 2 buttons.
After maintenance tasks have been completed, the respective messages
can be acknowledged by selecting the appropriate line and clicking the
Acknowledge button. The software prompt is then displayed. Enter the
correct password and acknowledge by clicking the OK button.
If you do not possess the required authority, click the Abort button. The
maintenance message remains open in this case.
The maintenance interval starts again from the beginning after correct
password entry.
A
DC
B E
Page 144 VISION XP+ VAC
5 Software
5.7 The Maintenance Menu
Operating Instructions
Version 1.5
5.7.2 Pending Maintenance Tasks

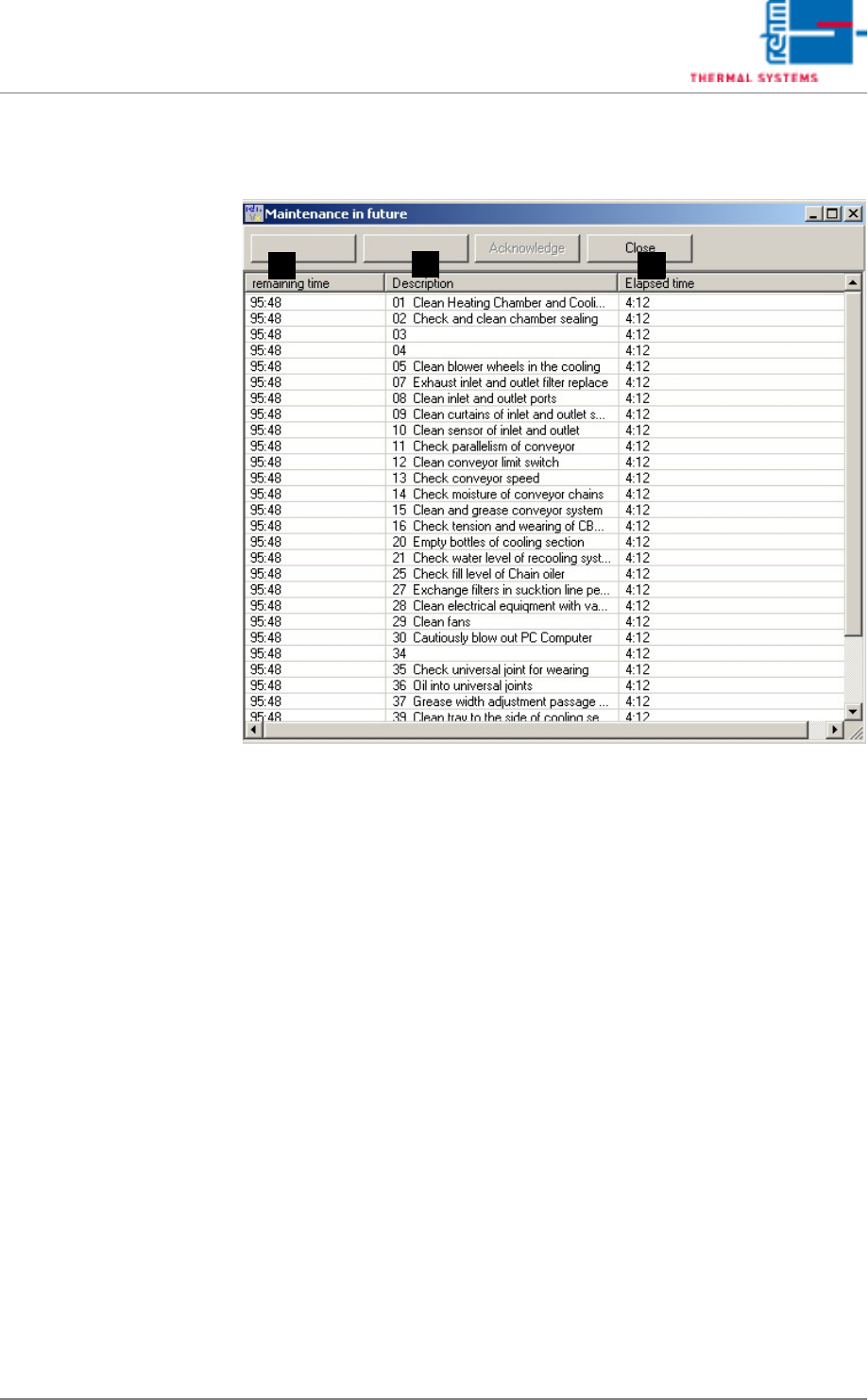

Fig. 5-69 Pending Maintenance Tasks
Maintenance tasks which will soon become necessary are displayed here.
Each respective maintenance task can be executed ahead of schedule or
reset. The Acknowledge button must be clicked to this end.
A) Remaining Time
Remaining time until maintenance is required.
B) Description
Type of maintenance task.
C) Elapsed Time
Time elapsed since the maintenance interval was last reset.
If anything has been saved in conjunction with the maintenance message, it
can be selected with the Link 1 and Link 2 buttons.
A C
B
