Page 34 Vision XP+ VAC
3 From Transport to Initial Start-Up
3.3 Connections
Operating Instructions
Version 1.5
3.3 Connections
3.3.1 Connection Locations VXP+ VAC
Fig. 3-9 Electrical, Compressed Air and Nitrogen Connection Locations
A) Exhaust air connection
B) Inlet interface connection (internal)
C) Power supply connection
D) Outlet interface connection (internal)
E) Nitrogen and compressed air connections (underneath the outlet area)
Attention!
Electrical power may only be connected by personnel who have been ap-
propriately trained and certified.
A
D
B
C
E
Vision XP+ VAC Page 35
3 From Transport to Initial Start-Up
3.3 Connections
Operating Instructions
Version 1.5
3.3.2 Exhaust Air Connection

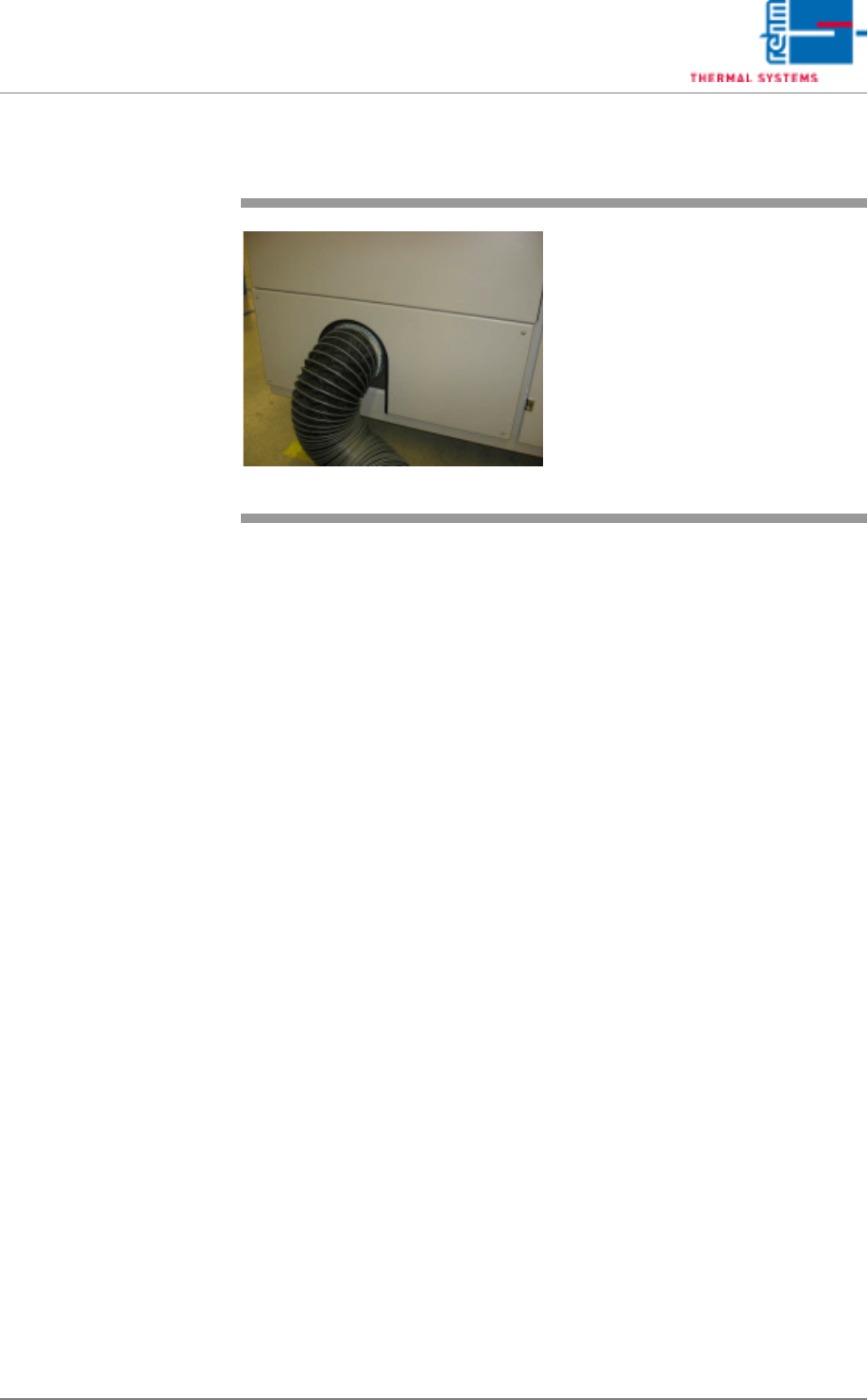

Fig. 3-10 Exhaust air connection
VXP
The exhaust air connector pipe on
the outlet side is intended for con-
nection to the plant exhaust system.
Page 36 Vision XP+ VAC
3 From Transport to Initial Start-Up
3.3 Connections
Operating Instructions
Version 1.5
3.3.3 Electrical Connection

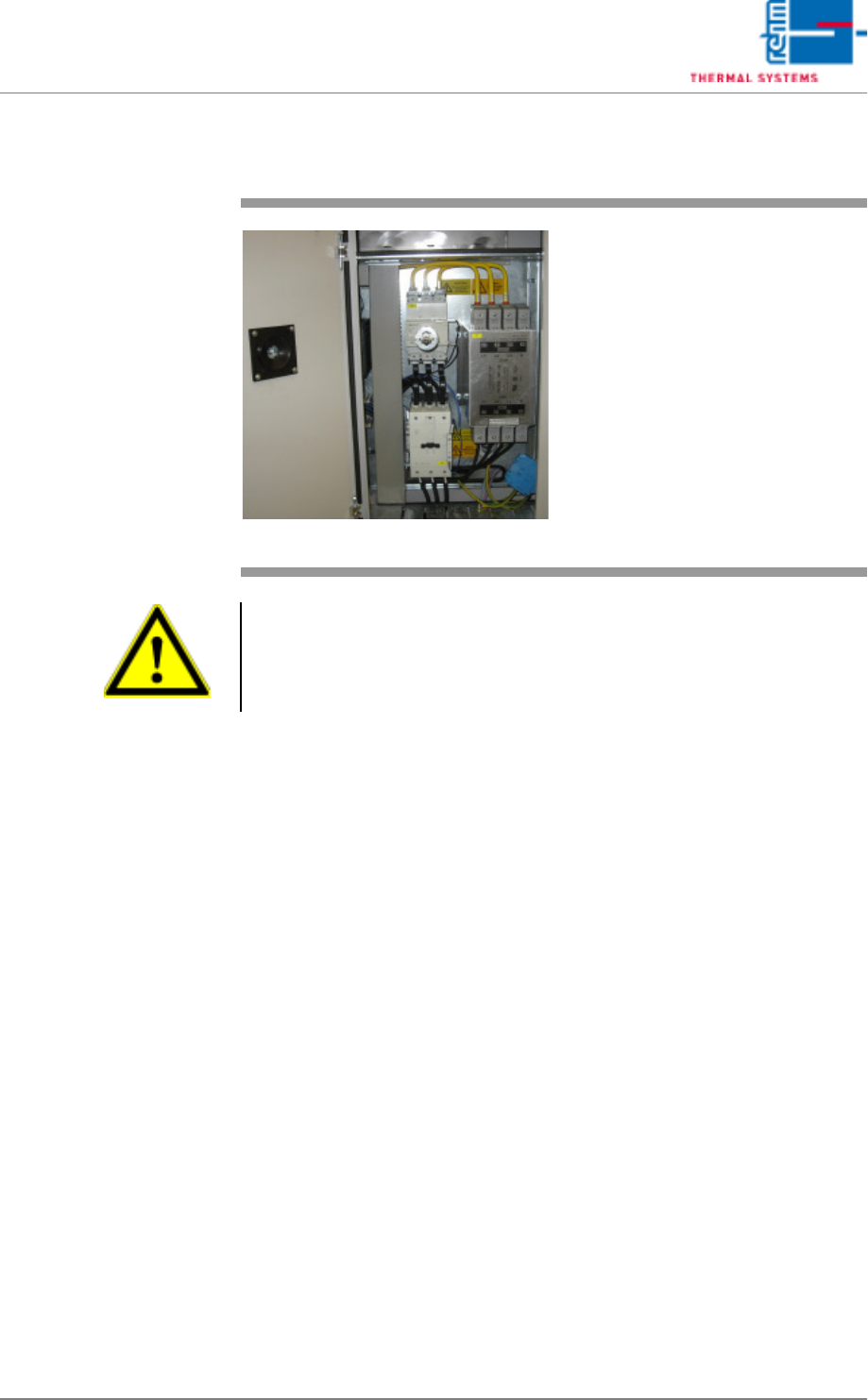

Fig. 3-11 Electrical Connection
Refer to the circuit diagrams for con-
nected loads. The mains connection
must be accordingly fused.
The connected line will be connect-
ed directly to the line filter.
Warning!
The system is operated with mains power. System components conduct life
endangering voltages, even when the mains switch is turned off. Improper
handling of the system may result in death or severe personal injury, as well
as substantial property damage.
