VISION XP+ VAC Page 145
5 Software
5.7 The Maintenance Menu
Operating Instructions
Version 1.5
5.7.3 Maintenance History
Fig. 5-70 Maintenance History
Completed, acknowledged maintenance tasks are displayed here.
A) Date/Time
Point in time at which the maintenance message was acknowledged.
B) Description
Type of maintenance task.
C) Interval
The interval at which a given maintenance task must be repeated.
D) Tolerance
Specified time between generation of the maintenance message and
acknowledgement by the operator.
E) Belt acknowledged
Time span from display of the maintenance message to acknowledge-
ment by the operator.
The maintenance list can be printed out by clicking the Print button.
If one or more messages have been selected (highlighted in blue), they can
be deleted by clicking the Delete button.
The window can be exited without making any further changes by clicking
the Exit button.
A DCB E
Page 146 VISION XP+ VAC
5 Software
5.7 The Maintenance Menu
Operating Instructions
Version 1.5
5.7.4 Maintenance Management
Fig. 5-71 Maintenance Administration
This window provides an overview of all scheduled maintenance tasks.
Scheduled maintenance tasks can be deleted or edited. New maintenance
tasks can be created.
A) Description
Maintenance message text.
B) Interval
Specified time between maintenance task repetitions.
C) Tolerance
Time between generation of the maintenance message and
acknowledgement by the operator is entered here.
D) Keyword Level
Specifies which operators are permitted to acknowledge the message.
A DCB
VISION XP+ VAC Page 147
5 Software
5.7 The Maintenance Menu
Operating Instructions
Version 1.5
Create or Edit a
Maintenance Task

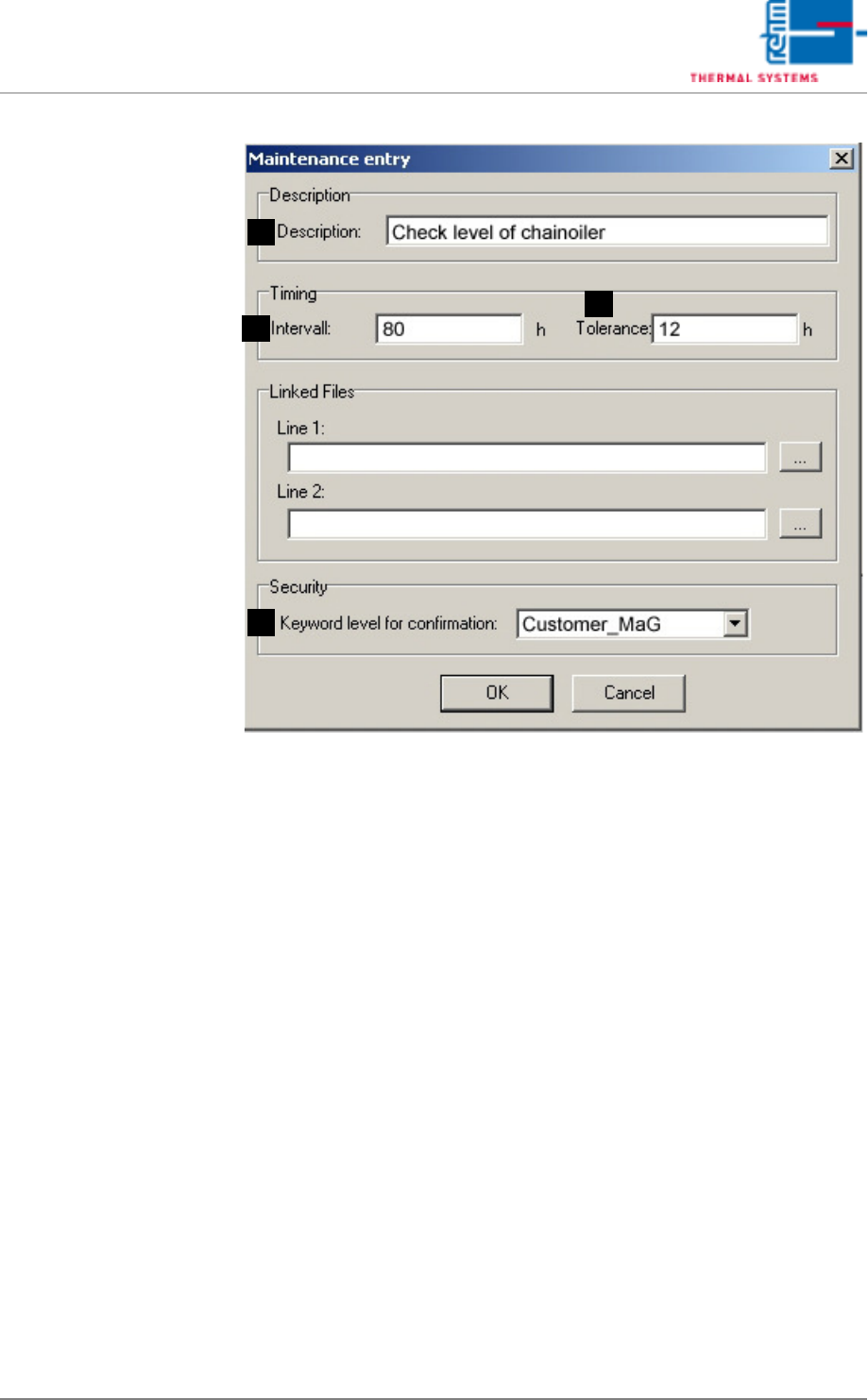

Figure 5 - 72 Create or Edit a Maintenance Task
In order to create a new maintenance task, entries must be made to all of the
fields and acknowledged with OK.
A) Description
Maintenance message text.
B) Interval
Specified time between maintenance task repetitions.
C) Tolerance
Time between generation of the maintenance message and
acknowledgement by the operator is entered here.
D) Keyword Level
Specifies which operators are permitted to acknowledge the message.
A
D
C
B
