V ISION XP+ V AC Page 153 6 Rehm Recorder Operating Instructions V ersion 1.5 6 Rehm Recorder The self-containe d "Rehm Recorder .exe" program is used for the graphical representa tion of gradients. • The measu…
Page 152 VISION XP+ VAC
5 Software
5.10 The Service Menu
Operating Instructions
Version 1.5
VISION XP+ VAC Page 153
6 Rehm Recorder
Operating Instructions
Version 1.5
6 Rehm Recorder
The self-contained "Rehm Recorder.exe" program is used for the graphical
representation of gradients.
• The measurement channels, the data points of which can be assigned
and are measured online (= in real-time), are denoted online recorders.
Refresh cycle information is a key input.
• Graphs are updated automatically on the online recorder.
• A graph recorded can be printed out provided a printer is connected.
Page 154 VISION XP+ VAC
6 Rehm Recorder
6.1 Start screen
Operating Instructions
Version 1.5
6.1 Start screen
The start screen shows three tiles enabling access to the three main areas
of the application.
The "Live Mode"
tile enables data from the controller to be recorded and shown in a chart.
The "File Mode"
tile enables records already recorded to be viewed.
The "Settings"
tile enables basic application settings to be configured.
6.1.1 Start window

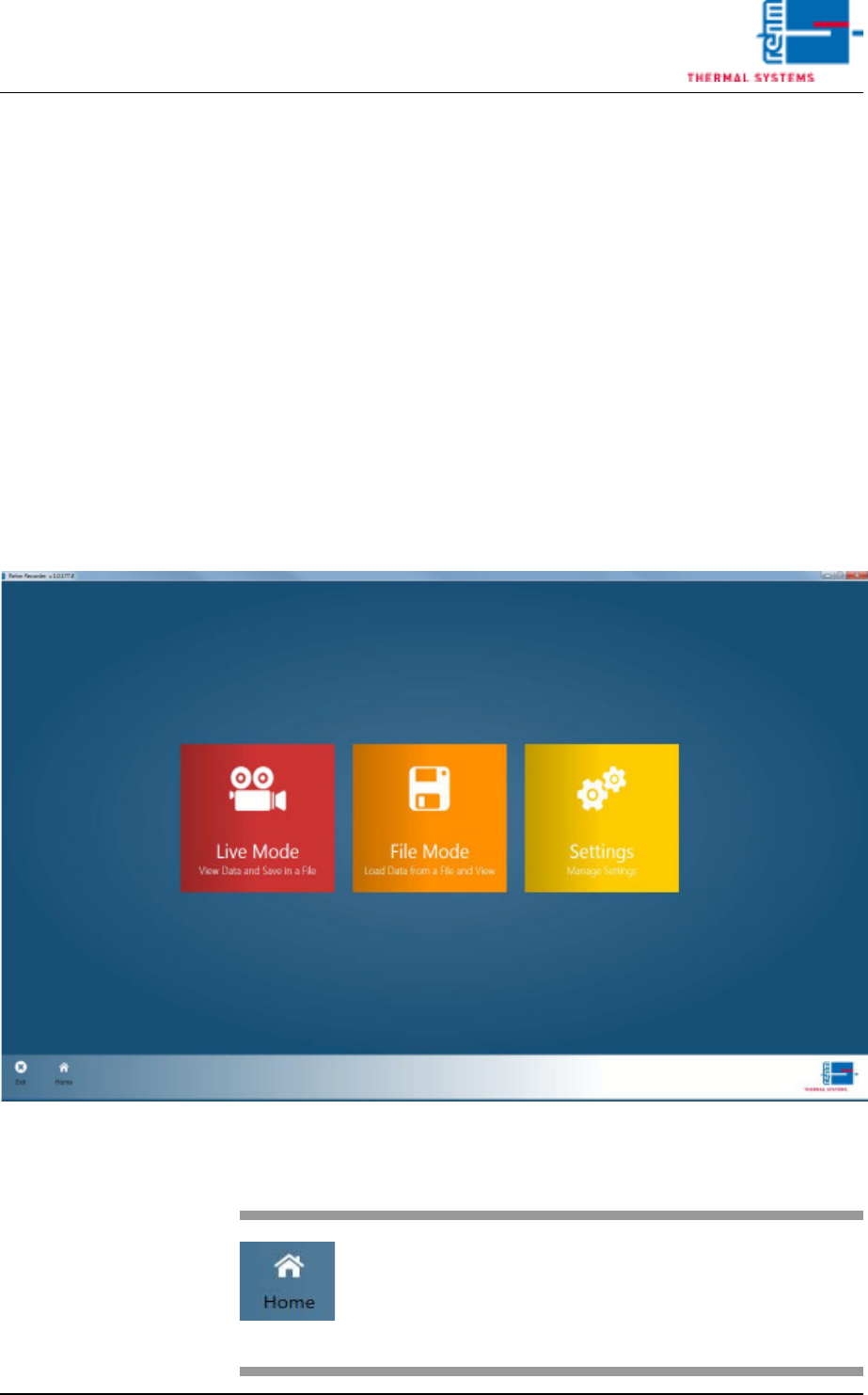

Fig. 6-1 Start window
Fig. 6-2 Home button
The "Home" button is used to re-
turn to the start screen from all
screens.
