Student Guide HS-50 Advanced II 07/2002 Edition
7 X-Axis
15
6DIHW\SUHSDUDWLRQ
3RLQWVWRQRWHEHIRUHVWDUWLQJVHUYLFLQJZRUN
➠
End all placement operations on the placement system.
➠ Disconnect the component table of the gantry concerned, if necessary.
➠ Switch the placement system off at the main switch.
➠ Wait until the operating system has shut down and the UPS has switched off.
➠ Disconnect the placement system from the power supply.
➠ Disconnect the placement system from the compressed air supply.
➠ Switch off the motor contactor in the power supply unit and secure the operating lever with a
padlock.
(1) Turn the operating lever (1) counter-clockwise.
(2) Use the screwdriver to push the locking lug (2) out of the operating lever (1).
(3) Secure the operating lever with a padlock (3).
07/2002 Edition Student Guide HS-50 Advanced II
7 X-Axis
16
– The Tag Out alternative:
If a machine can be locked out, it must be. However, there are situations where energy isolat-
ing devices can not accommodate locks. In these cases, the energy isolating devices must be
tagged to warn employees that the machine is de-energized for servicing. The tag must be se-
curely fastened, it must be placed in a position visible to all and it may only be removed by the
person who attached it.
WARNING
To avoid damaging the collect&place head, ALWAYS observe the following points when mov-
ing the gantry:
– NEVER move the gantry by pushing with your hands against the collect&place head.
– NEVER push the gantry while the Z-axis is lowered.
– Take hold of the cast iron part of the X-axis - ideally near the X-axis toothed belt deflection
pulley - and then move the gantry.
Student Guide HS-50 Advanced II 07/2002 Edition
7 X-Axis
17
5HSODFLQJVSDUHSDUWV
5HSODFLQJWKHHODVWRPHULFVSULQJ
7RROVDQGHTXLSPHQW
– Set of DIN 911 Allen keys
3DUWV
25x10.5x50 elastomeric spring, from item number 00301040-01
5HPRYLQJWKHHODVWRPHULFVSULQJ
➠ Switch the placement system off and secure it to prevent switching on again.

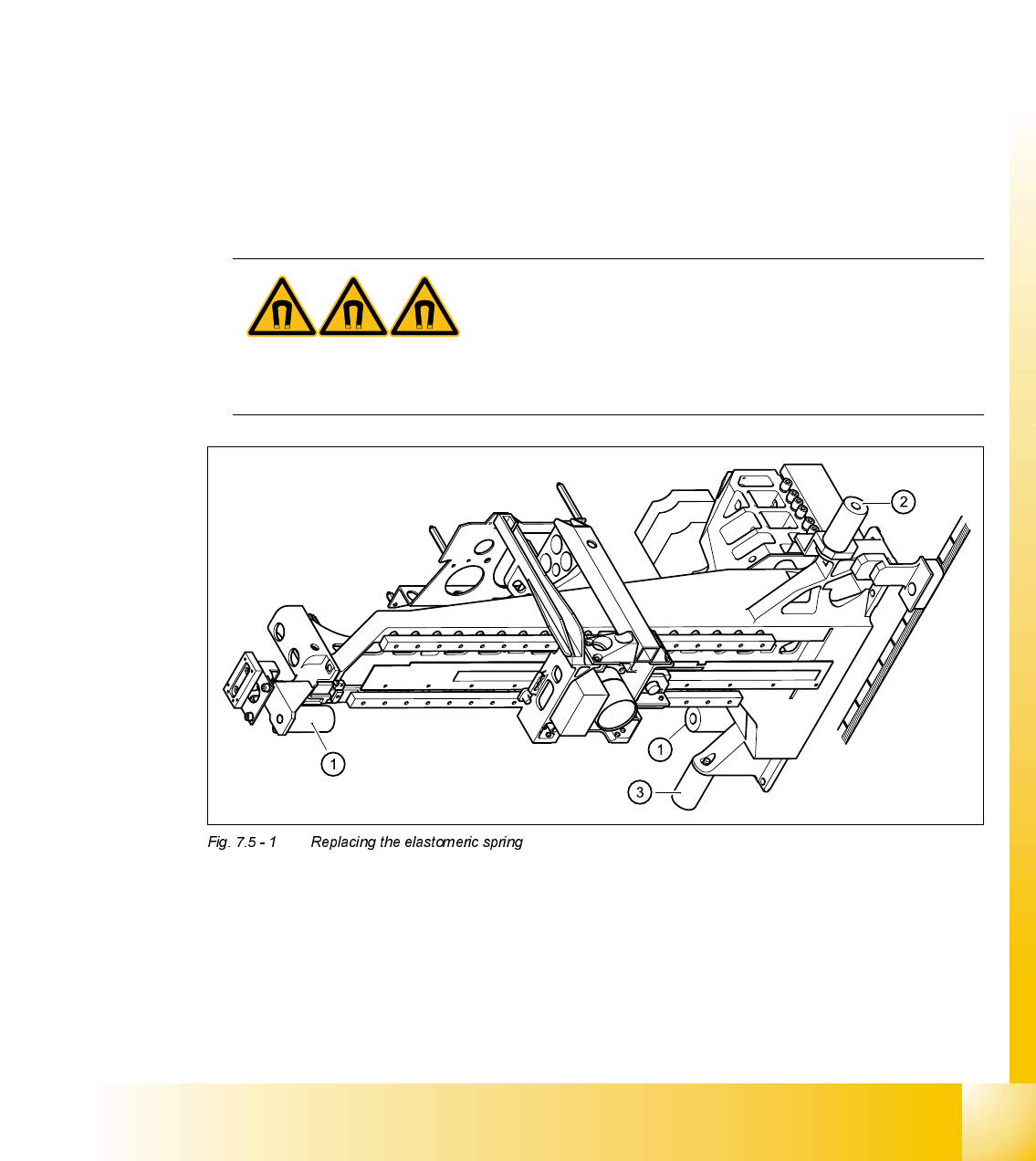

DANGER POWERFUL MAGNETIC FIELD
Always follow the special safety instructions when working in the vicinity of powerful magnetic
fields.
1 Elastomeric springs for the X-gantry
2 Gantries 1 and 3: elastomeric spring for the Y-axis
Gantries 2 and 4: reflecting bracket instead of elastomeric spring
3 Gantries 1 and 3: elastomeric spring for the Y-axis
Gantries 2 and 4: item 3 canceled
