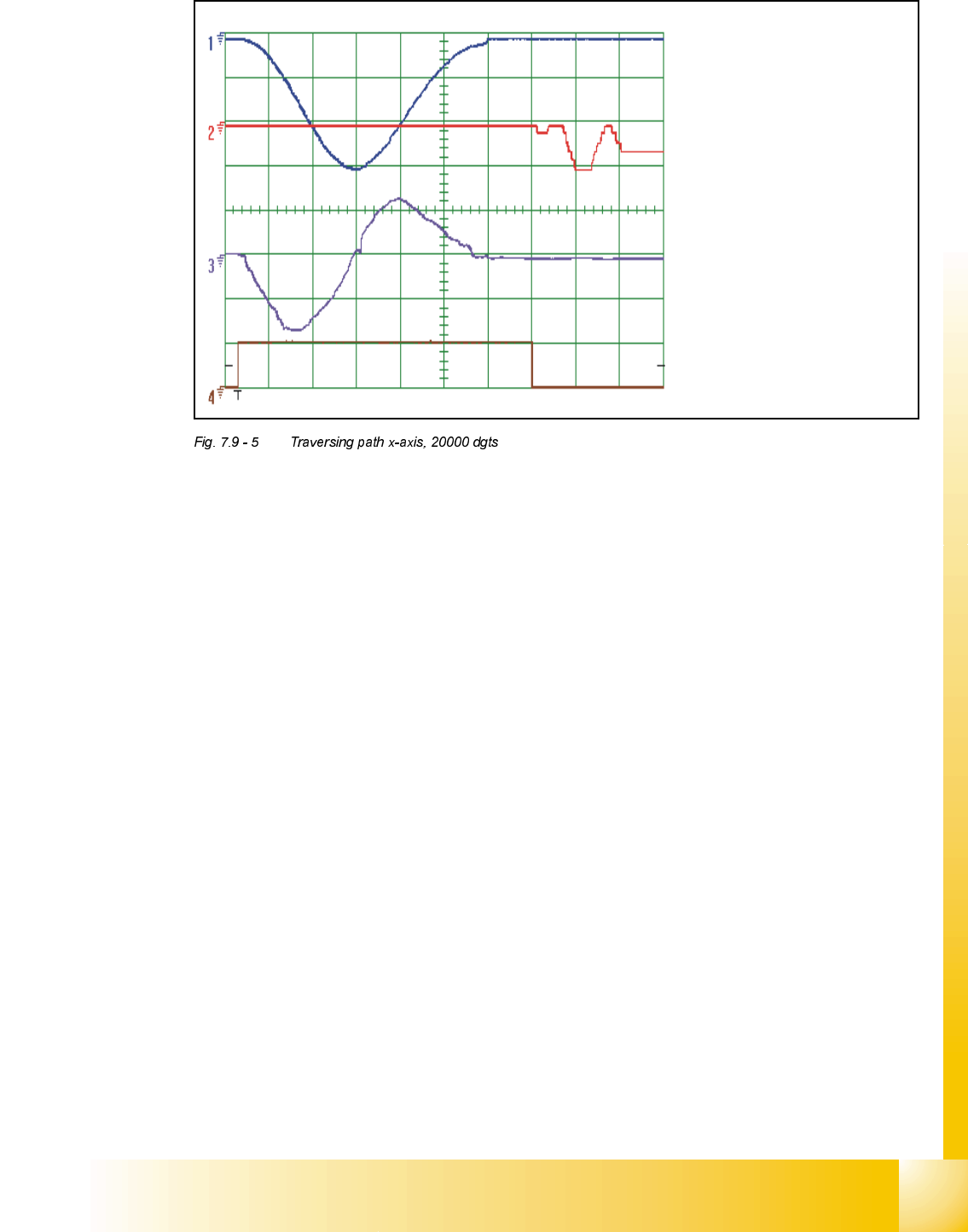

– If you adjusted the dynamics of the x-axis correctly, each individual signal will be displayed as
shown in . and .
Sollwert /
Vnominal
Positionsabweichung
/
deviation of position
Kraftsollwert /
nominal current
Endemeldung /
end signal
