07/2002 Edition Student Guide HS-50 Advanced II
11 DP-Axis
6
5HSODFLQJVSDUHSDUWV
5HSODFLQJWKHWXUQLQJVWDWLRQ
7RROVDQGHTXLSPHQW
– Set of DIN 911 Allen keys
– SITEST program
3DUWV

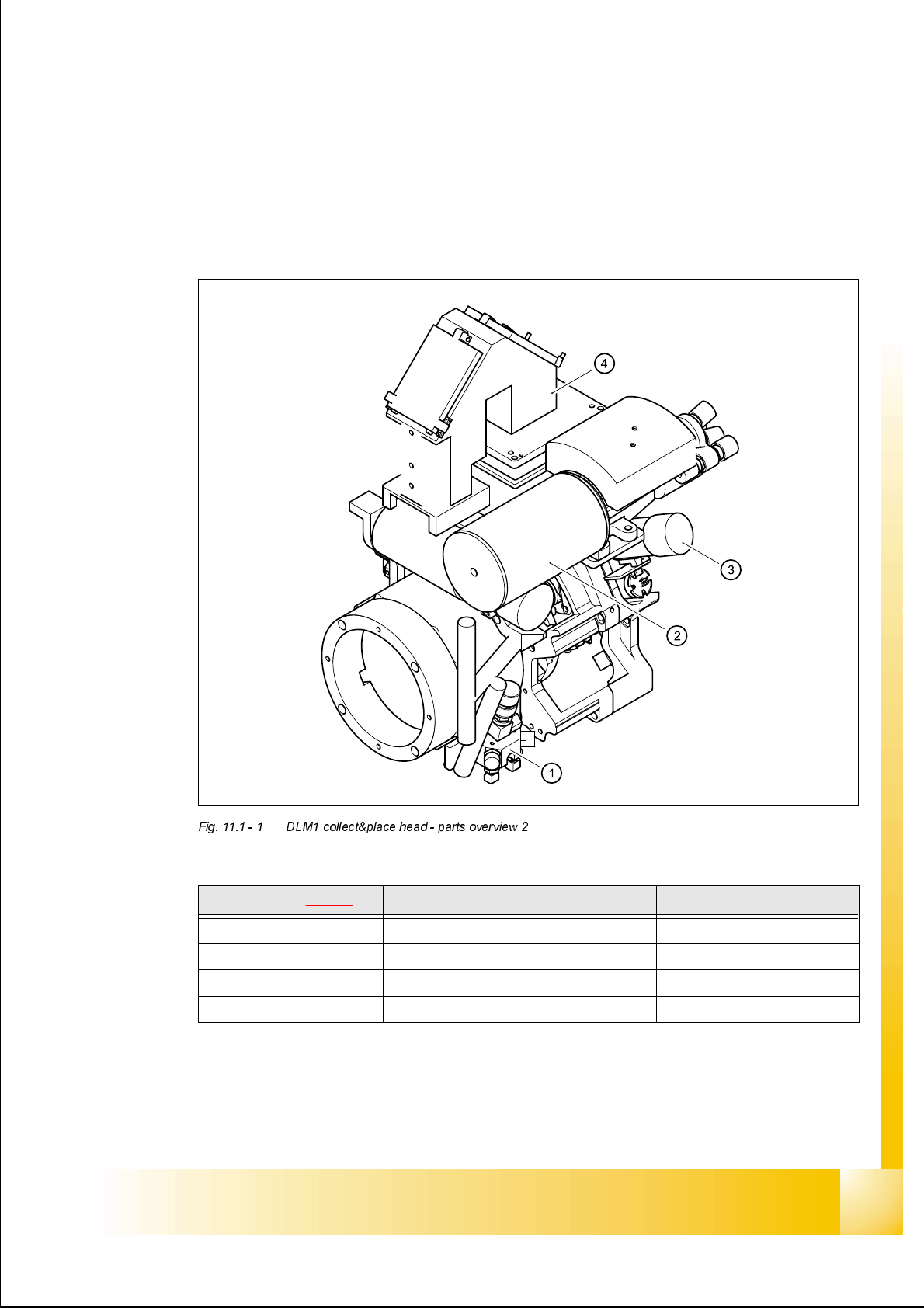

Turning station / DLM1, item no. 00341780-01
'LVPDQWOLQJWKHWXUQLQJVWDWLRQ
➠ Switch the placement system off and secure it to prevent switching on.

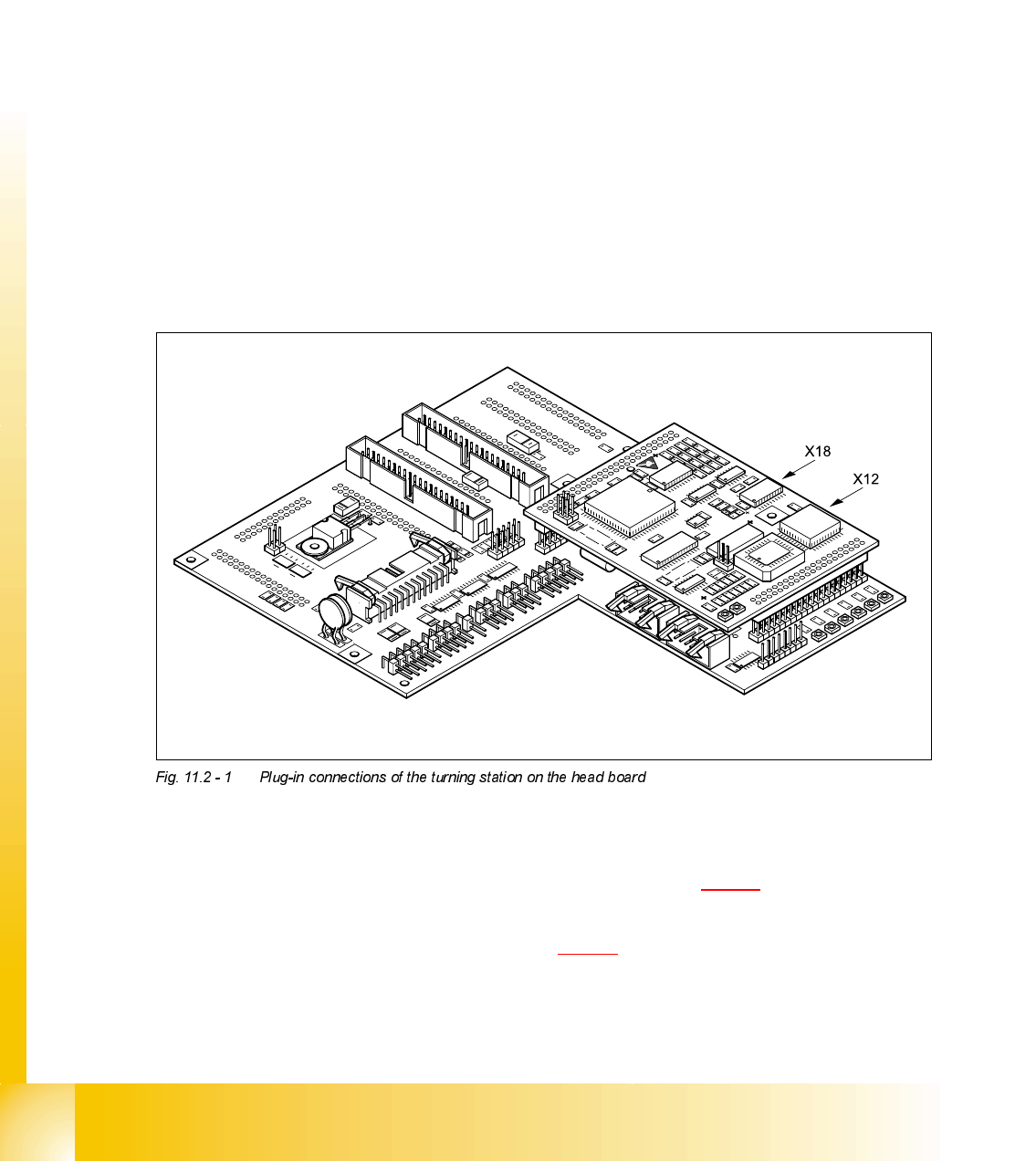

➠ Remove the plugs from sockets X12 and X18 on the head board.
➠ Push the collect&place head until it reaches the stopper on the deflection roller of the X-axis
toothed belt.
➠ Undo the M3x25 hexagon socket-head screw (see item 2 in Fig. 11.2 - 2) on the rear panel of
the back part.
➠ Carefully pull the turning station (item 1 in Fig. 11.2 - 2) back and remove.
Student Guide HS-50 Advanced II 07/2002 Edition
11 DP-Axis
7

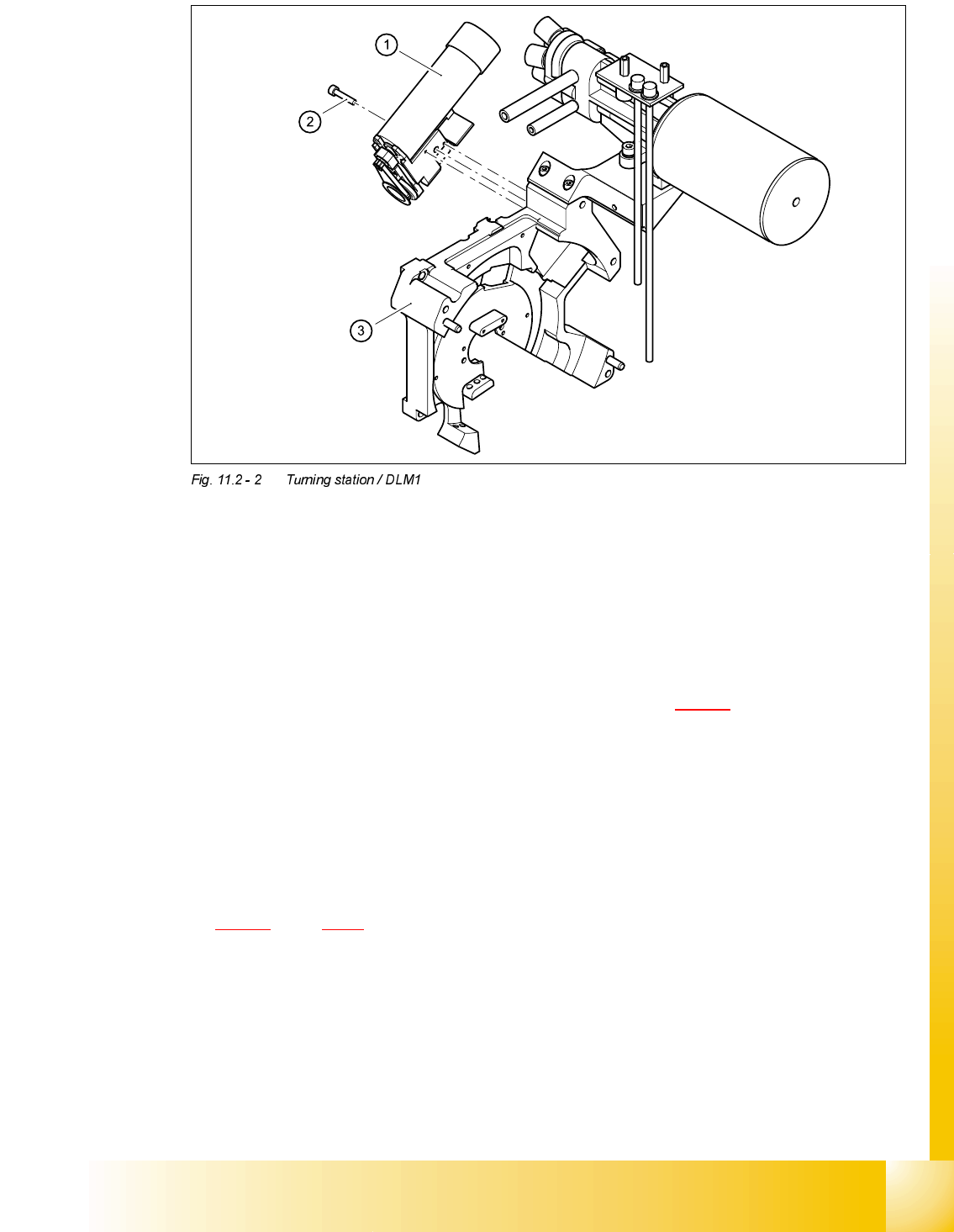

(1) Turning station / DLM1
(2) M3x25 hexagon socket-head screw
(3) Back part of the collect&place head
)LWWLQJWKHWXUQLQJVWDWLRQ
➠ Make sure that the contact surfaces of the turning station and rear panel are clean.
➠ Insert the M3 x 25 hexagon socket-head screw (item 2 in Fig. 11.2 - 1) into the hole in the
centering station.
➠ Run the cable between the vacuum hose and the vacuum generation socket.
➠ Place the holes in the turning station on the parallel pins.
➠ Carefully push the turning station towards the back part until it reaches the stop.
➠ Fix the turning station with the hexagon socket-head screw.
➠ Plug the cable into sockets X12 and X18 on the head board (see item X12 and X18 in Fig.
11.2 - 1
, page 11 - 6.
6HWWLQJV
➠ Switch the placement system on and start it up.
➠ Use the SITEST program to run a function test.
