Student Guide HS-50 Advanced II
12 Special handling for the Z-axis Edition 07/2002
16
&RQWDFWOHVVFDOLEUDWLRQDQGSLFNXSLQPRGH6ORZVWDUW
6LJQDOVIURPWRSWRERWWRP
Positional deviation: 200 mV 20 ms
Force signal: 5 V 20 ms
Iactual: 5 V 20 ms
Vtarget: 5 V 20 ms
End signal: 5 V 20 ms

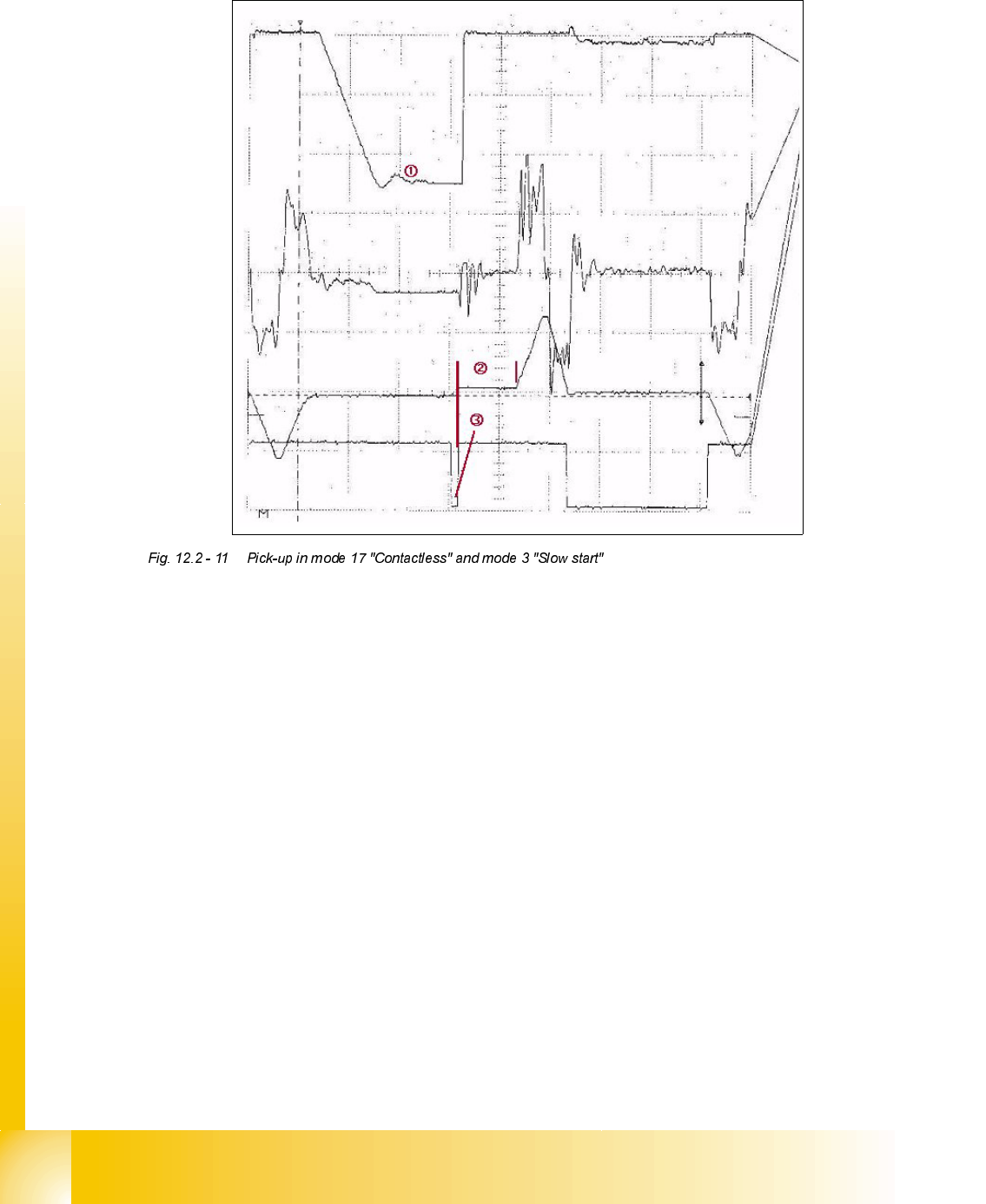

"Contactless" mode 17 was used for pick-up here.
With the "Pick-up without contact" option activated, the height was calibrated during the first pick-
up operation
by pressing the component onto the PCB using force level 5 (about 55 digits).
Travel started at start speed for 44 digit path.
You can tell that the vacuum has been switched on when the light barrier is at the top due to
the wait time of about 2 ms on the component.
Combination for package forms that are to be picked up without contact, but that may fall off when
accelerating upwards due to their weight. The parameters do NOT affect each other. Can also be
combined with the "Early vacuum" option.
Student Guide HS-50 Advanced II
Edition 07/2002 12 Special handling for the Z-axis
17
&RQWDFWOHVVSLFNXSDQGSLFNXSLQPRGH6ORZVWDUW

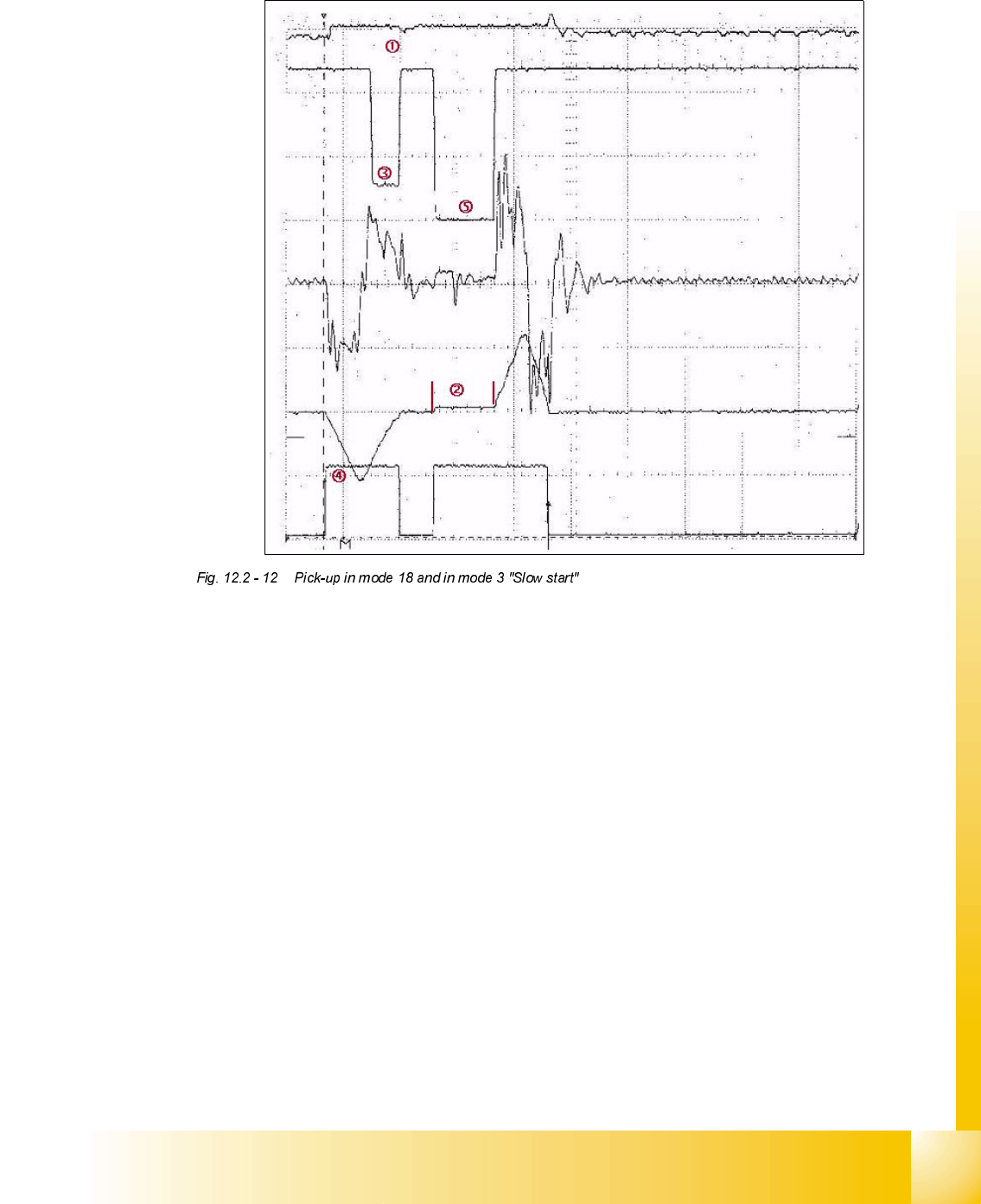

With the "Pick-up without contact" option activated, the component was picked up at the calibrated
pick-up height.
6LJQDOVIURPWRSWRERWWRP
Positional deviation: 200 mV 20 ms
Force signal: 5 V 20 ms
Iactual: 5 V 20 ms
Vtarget: 5 V 20 ms
End signal from the oscilloscope memory
Absolute positioning: The counting of the positional deviation below is not started.
The time spent over the component is the result of switching on the vacuum.
The force is reduced during the braking phase
and also when beginning to move upwards.
The positioning operation takes about 25 ms when moving up.
Student Guide HS-50 Advanced II
12 Special handling for the Z-axis Edition 07/2002
18
3LFNXSZLWKDGGLWLRQDOZDLWWLPH

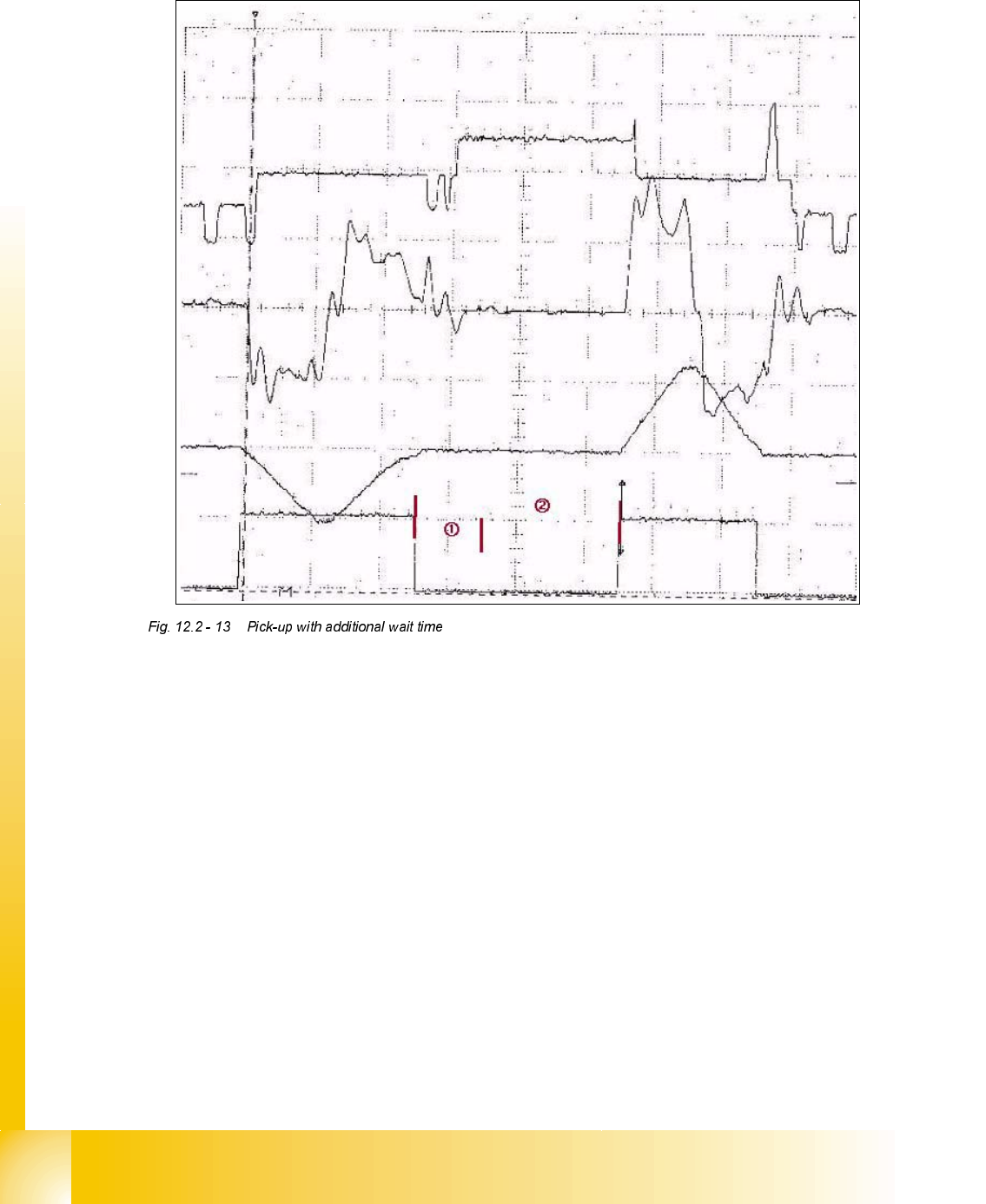

The component was picked up using the "standard mode".
6LJQDOVIURPWRSWRERWWRP
Positional deviation: 200 mV 10 ms
Iactual: 5 V 10 ms
Vtarget: 5 V 10 ms
End signal: 5 V 10 ms
The time that the nozzle waits in the feeder when it is on the component can be programmed when
picking up components from special feeders.
Can be combined as desired with all other pick-up modes.
The switching process for the vacuum takes about 10 ms
Additional wait time over the component. The resolution for this time is somewhat fuzzy due to the
reaction time of the system.
