Student Guide HS-50 Advanced II 07/2002 Edition
10 Star Axis
7
5HSODFLQJVSDUHSDUWV
5HSODFLQJWKHVWDUGULYH
7RROVDQGHTXLSPHQW
– Set of DIN 911 Allen keys
– Gauge for the star (collect&place head / DLM1), article number 00326164-01
– Power pack for the collect&place head / DLM1, article number 00353277-01
– Tray for transporting the collect&place head
– Laboratory gloves
3DUWV
Star drive, digital / DLM1, article number 00337571-01
'LVPDQWOLQJWKHVWDUGULYH
➠ Dismantle the intermediate terminal block.
➠ Dismantle the front part of the collect&place head.
➠ Dismantle the star.
➠ Undo the four M5x16 hexagon socket head screws (item 2 in Fig. 10.2 - 1).
➠ Lift the star drive off the front part of the collect&place head.
)LWWKHVWDUGULYH
➠
Place the star motor on the front part of the collect&place head so that the connecting cable
for the star drive points to the position marked (A) in Fig. 10.2 - 1
.
➠ Fix the star drive in place with the four M5x16 hexagon socket head screws (item 2 in Fig. 10.2
- 1).
➠ Fit and adjust the star.
➠ Fit the front part of the collect&place head.
07/2002 Edition Student Guide HS-50 Advanced II
10 Star Axis
8

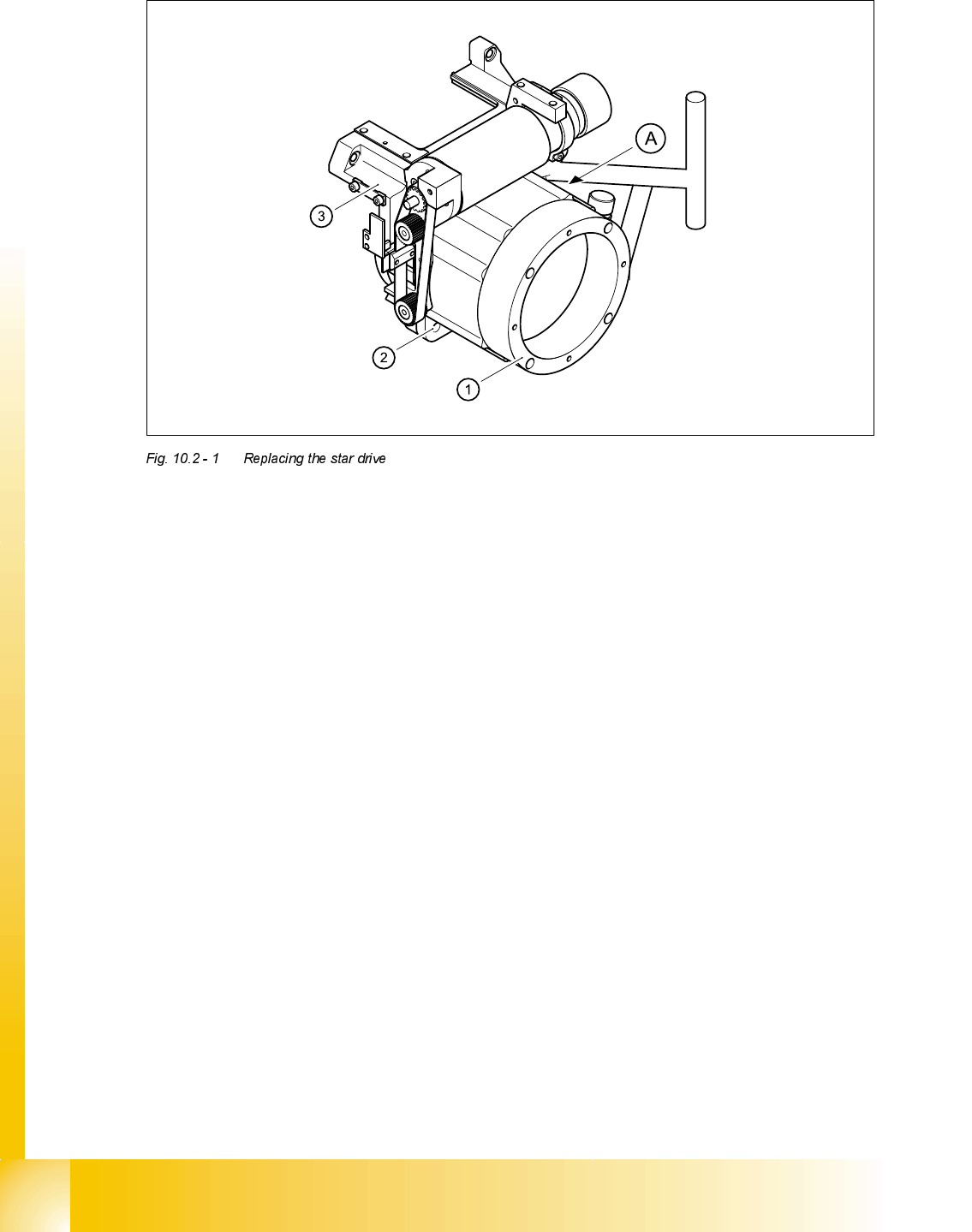

(1) Star drive, digital / DLM1
(2) M5x16 hexagon socket head screws, 4x
(3) Front part of collect&place head
(A) Connecting cable for the star drive on this side
Student Guide HS-50 Advanced II 07/2002 Edition
10 Star Axis
9

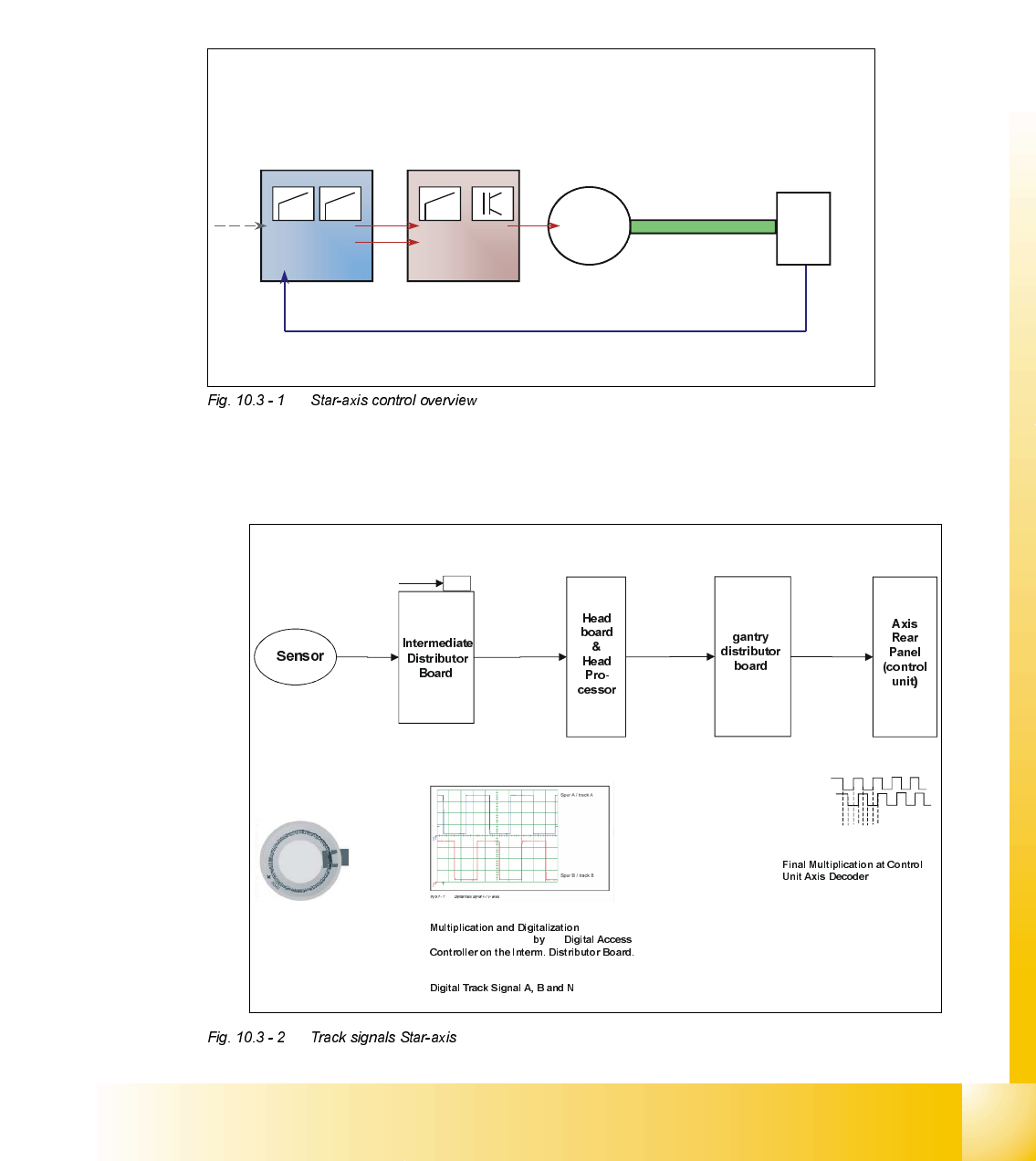

6WDUD[LVFRQWURORYHUYLHZ
%DVLFFRPSRQHQWVRIWKH6WDUD[LVGULYH
An axis controller, a servo amplifier and a motor generates all Star axis movements in the machine
controlled by the track signals.
7UDFNVLJQDOV
A axis controller,a servo amplifier and a axis drive generate all movements in the machine.
Digital axis
controller
Analog servo
amplifier
Axis drive 3 phase AC
digital position
detection with feed
back loop
SIPLACE HS50-machines have on each gantry three of this 3 phase AC - axes. (X-Y-Star)
M
3~
Track signals
Incremental
encoder
Track Signal - Star Axis (not adjustable)
X12as
(2) A
(5) B
(1) GND
(7) +5V
(8) N
X2as X13ac
(39) A
(38) A not
(36) B
(35) B not
(33) N
(32) N not
Rotor
Scale
(3600 ticks / 360° of scale)
A
B
(zero
pulse) sent to Interm. Distributor Board.
of the Analogue
Track Signals A, and B
the
(Multiplication by a factor of 10 for Digital Conversion)
12341234…..
X15
Connection for Track
Signal Test Box
Sensor
X4ac X4aa
(33) A
(32) A not
(30) B
(29) B not
(27) N
(26) N not
3.6 Vpp
X28aa X5tk
(2) A
(3) A not
(5) B
(6) B not
(8) N
(9) N not
.
(Multiplication by factor of 4)
End Result:
(3600) x (25) x (4) =
144,000 pulses / 360
°
Therefore ....
1 digit = 0.0025°
