13. Offline Changeovers
Edition 2.0 98 CP-7-series Verification System Instruction Manual
13. Offline Changeovers
13.1 Overview
Offline changeovers can be performed to reduce the time required for parts supply and
changeovers.
A device table which has been verified (Verification operation) in advance is readied as a
replacement for the device table which is currently being used on the machine, and the
replacement occurs when a parts supply or changeover is required. This eliminates the need
for individual reel maintenance or exchange at parts supply and changeover operations, and
enables the entire setup to be completed simply by replacing the device table, resulting in
faster operation. A verification needs to be performed for the replacement device table by
using the barcode reader connected to Fujitrax Verifier.
When loading this table onto the machine, the operator must use the Handy Terminal to read
the pallet ID which is affixed to the pallet.
The machine checks with Fujitrax Verifier to see if verification has been completed for this ID,
and then proceeds in accordance with the check result.
13. Offline Changeovers
Edition 2.0 99 CP-7-series Verification System Instruction Manual
13.2 Operation Conditions
The following conditions must be satisfied at Fujitrax Verifier in order to mount a verified
device table on the machine without error.
• One of the following part verification system settings must be specifed: [Use Handy
Terminal], [Use Setup Sensor and LED] and [Use Fujitrax Verifier].
• Verification of the pallet must be completed at Fujitrax Verifier.
13.3 Mounting the Device Table
1. Use Fujitrax Verifier to ready a verified (Verification operation) device table.
2. Place the readied device table near the machine.
3. At the PDT-3100’s [Main Menu], select [PALLET SUPPLY].
At the Handy Scanner’s [Main Menu], select [UNIT SUPPLY].
PDT-3100’s Main Menu
Handy Scanner’s Main Menu
ENTER
[MAIN MENU]
1. VERIFY CHECK
2. PRE VERIFY CHECK
3. SET VERIFY RECIPE
4. PALLET SUPPLY
5. TEST READ
SELECT NO.=v
▼▲
CP7V0025
13. Offline Changeovers
Edition 2.0 100 CP-7-series Verification System Instruction Manual
4. At Fujitrax Verifier, select whether the device table Verification operation was based on
the current production recipe or the next production recipe. (If the next production
recipe is not selected, only the current production recipe name displays.)

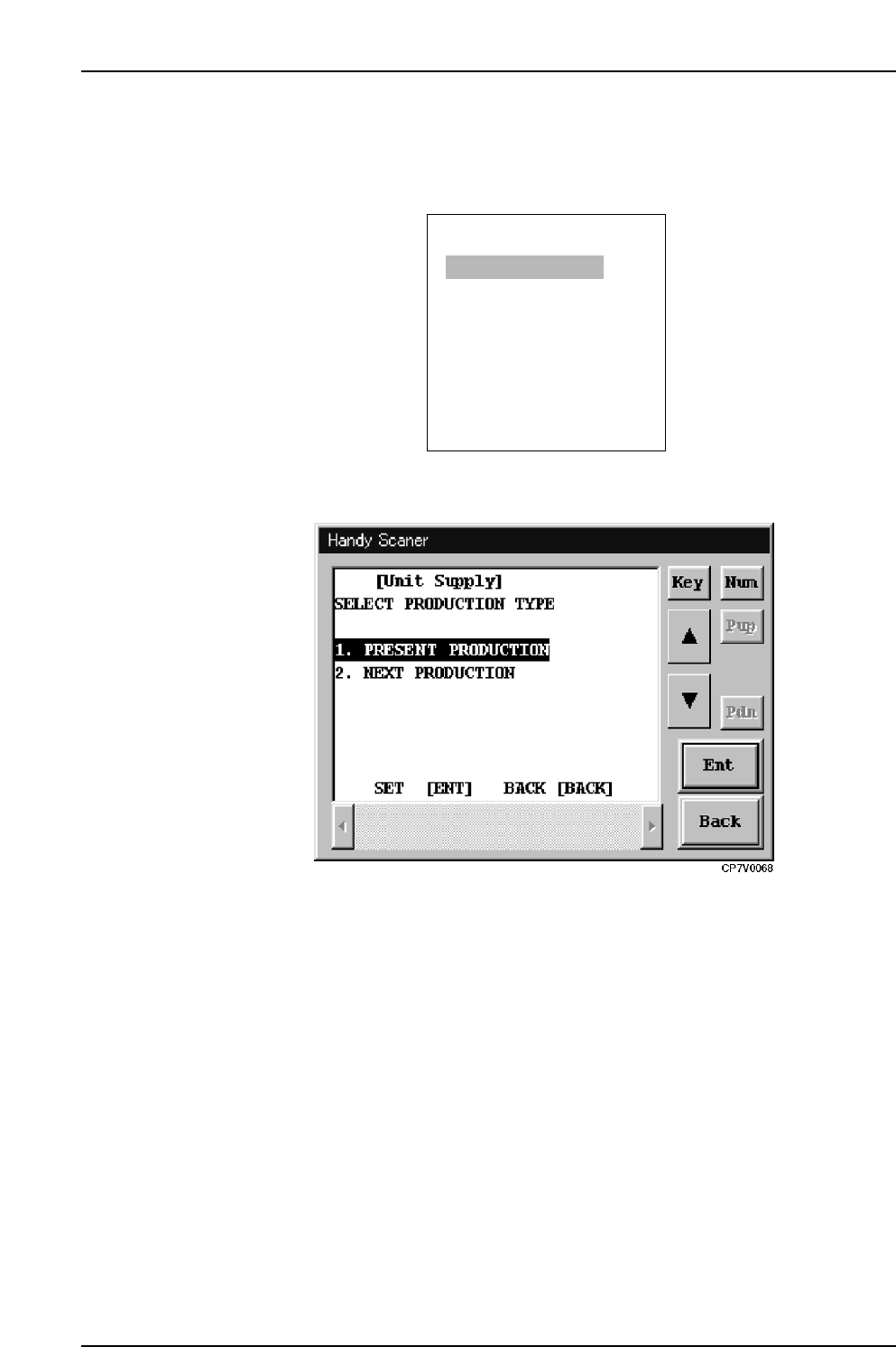

PDT-3100’s Pallet Supply Selection Screen
Handy Scanner’s Pallet Supply Selection Screen
ENTER/QUIT:
[PALETTE SUPPLY]
Fore :Recipe1
Pre :Recipe2
▼▲
CP7V0026a
▼
▼
