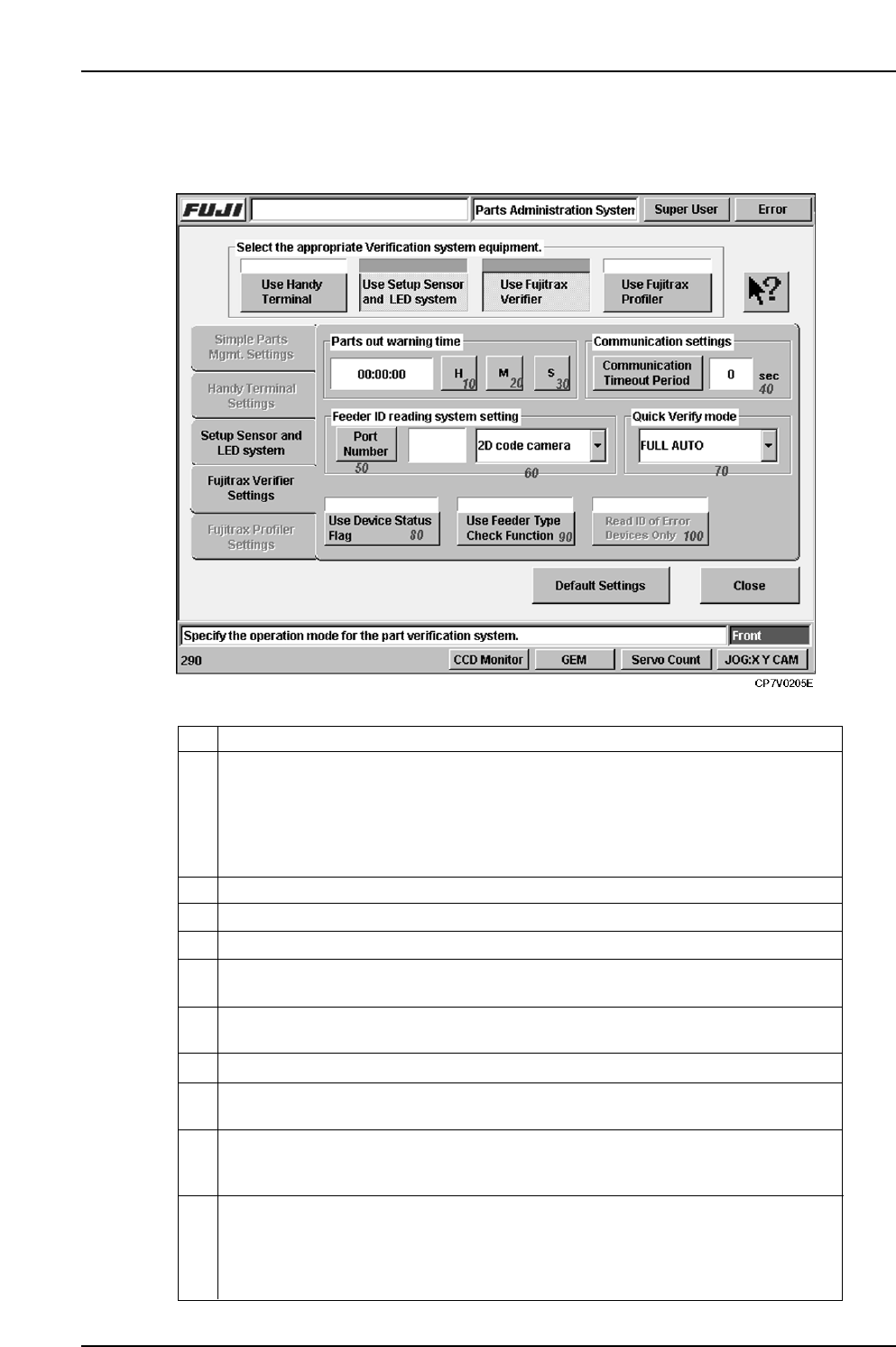

6.5 Fujitrax Verifier Settings Tab
The setting items contained in the [Fujitrax Verifier Settings] tab are described below.
10
Specifies the time for issuing a parts-out warning to the operator. The system
estimates when a given reel will run out of parts based on the reel s remaining parts
count, the number of parts used in that recipe, and the amount of time required to
place parts on a single board during production. The time specified by this setting
determines how many minutes prior to an estimated parts-out condition
Fujitrax Verifier is to issue the parts-out warning.
Specifies the minutes time for a parts-out warning.20
Specifies the communication port number to which the feeder ID read system is
connected.
40
Specifies the time-out period which applies to communications with Fujitrax Verifier.
50
80
This function determines whether the previously registered feeder status (stored in
Fujitrax Verifier) is reflected at the machine when reading feeder IDs.
70
Specify the Quick Verify mode from a choice of Standard , DC Auto or Full Auto .
ExplanationNo.
Specifies the seconds time for a parts-out warning.
30
60
Select the ID reading system from the drop down menu. A barcode and 2D code
camera selection is available.
90 This function is used to compare the tape width and pitch information etc. gathered
when reading the feeder ID and compare it with the data registered in the production
program.
In the case where only the Fujitrax Verifier option is used, it is not possible to
determine the load status of feeders, therefore a feeder check is performed upon the
start of auto operation.
When using this function, subsequent reading of the feeder ID is not performed for
those feeders for which an error has not occurred.
100
VT007Eb
6. Settings
Edition 2.0 31 CP-7-series Verification System Instruction Manual

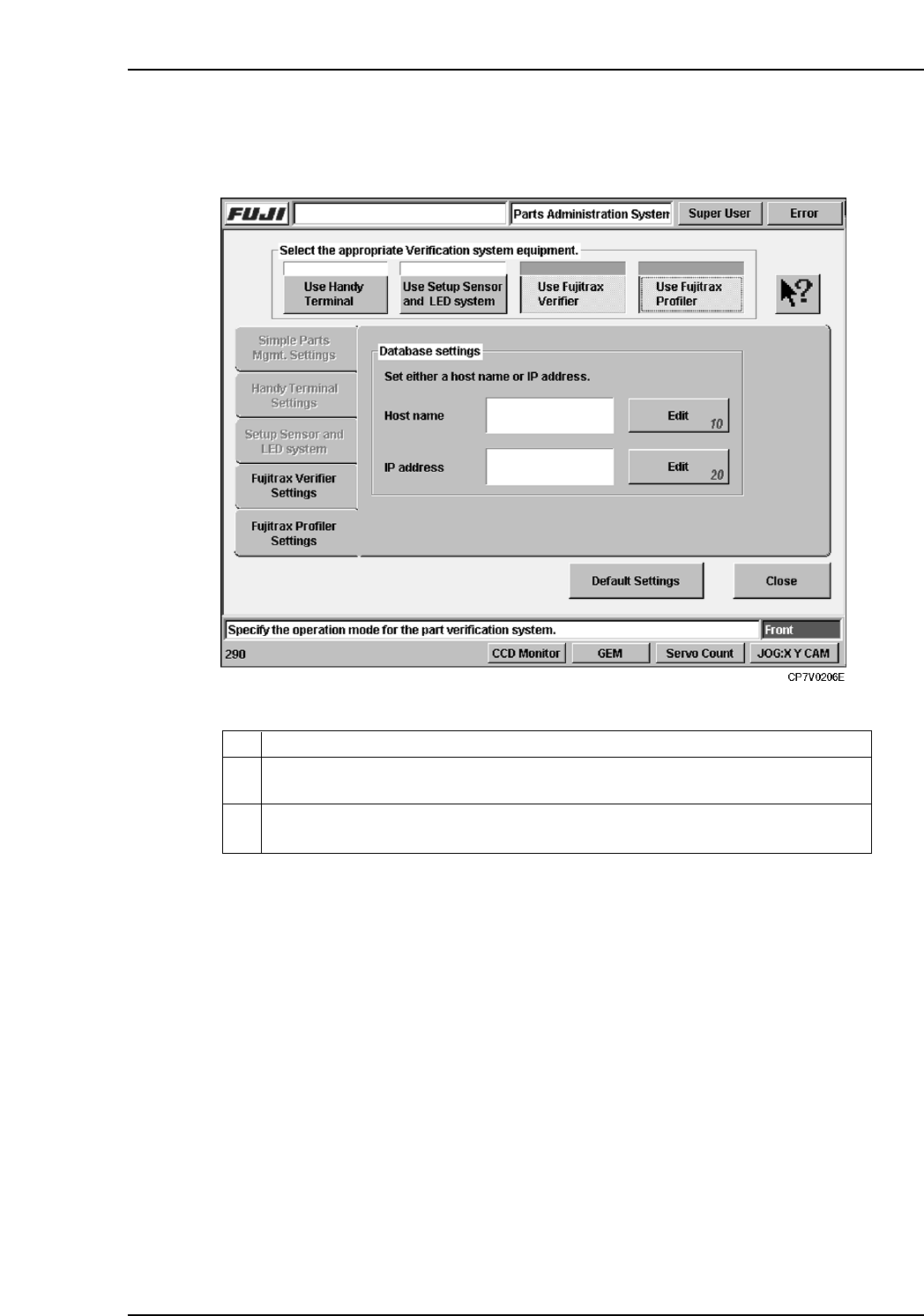

6.6 Fujitrax Profiler Settings Tab
The setting items contained in the [Fujitrax Profiler Settings] tab are described below.
10
Specifies the Fujitrax Profiler host name. Specify either a host name or an IP
address (not both).
Specifies the IP address of the Fujitrax Profiler host. Specify either a host name or
an IP address (not both).
20
ExplanationNo.
VT009E
6. Settings
Edition 2.0 32 CP-7-series Verification System Instruction Manual

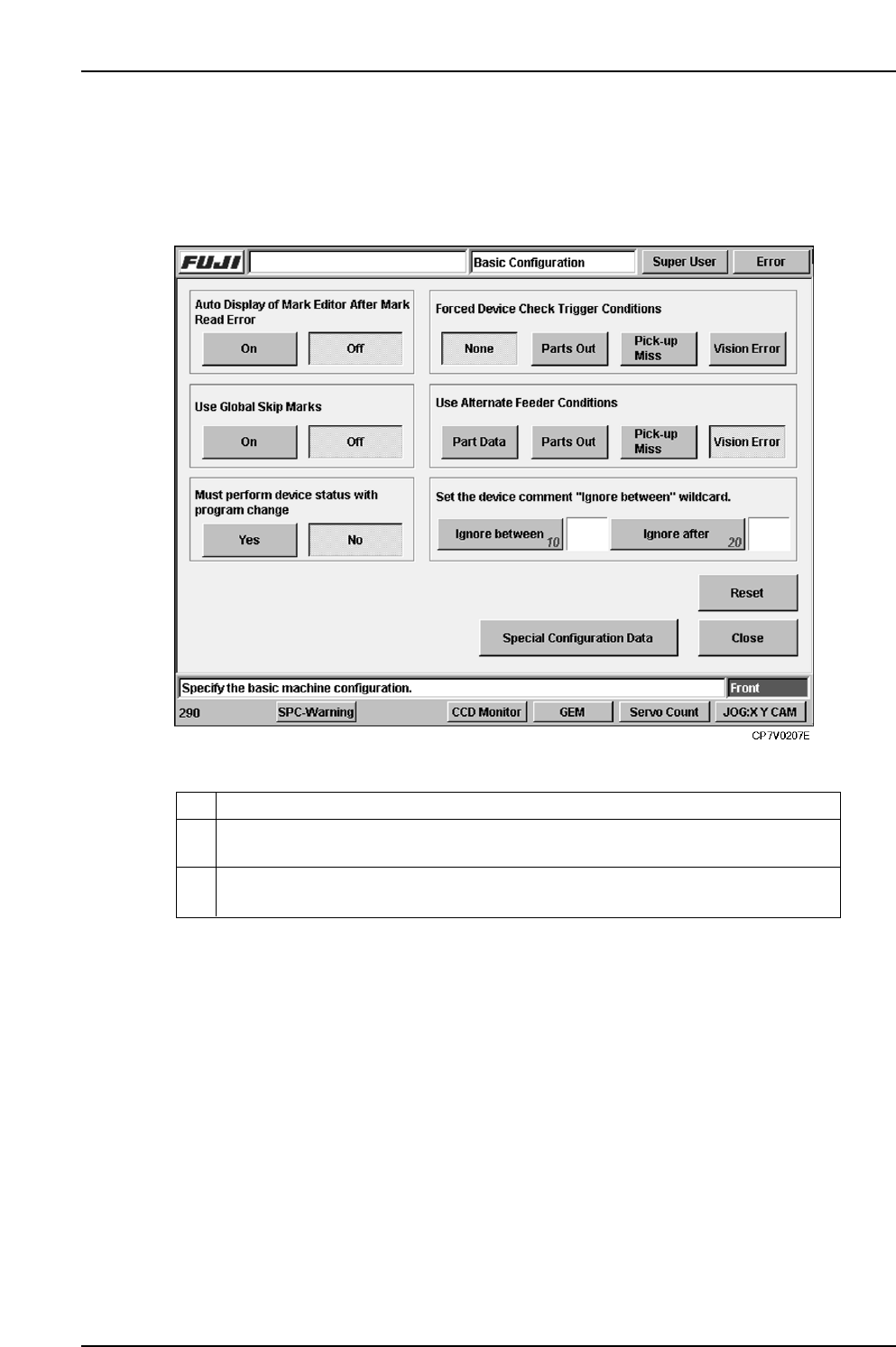

6.7 Wildcard Setting
The device comment wildcard character to be used can be specified at the [Basic
Configuration] screen which can be displayed by selecting the following:
[Maintenance] - [Configuration] - [Basic].
10
Specifies the wildcard character used to enclose a part of the device comment
character string which is to be ignored.
Specifies the wildcard character which indicates that all the subsequent device
comment character string is to be ignored.
20
ExplanationNo.
