5. Explanation of Functions
Edition 2.0 19 CP-7-series Verification System Instruction Manual
5.2.3 Manual Permission / Escape Permission
This function can be used to exempt a specified slot from the verification operation.
“Manual permission” can be specified for each slot, and “escape permission” can be
specified for each stage.
The device in an “exempt” slot (manual/escape permission) can be used in production
even though it has not undergone a verification operation by Handy Terminal and
Fujitrax Verifier.
Therefore, exempt devices (manual/escape permission) cannot be guaranteed to contain
the correct parts.
Moreover, when using Fujitrax Verifier, exempt devices will not be subject to Fujitrax
Verifier functions such as the “remaining parts count administration” and “feeder
maintenance administration” functions.
As the main purpose of the part verification system is to prevent the wrong parts from
being loaded, use of this “permission” function is not generally recommended.
The “permission” function should be used only as a temporary measure, such as when
the barcode printer fails, making it impossible to print out the required barcode labels
for the reels, etc.
5. Explanation of Functions
Edition 2.0 20 CP-7-series Verification System Instruction Manual

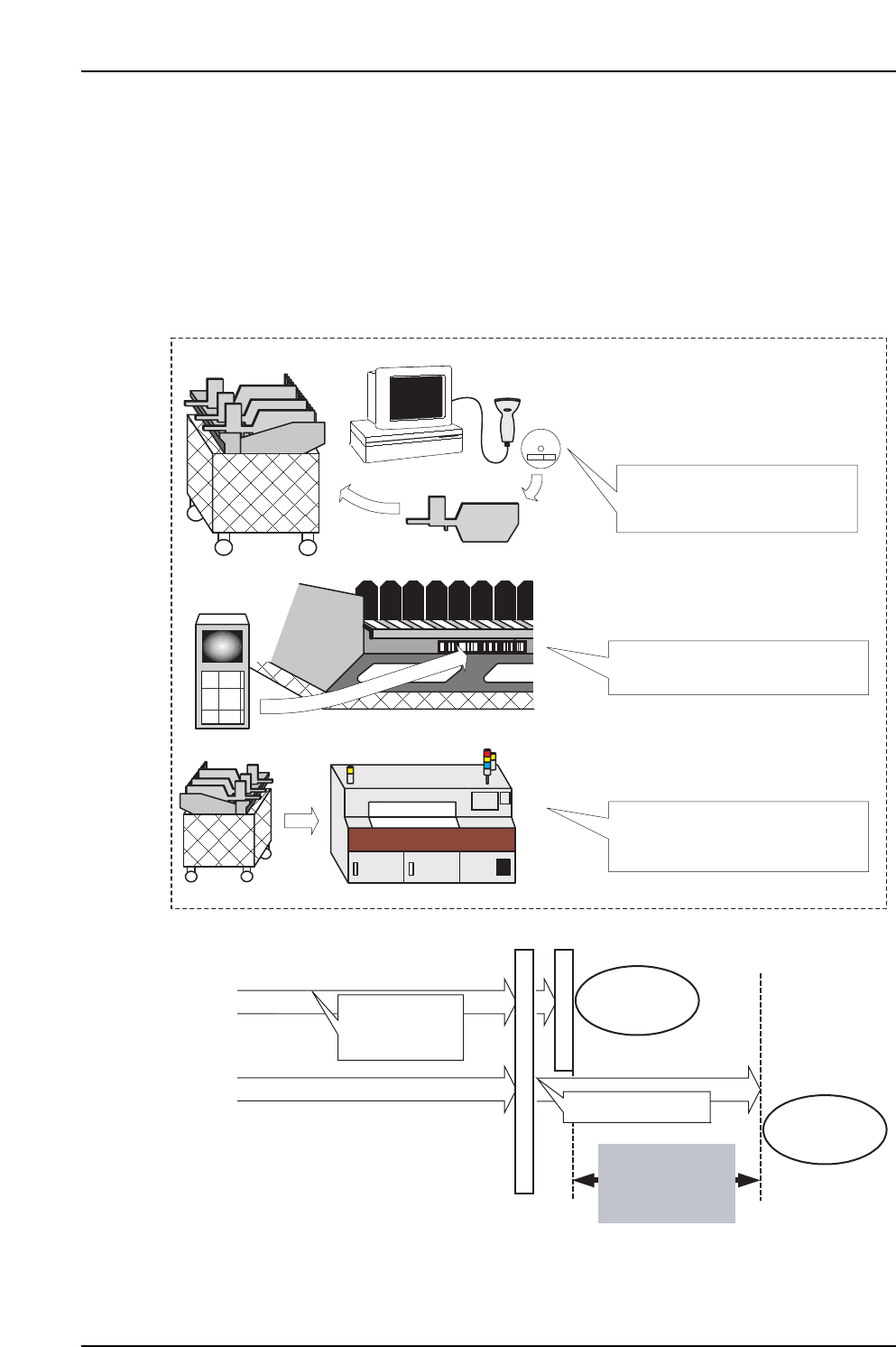

5.2.4 Off-Machine Changeover
An “off-machine changeover” refers to the process in which an idle device table (or a
spare device table) is brought to the Fujitrax Verifier, and a feeder setup is then
performed.
As off-line changeover is performed away from the machine, it is even possible to, for
example, setup the spare table while performing auto operation in Joint mode.
Changeover time is minimized by simply loading the prepared spare table onto the
machine.
Verification is
performed using
Verifier
With off-line changeover
Without off-line changeover
Verification occurs
Production start
Production start
This changeover
time can be
eliminated by an
off-line changeover.
Changeover occurs
Pallet change
Verifier
Handy Scanner
(1) Verification is performed
using the Verifier during machine
production operation.
(2) Handy Terminal is used at the
machine to perform a changeover.
(3) A new pallet is set in position.
Another verification is not required
at the machine.
5. Explanation of Functions
Edition 2.0 21 CP-7-series Verification System Instruction Manual
5.2.5 Reel Barcode Administration
In the verification system, device comments must be affixed to the part reel if Fujitrax
Verifier is not used, whereas DID labels must be affixed if Fujitrax Verifier is used.
The device comment content differs from the DID content. Therefore, if Fujitrax Verifier
was being used, but has been disabled for some reason, the reel barcode must be re-
attached.
If the following DID character string format is used, however, a “DID Joint Symbol”
setting can simply be specified, eliminating the need to reattach the barcode labels.
Example of DID format
The first part of the above code is the device comment, with a hyphen (-) entered as the
“DID Joint Symbol”, followed by a serial number. The entire code is then handled as a
DID.
Creating DIDs with this format enables the device comment to be recognized as
“ABCDE” even if the barcode is read by the Handy Terminal.
A B C D E — 0 0 0 0 1
Device comment
DID Joint Symbol
DID
