9. Using The Normal Verification Mode
Edition 2.0 44 CP-7-series Verification System Instruction Manual
9.2.4 Device Comment Reading
• Device comments can be read in the following two ways.
I. The device comment barcode affixed to the reel can be read by the Handy
Terminal.
II. The device comment can be entered using the Handy Terminal’s alphabetic
and numeric keys.
PDT-3100’s Device Comment Reading Command Screen
Handy Scanner’s Device Comment Reading Command Screen
ENTER/QUIT:
[VERIFY CHECK]
CP7V0008a
▲
STAGE1 SLOT ID:1
ST:PARTS END
READ DEVICE COMMENT
LABEL COMMENT=v
9. Using The Normal Verification Mode
Edition 2.0 45 CP-7-series Verification System Instruction Manual
9.2.5 Device Comment Comparison
• The machine searches the recipe to determine what device comment should be for
the reel in the slot being verified.
• The machine compares this search result with the device comment which has been
read from the Handy Terminal.
• If the compared device comments do not match, the machine prompts the operator
to read the device comment again.
• When using PDT-3100, if the compared device comments match, the system
proceeds to the verify check results screen.
• If the [ ] key is pressed at the PDT-3100 "Results" screen, or if several seconds are
allowed to elapse, the verification check for the current slot is ended, and a
"Waiting for next verification subject slot selection" status is established.
• If the scanner is being used, the device check result displays, and the new device
status is indicated.
PDT-3100’s Verify Check Results Screen
NEXT:
[VERIFY CHECK]
CP7V0009
▲
STAGE1 SLOT ID:1
DID:01234
DEVICE COMMENT:01234
VERIFY CHECK OK
▲
9. Using The Normal Verification Mode
Edition 2.0 46 CP-7-series Verification System Instruction Manual
9.2.6 Setting the Feeder
• Set a feeder in the slot which is to be verified.

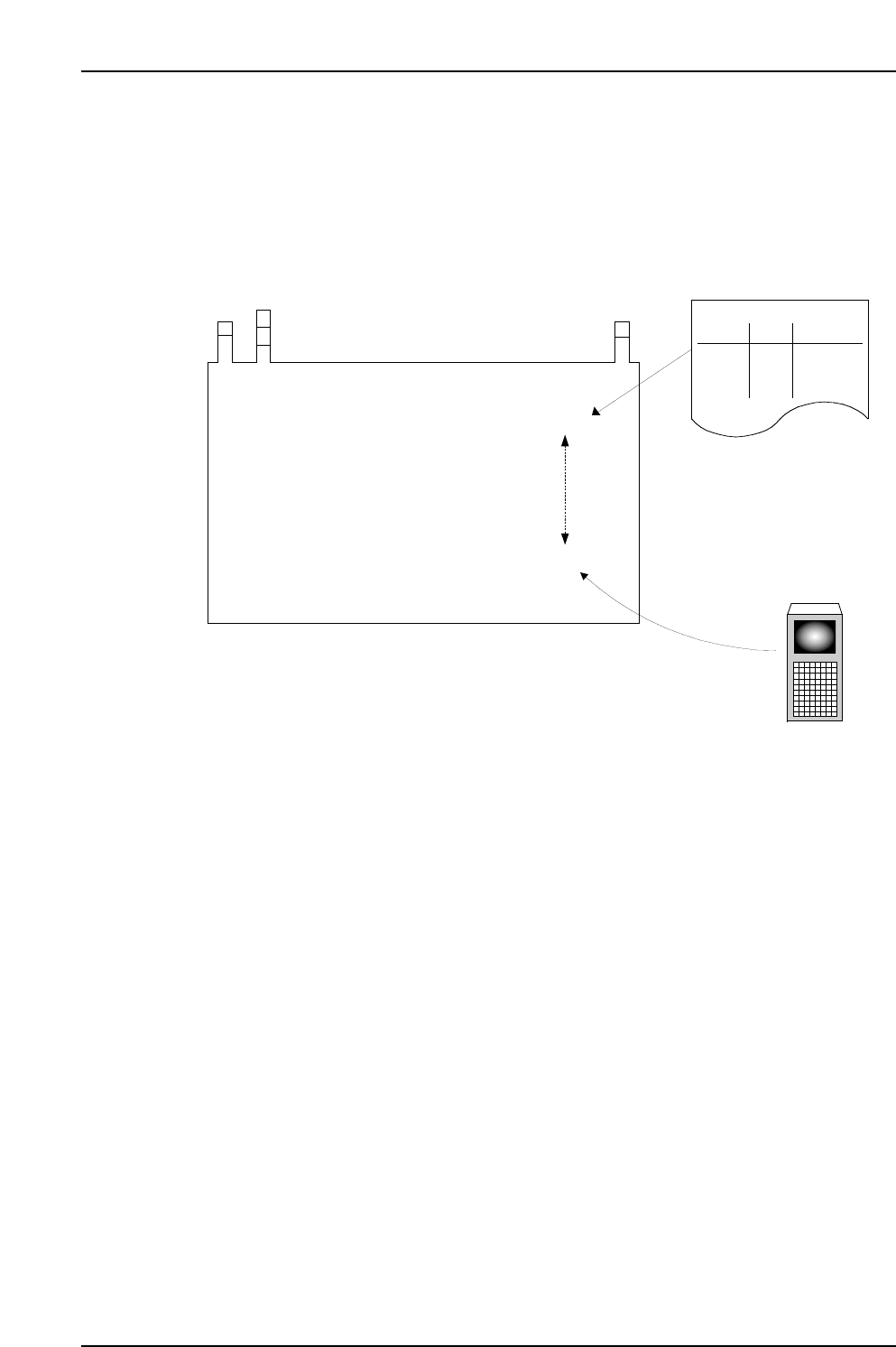

Data flow
The device comment read to the Handy Terminal is checked against recipe data.
It is the operator’s responsibility to select the slot where the verified feeder is to be set.
