11. Using the FULL AUTO Mode
Edition 2.0 87 CP-7-series Verification System Instruction Manual
11.6.2.1.2 Device Check Start
• A device check can be started in the following two ways.
I. Select [Device Check] on the machine control panel.
II. Select [1. Verify Check] at PDT-3100’s [Main Menu], then press [Enter].
PDT-3100’s Main Menu
11.6.2.1.3 Selecting The Device Comment List Stage
• The Stage for which a device comment list displays can be selected in the following
two ways.
I. Use the Handy Terminal to read the Stage number barcode affixed on the
machine rear.
II. Select the desired Stage on the Handy Terminal’s [Select Stage] screen.
PDT-3100’s Stage Selection Screen
Note: In the FULL AUTO mode, the above Stage selection process does not determine
the Stage to be verified, but rather the Stage for which a device comment list
displays. Therefore, the LED on/off status does not change even when a Stage is
selected. Moreover, it is possible to set feeders at the Stage which was not
selected.
ENTER/QUIT:
[VERIFY CHECK]
CP7V0006a
▲
SELECT START STAGE
1. STAGE1
2. STAGE2
SELECT STAGE NO.=v
▼▲
ENTER
[MAIN MENU]
1. VERIFY CHECK
2. PRE VERIFY CHECK
3. SET VERIFY RECIPE
4. PALLET SUPPLY
5. TEST READ
SELECT NO.=v
▼▲
CP7V0005
11. Using the FULL AUTO Mode
Edition 2.0 88 CP-7-series Verification System Instruction Manual
11.6.2.1.4 Device Comment List Display
PDT-3100’s [Device List] Screen
• The displayed list contains the device comments for all slots being used at the
selected Stage.
• Press the [▼] key to display the list content for the next 3 slots.
• Press the [▲] key to display the list content for the previous 3 slots.
• If a slot number is read, device comments display for that slot and the 2 adjacent
slots (slots in use).
PDT-3100’s [Device List] Screen
(When slots 4, 6, and 8 are “used” slots, and slots 5 and 7 are “unused” slots.)
ST: /QUIT:
[DEVICE LIST]
CP7V0059
▲
▲
STAGE1 SLOT4: XXXXXX
XXXXXXXXXXXXXXXXX
STAGE1 SLOT6: XXXXXX
XXXXXXXXXXXXXXXXX
STAGE1 SLOT8: XXXXXX
XXXXXXXXXXXXXXXXX
▼▲
CP7V0084E
If Slot No.6 is read, the list shown below displays
Handy Terminal
Slot ID
ST: /QUIT:
[DEVICE LIST]
CP7V0058
▲
▲
STAGE1 SLOT1: XXXXXX
XXXXXXXXXXXXXXXXX
STAGE1 SLOT2: XXXXXX
XXXXXXXXXXXXXXXXX
STAGE1 SLOT3: XXXXXX
XXXXXXXXXXXXXXXXX
▼▲
11. Using the FULL AUTO Mode
Edition 2.0 89 CP-7-series Verification System Instruction Manual
11.6.2.1.5 Setting Feeders on the Device Table
With reference to the device comment list, set feeders in the slots (slots to be verified)
where the LEDs are on.
Note: The device comment list remains unchanged even if a feeder is set in a slot which is to be
verified. Device comments for slots where verification has already been completed are
also included in the device comment list.

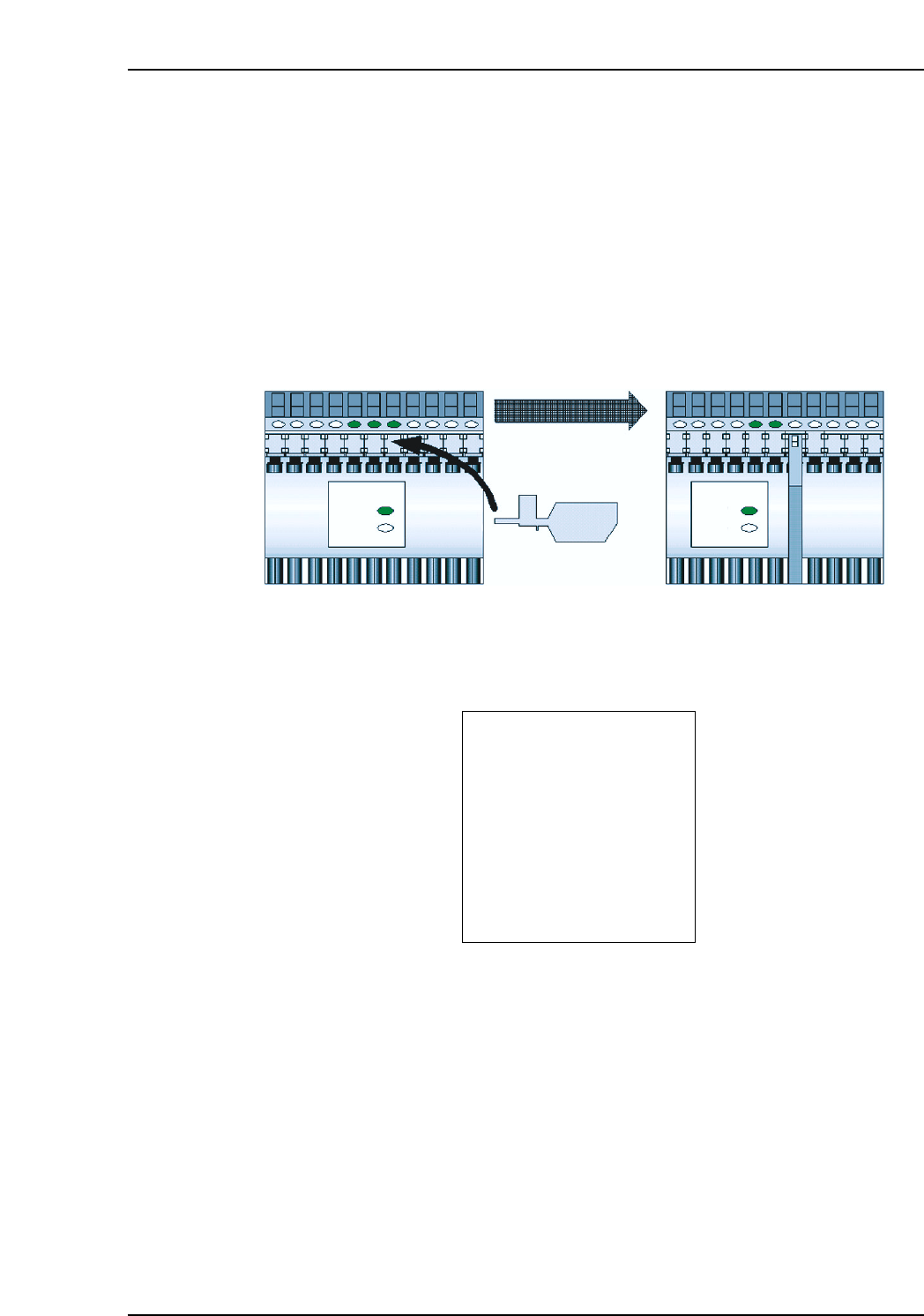

11.6.2.1.6 Slot LEDs Switch Off When Feeder is Set
When a feeder is set on the device table, the LED for that slot switches off.
The device status then changes from ”No Feeder” to “Unchecked”.
11.6.2.1.7 Changing the Device Comment List Stage
PDT-3100’s [Device List] Screen
Press the [ ] key at the [Device List] list screen to proceed to the [Select Stage] screen.
See section 10.4.2.4. (Selecting The Device Comment List Stage) for the remaining
procedure.
Note: If FULL AUTO mode operation is to occur at both Stages, the [Device List] for the first
Stage which was verified does not automatically change to the next Stage [Device List].
Therefore, the [ ] key must be pressed at the [Device List] list screen in order to change
to the next Stage [Device List]. It is possible, however, to set feeders on the next Stage
device table and proceed with verification without changing the [Device List] display.
▲
▲
ST: /QUIT:
[DEVICE LIST]
CP7V0058
▲
▲
STAGE1 SLOT1: XXXXXX
XXXXXXXXXXXXXXXXX
STAGE1 SLOT2: XXXXXX
XXXXXXXXXXXXXXXXX
STAGE1 SLOT3: XXXXXX
XXXXXXXXXXXXXXXXX
▼▲
CP7V0060E
LED
ON
OFF
LED
Slot LED switches off
when feeder is set
Feeder is set
ON
OFF
