1 1. Using the FULL AUTO Mode Edition 2.0 80 CP-7-series V erification System Instruction Manual 1 1.4 FULL AUT O Mode Procedure 1 1 1.4.1 Procedure Flowchart The following flowchart shows the general procedur e. 1 1.4.1…
11. Using the FULL AUTO Mode
Edition 2.0 79 CP-7-series Verification System Instruction Manual
11.3 FULL AUTO Mode Operation Procedure
Verification procedures vary somewhat, depending on the verification configuration (devices)
which are used. These devices can be selected at the [Parts Administration System] screen.
The following tabs are used to select the desired devices:
• [Use Handy Terminal]
• [Use Setup Sensor and LED system]
• [Use Fujitrax Verifier]
The verification operation varies according to the above setting combinations. In order to use
the FULLAUTO mode, however, the "Use Fujitrax Verifier" setting is required.
The table below shows the device combinations and corresponding procedures.
Note: Configurations 6 is not yet supported as of January 15, 2002.
Configuration
N/A
✔
N/A
✔
N/A
N/A
✔
✔
✔
✔
✔
✔
Procedure 1
Procedure 2
Procedure 3
Procedure 4
Button
Use Handy Terminal
Use Setup Sensor
and LED system
Use Fujitrax Verifier
Procedure
VT012E
Configuration 5
Configuration 6
Configuration 7
Configuration 8
11. Using the FULL AUTO Mode
Edition 2.0 80 CP-7-series Verification System Instruction Manual
11.4 FULL AUTO Mode Procedure 1
11.4.1 Procedure Flowchart

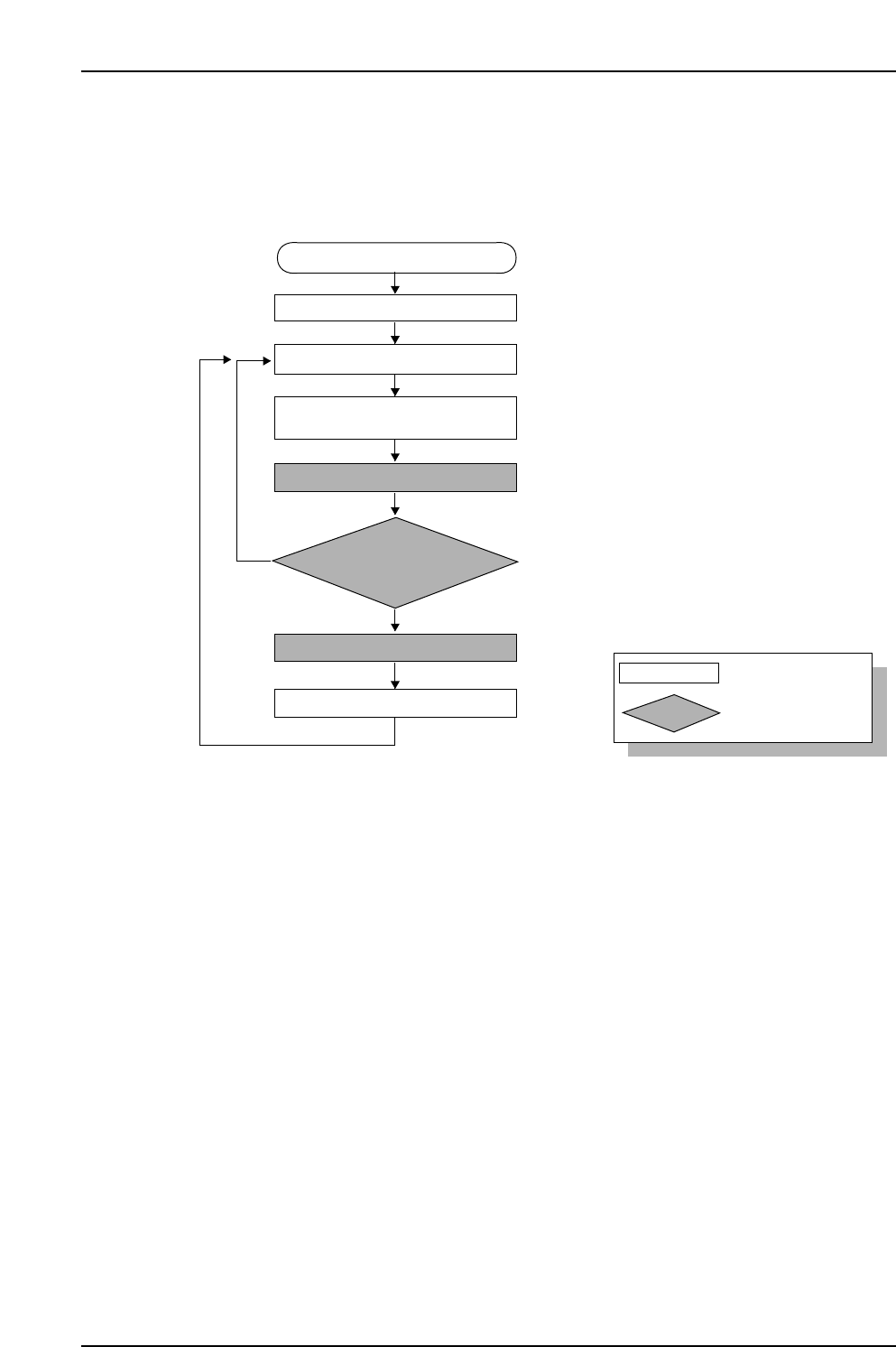

The following flowchart shows the general procedure.
11.4.1.1 Recipe Switching
• The recipe is switched.
11.4.1.2 Device Check
• After displaying the [Device Check] screen and verifying the slots to be used, set
feeders in all those slots.
• If the slots to be used are already known, there is no need to display the [Device
Check] screen.
Note: In the FULL AUTO mode, the above steps may not be required if feeders are set in all
the slots to be used before automatic operation begins. If feeders are set, the machine
automatically reads the feeder IDs, and verifies that the correct parts are being used.
11.4.1.3 Automatic Operation Start
• Automatic operation is started.
CP7V0056E
: Operator tasks
: Machine processing
Unshaded box
Shaded box
Device check start
Recipe switching
Device check
Part supply
Parts out occurrence
Automatic operation start
(START button pressed)
Mismatch
Checked against Verifier database
Feeder ID reading
Production start
Match
11. Using the FULL AUTO Mode
Edition 2.0 81 CP-7-series Verification System Instruction Manual
11.4.1.4 Feeder ID Reading
• The camera at ST1 reads the 2D codes which are affixed to each of the feeders.
• The slots where this barcode reading occurs is determined by the setting of the
[Read only the FIDL of error devices] button at the [Fujitrax Verifier Settings] tab
on the [Parts Administration System] screen.
• When the [Read ID or Error Devices Only] button is “ON”, barcode reading occurs
only at feeders where an error has occurred.
• When the [Read ID or Error Devices Only] button is “OFF”, barcode reading occurs
at all the slots being used.
• A feeder ID reading error occurs and the machine is stopped if a feeder is not set in
a slot which is to be used.
11.4.1.5 Check Against Fujitrax Verifier Database
• Information indicating the parts reel which corresponds to the feeder ID which was
read is obtained from Fujitrax Verifier.
• The device comment included in the obtained reel information is checked against
the recipe.
11.4.1.6 Production Start
• Production is started automatically.
11.4.1.7 Part Supply
• Parts are supplied.
