4. Adjustments
Edition 2.0 9 CP-7-series Verification System Instruction Manual
4.3 Feeder ID Reading System Adjustment
1. Adjustment Method For 2D Code Camera
Note: The 1~4 procedure steps below are settings to enable communication between the
application and the 2D camera controller. Once these controller settings have been
specified, they need not be specified again unless the controller is replaced.
(1) Connect the auxiliary console to the 2D code camera controller. Connect a monitor to
the controller for those machines not equipped with a rear monitor.
• Console operation procedure
• Monitor screen display
Scene No.: This should be set to “Scene 1”.
Mode: The currently selected mode is indicated.
Displayed Image: Indicates the type of image which is currently displayed. The
“Freeze” mode displays the most recent 24 images (0 ~ 23)
which are always saved. The “Through” mode displays the
real (live) image. Switch between the “Freeze” and “Through”
modes by pressing [SHIFT]+[▼] or [SHIFT]+[▲].
CP7V0088E
Scene 0 System
Cursor Scene No. Mode Displayed image
—ms
ESC TRIG
SHIFT
ENT
Key Operation
At hierarchical menu screens, pressing
this key moves 1 level upward. At setting
screens, pressing this key aborts a
setting operation and returns 1 level
upward.
ESC
Executes a reading operation.
(Press 1 time = 1 reading operation.)
TRIG
Registers the selected function or setting
value.
ENT
These keys move the cursor up and down.
They are also used when entering numeric
setting values (increase/decrease).
UP/DOWN
These keys move the cursor left and right.LEFT/RIGHT
This key has no function when pressed by
itself. It functions only when pressed
together with another key.
SHIFT
CP7V0087E
Console
4. Adjustments
Edition 2.0 10 CP-7-series Verification System Instruction Manual
(2) With a “Scene 1” status established, press the [→] key at the console to move to the
mode item, then set the [System] content as shown in Table 1.
(3) After setting all the [System] items, move to the [Save] item to save the data.
(4) Proceed to the [Measure] item.
(5) At the machine’s touch-screen, select [Maintenance] - [Configuration]
- [Machine Function Settings] - [Part Administration System] - [Use FujiTrax Verifier],
then select [Fujitrax Verifier Settings], and select [2D code camera] at the “Feeder ID
reading system” item.
(6) Set a jig in slot 1 of Stage 1, then move to the pick-up position.
(7) Select [Maintenance] - [Maintenance for Each Machine] - [Feeder Check Reader Test]
- [Feeder ID Reading] to display a broken line on the monitor. As the “Through” screen
mode (real image) is in effect at this time, adjust the camera height until the jig is in
focus.
(8) Adjust the camera in the XY-directions to align the broken line center with the center of
the square label on the jig (the gap between the broken line frame and the label sides
should be uniform as shown below).
(9) Restart the machine and verify that no errors occur.
Scent 0
Measurement
Scent 0
Measurement
Gap
Gap should be uniform on all sides
Jig label
Monitor’s broken line display
Gap
CP7V0089E
4. Adjustments
Edition 2.0 11 CP-7-series Verification System Instruction Manual
(10) Remove the jig, then place feeders with 2D codes at the first and last slots of each stage
(slot Nos. 1 and 30, or 1 and 40 on the CP-742ME, 1 and 70 on the CP-742E). With the
feeders set in position, select [Maintenance] - [Maintenance for Each Machine]
- [Feeder Check Reader Test] - [Feeder ID Reading], verifying that the IDs are read
correctly.

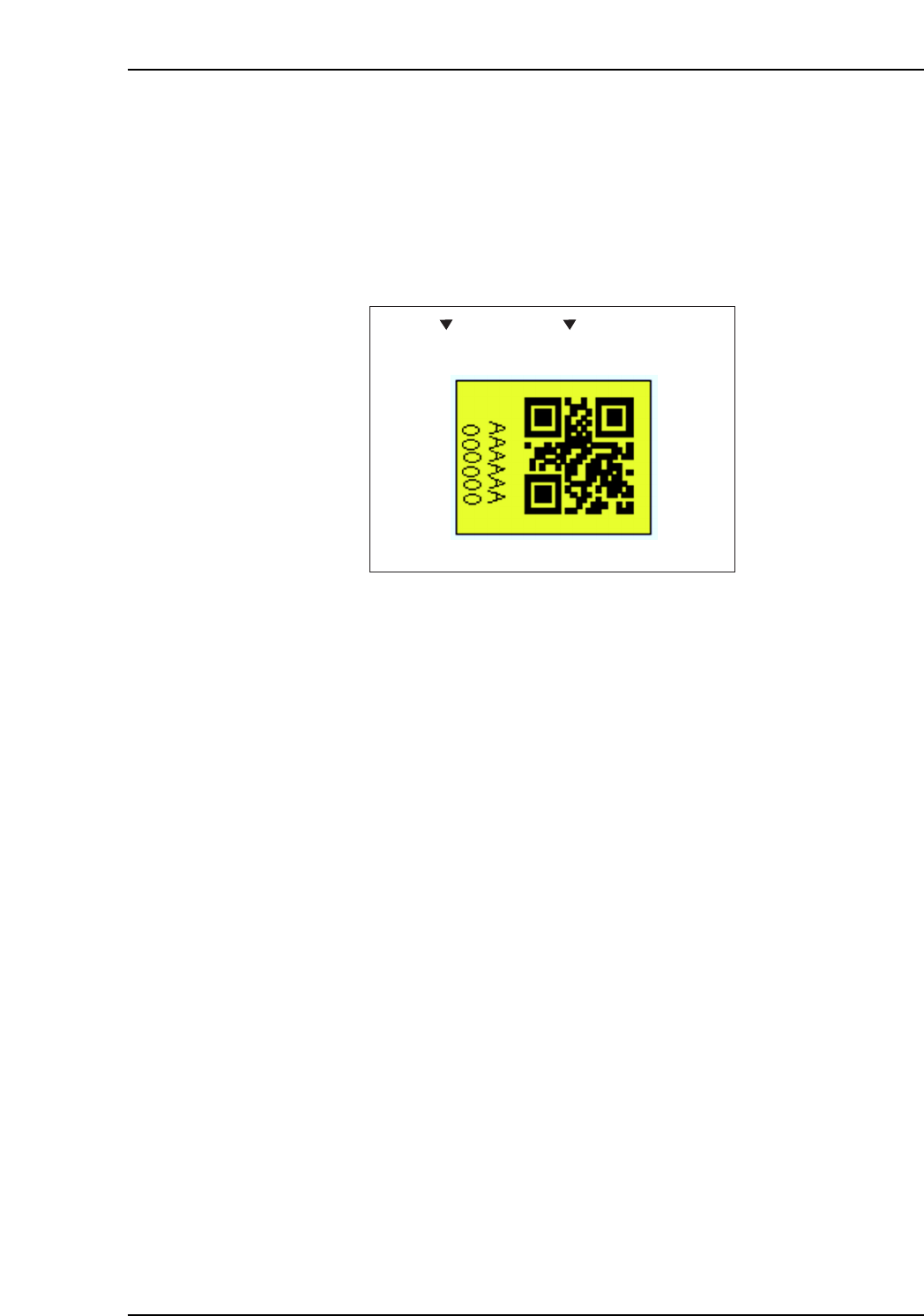

If reading occurs correctly, the green LEDs light at the slots where the feeders are set,
and “OK” displays at the upper right of the rear monitor, as shown in the figure below.
When 2D code reading does not occur correctly:
1. Check to see if the feeder’s label is peeled off, or is in the wrong position.
2. Move the error feeder to the pick-up position, display the “Through” mode screen (using
the same command as in Step 7 above), then check to see if the 2D code image is clearly
focused.
3. Adjust the camera position, and verify that the calibration data (D-axis pick-up position) is
correct.
Search area
OK
CP7V0090E
Scent 0
Measurement
