10. Using the DC AUTO Mode
Edition 2.0 77 CP-7-series Verification System Instruction Manual

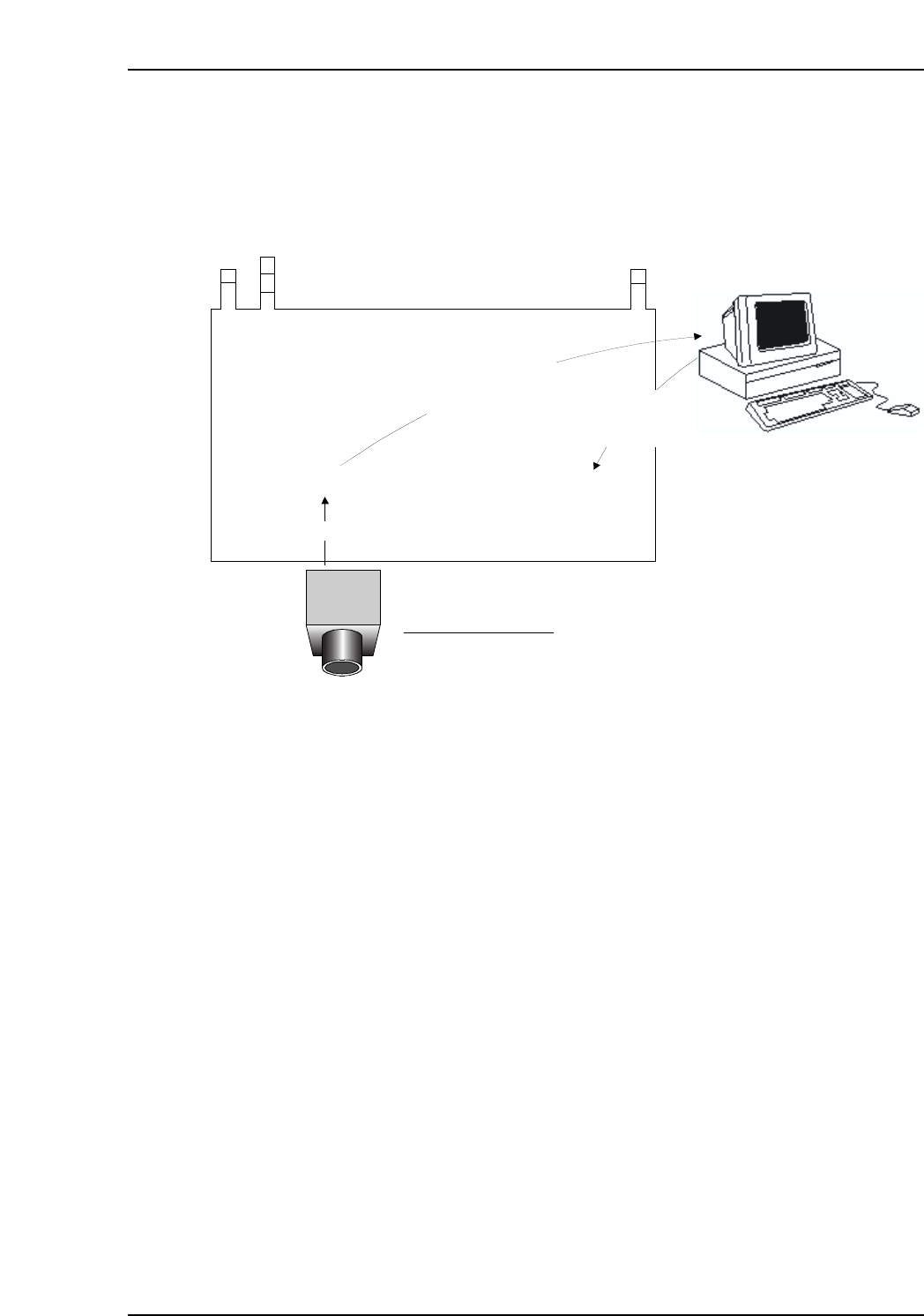

Data flow (after automatic operation start)
The FIDL which was read is used as a key to search the Fujitrax Verifier database in
order to download the required information.
CCPP77
Parts out
warning
value
Feeder ID read system
Stage Slot Comment DID: FIDL
Acquired
Data:
Fujitrax Verifier
(2) Confirmation of
parts information
to the Verifier
(3) Download of parts
out waning values
and other data
(1) Feeder IDs reading
11. Using the FULL AUTO Mode
Edition 2.0 78 CP-7-series Verification System Instruction Manual
11. Using the FULL AUTO Mode
11.1 Operation Conditions
A “Use Fujitrax Verifier” setting must be specified at the [Parts Administration System] screen.
11.2 Preparations
11.2.1 Preparing Fujitrax Verifier
In the FULL AUTO mode, the feeder ID read system reads the feeder ID (FIDL), and the
device comment and DID are then obtained from Fujitrax Verifier based on the FIDL
that was read.
Therefore, the feeder (FIDL) and parts (DID, device comment) combination must be
registered in Fujitrax Verifier in advance.
11.2.2 Settings
At the [Maintenance] - [Configuration] - [Machine Function Settings]
- [Use Fujitrax Verifier] - [Parts Administration System] - [Fujitrax Verifier Settings] tab,
specify the FULLAUTO Quick Verification mode. For details, refer to chapter 6
“Settings” of this manual.
Note: Fujitrax Verifier is used in the FULL AUTO mode. Therefore, the FULL AUTO Quick Verify
mode is only operative when the "Use Fujitrax Verifier" setting are specified.

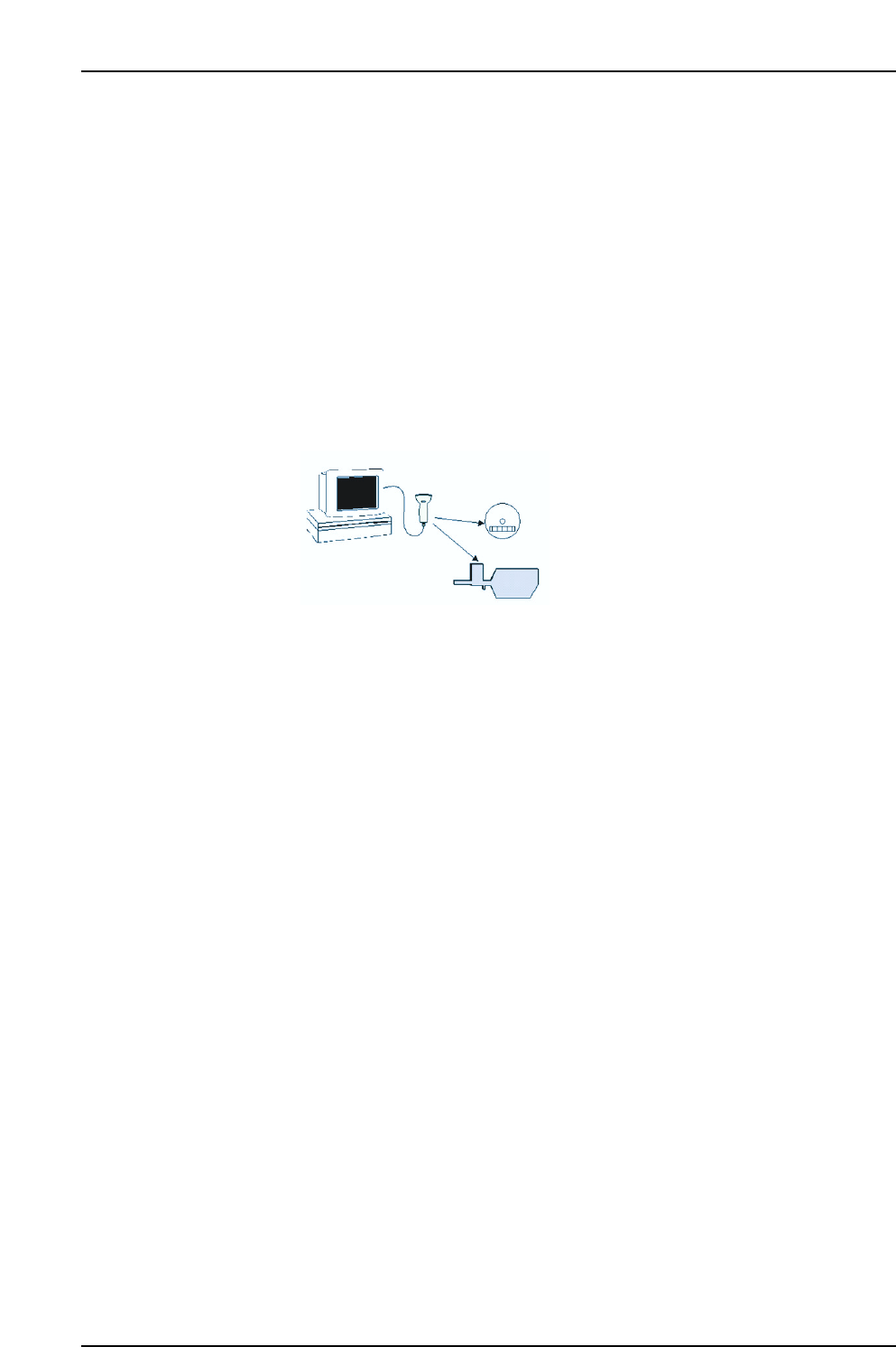

Fujitrax Verifier
Register the feeder / part combination
at Fujitrax Verifier in advance.
CP7V0055E
Handy
Terminal
11. Using the FULL AUTO Mode
Edition 2.0 79 CP-7-series Verification System Instruction Manual
11.3 FULL AUTO Mode Operation Procedure
Verification procedures vary somewhat, depending on the verification configuration (devices)
which are used. These devices can be selected at the [Parts Administration System] screen.
The following tabs are used to select the desired devices:
• [Use Handy Terminal]
• [Use Setup Sensor and LED system]
• [Use Fujitrax Verifier]
The verification operation varies according to the above setting combinations. In order to use
the FULLAUTO mode, however, the "Use Fujitrax Verifier" setting is required.
The table below shows the device combinations and corresponding procedures.
Note: Configurations 6 is not yet supported as of January 15, 2002.
Configuration
N/A
✔
N/A
✔
N/A
N/A
✔
✔
✔
✔
✔
✔
Procedure 1
Procedure 2
Procedure 3
Procedure 4
Button
Use Handy Terminal
Use Setup Sensor
and LED system
Use Fujitrax Verifier
Procedure
VT012E
Configuration 5
Configuration 6
Configuration 7
Configuration 8
