14. Registering Data at Fujitrax Verifier
Edition 2.0 109 CP-7-series Verification System Instruction Manual
14.5 Part Data Registration
14.5.1 Part Data Registration Start
To register part data, read the "3" barcode shown on the screen below to select the "3.
Part Information" item.

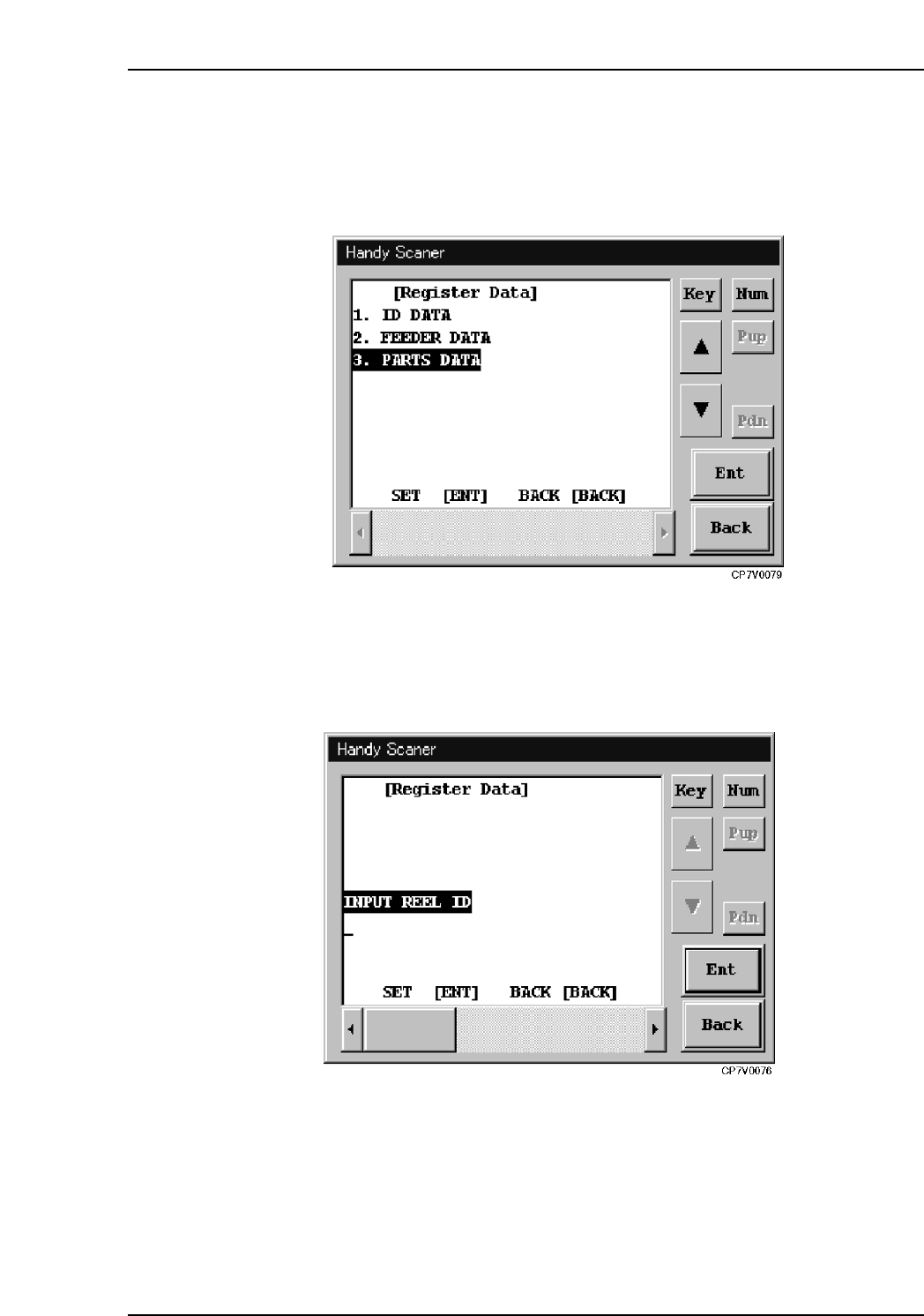

Handy Scanner’s [Parts Data] Screen
14.5.2 DID Input
After the above step is completed, the “Input Reel ID “ screen shown below displays.
Enter the DID information here.
Handy Scanner’s [Input Reel ID] Screen
14. Registering Data at Fujitrax Verifier
Edition 2.0 110 CP-7-series Verification System Instruction Manual
14.5.3 Device Comment Input
After the above step is completed, the “Input Device Comment” screen shown below
displays. Enter the device comment here.

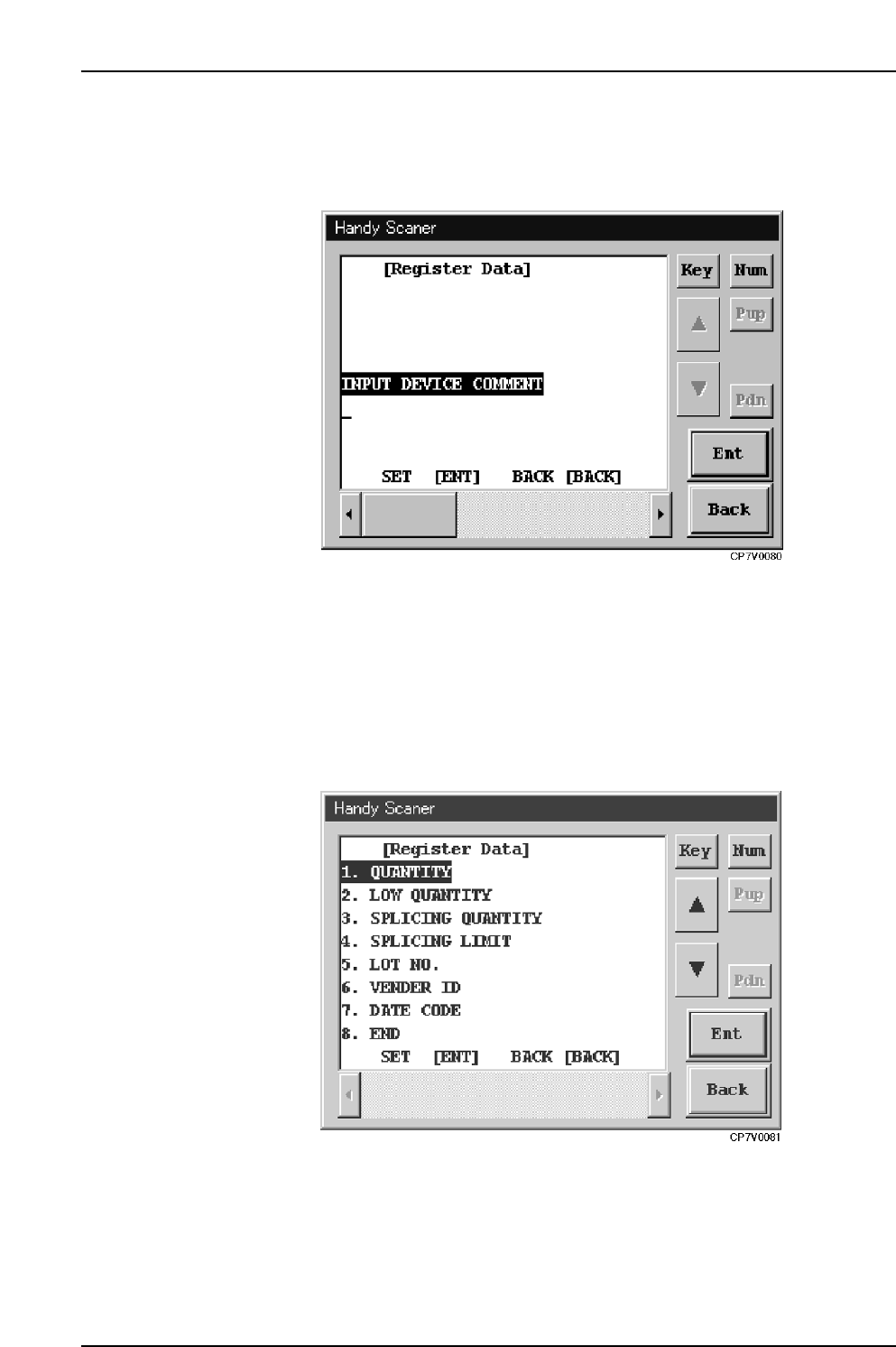

Handy Scanner’s [Input Device Comment] Screen
14.5.4 Details Data Registration
After the above step is completed, the screen shown below displays. Read the
appropriate barcode (1~7) for the data which is to be registered. Operation is completed
when the “8” barcode is read.
When data input is completed, the data is transmitted to Fujitrax Verifier where it is
registered.
Handy Scanner’s Registration Data Selection Screen
14. Registering Data at Fujitrax Verifier
Edition 2.0 111 CP-7-series Verification System Instruction Manual
14.5.5 Complete the part information registration operation
Read the "8" barcode to select the "8. Setting Completed" item and complete the part
information registration operation.
