9. Using The Normal Verification Mode
Edition 2.0 60 CP-7-series Verification System Instruction Manual
9.6.2.3 Determining the Slot to be Verified
• If the stage to be verified was determined by removing a feeder, this step can be
skipped because the slot to be verified will also have been determined at that time.
• The slot to be verified can be determined in following three ways.
I. If a feeder is set in a slot where an LED is on at the verify subject stage, that
slot will become a verify subject if that feeder is removed.
II. By using the Handy Terminal to read the slot number barcodes affixed to
each slot.
III. By keying in the slot number from the PDT-3100’s numeric key pad.
PDT-3100’s Slot ID Reading Command Screen
Handy Scanner’s Slot ID Reading Command Screen
9.6.2.4 LED ON at Slot to be Verified
• Only the LED at the slot to be verified is on.
• When subsequently setting feeders, the LEDs indicate which positions those
feeders should be set in.
ENTER/QUIT:
[VERIFY CHECK]
CP7V0007a
▲
STAGE1
READ SLOT ID LABEL
SLOT ID=v
9. Using The Normal Verification Mode
Edition 2.0 61 CP-7-series Verification System Instruction Manual
9.6.2.5 DID Reading
• DID data can be read in the following two ways.
I. The DID barcode attached to the reel can be read to the Handy Terminal.
II. The DID can be entered using the PDT-3100’s alphabetic and numeric keys.

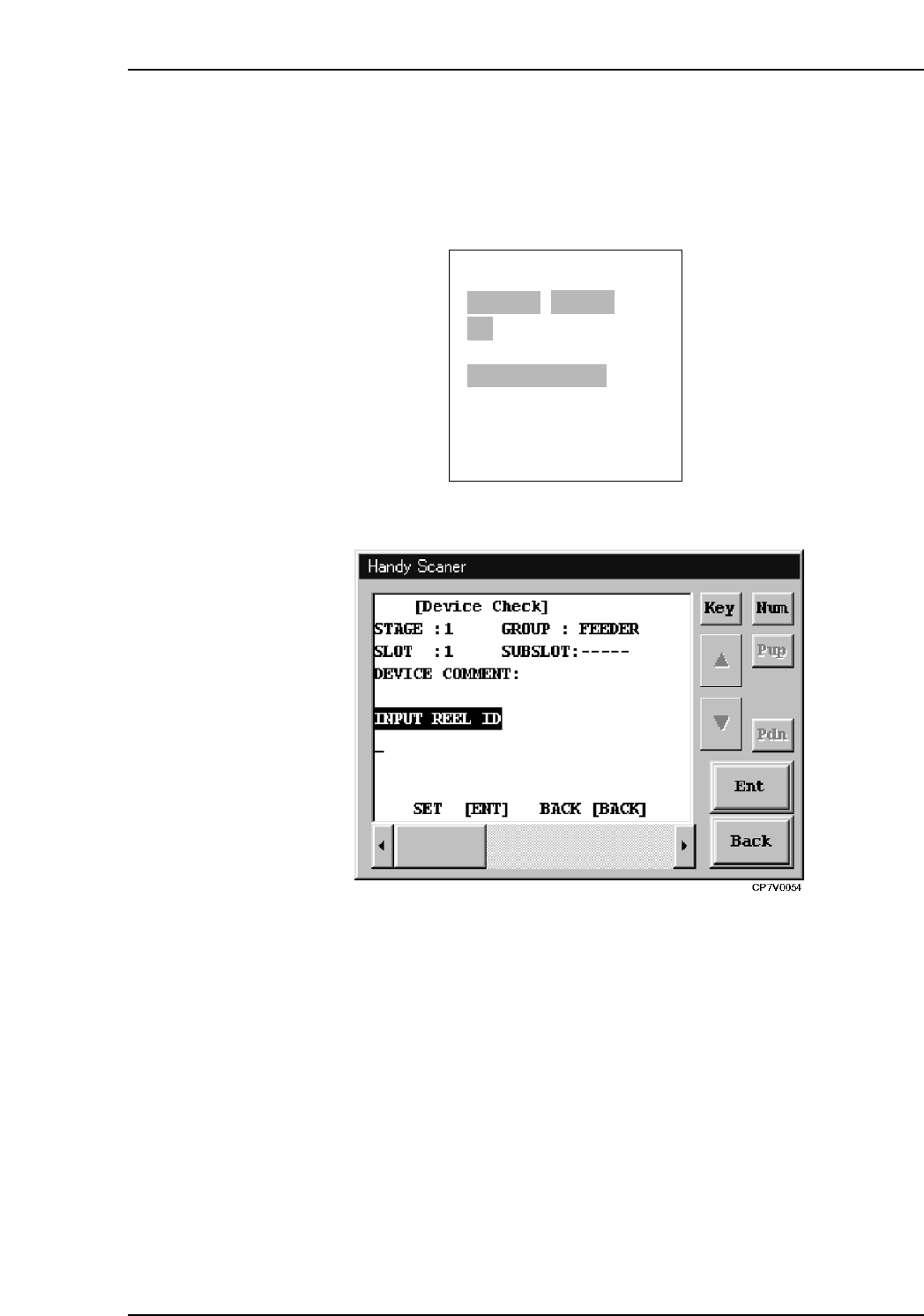

PDT-3100’s DID reading command screen
Handy Scanner’s DID Reading Command Screen
9.6.2.6 Extracting a Device Comment from the DID
• A DID Joint Symbol is used within the DID so that the device comment can be
extracted from the DID character string.
ENTER/QUIT:
[VERIFY CHECK]
CP7V0012a
▲
STAGE1 SLOT ID:1
ST:PARTS END
READ DID LABEL
DID=v
9. Using The Normal Verification Mode
Edition 2.0 62 CP-7-series Verification System Instruction Manual
9.6.2.7 Device comment reading
• Device comments can be read in the following two ways.
I. The device comment barcode affixed to the reel can be read to the Handy
Terminal.
II. The device comment can be entered using the PDT-3100’s alphabetic keys
and numeric key pad.

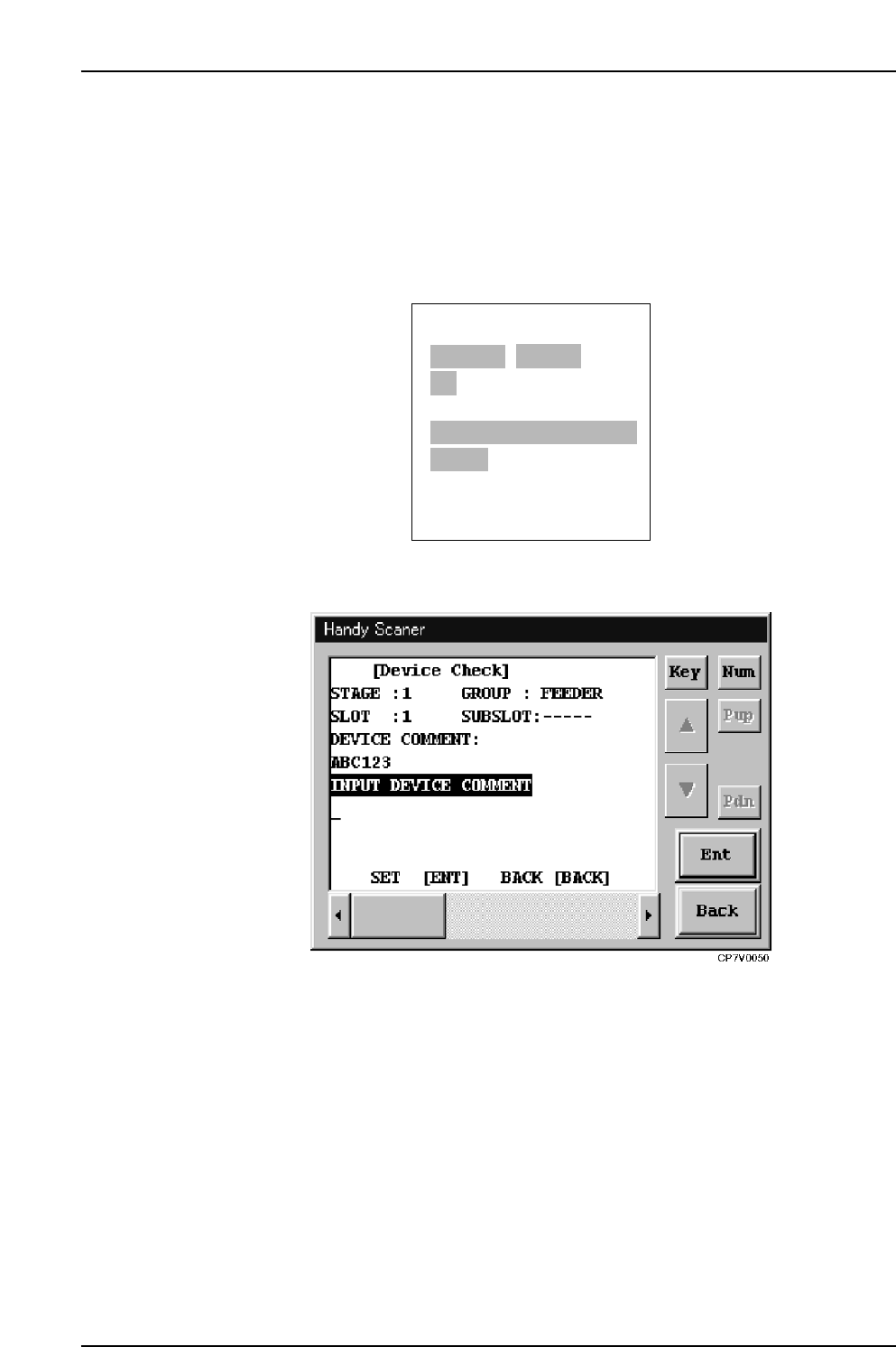

PDT-3100’s Device Comment Reading Command Screen
Handy Scanner’s Device Comment Reading Command Screen
ENTER/QUIT:
[VERIFY CHECK]
CP7V0008a
▲
STAGE1 SLOT ID:1
ST:PARTS END
READ DEVICE COMMENT
LABEL COMMENT=v
