9. Using The Normal Verification Mode

Edition 2.0 42 CP-7-series Verification System Instruction Manual

9.2.2 Determining the Stage to be Verified

• The stage to be verified can be determined in the following three ways.

I. By using the PDT-3100’s to read the stage number barcode affixed on the

machine rear.

II. By selecting the desired stage from the PDT-3100’s “Select Start Stage”

screen.

PDT-3100’s Stage Selection Screen

III. With the “Input Stage No.” item displayed at the Handy Scanner dialog box,

use the Handy Scanner to read the Stage number barcode affixed on the

machine rear.

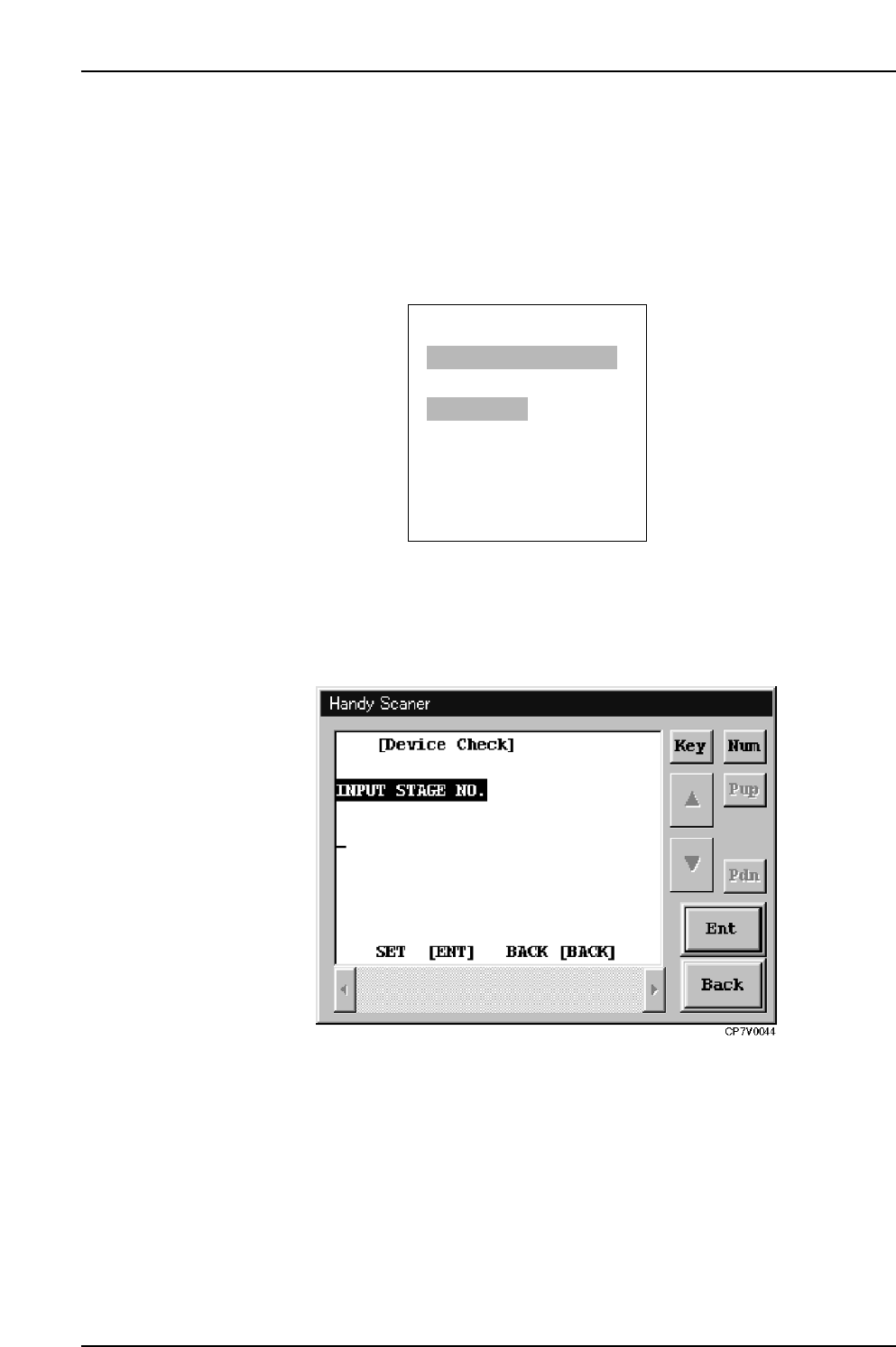

Handy Scanner’s Stage Selection Screen

Notes:

• The Verification operation must be performed for each stage.

• To perform a verification at Stage 2, for example, after Stage 1 has been selected, the

device check must be interrupted, and the verification must be started again.

• When using the Scanner, it is possible to return to the “Input Stage No.” step without

interrupting the device check. This is done by reading the “BACK” barcode.

ENTER/QUIT:

[VERIFY CHECK]

CP7V0006a

▲

SELECT START STAGE

1. STAGE1

2. STAGE2

SELECT STAGE NO.=v

▼▲

9. Using The Normal Verification Mode

Edition 2.0 43 CP-7-series Verification System Instruction Manual

9.2.3 Determining the Slots to be Verified

• The slots where verification is to occur can be selected in the following 2 ways.

I. The slot number barcodes affixed to each slot can be read by the Handy

Terminal.

II. The slot numbers can be entered from the PDT-3100 numeric pad.

PDT-3100’s Slot ID Reading Command Screen

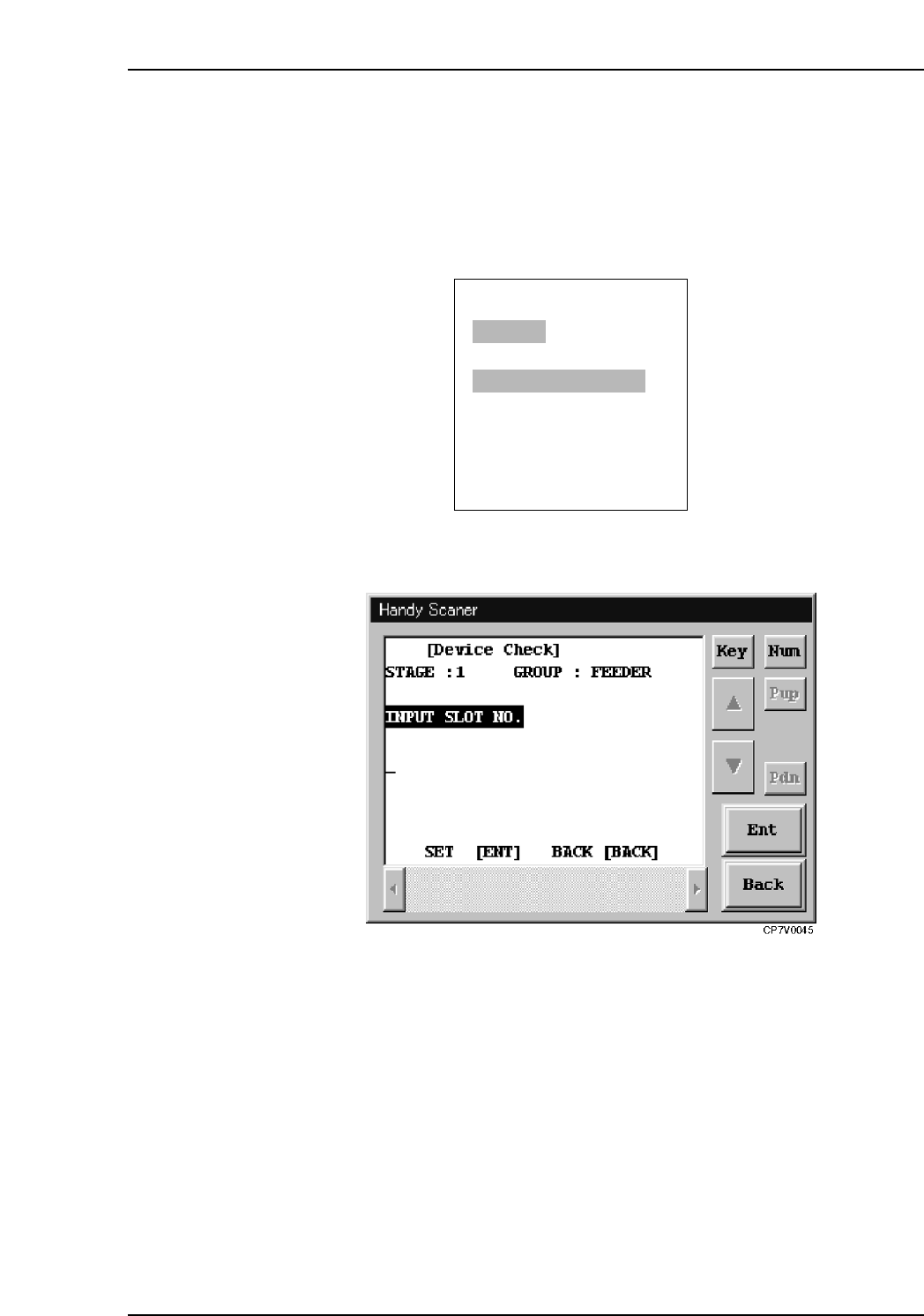

Handy Scanner’s Slot ID Reading Command Screen

ENTER/QUIT:

[VERIFY CHECK]

CP7V0007a

▲

STAGE1

READ SLOT ID LABEL

SLOT ID=v

9. Using The Normal Verification Mode

Edition 2.0 44 CP-7-series Verification System Instruction Manual

9.2.4 Device Comment Reading

• Device comments can be read in the following two ways.

I. The device comment barcode affixed to the reel can be read by the Handy

Terminal.

II. The device comment can be entered using the Handy Terminal’s alphabetic

and numeric keys.

PDT-3100’s Device Comment Reading Command Screen

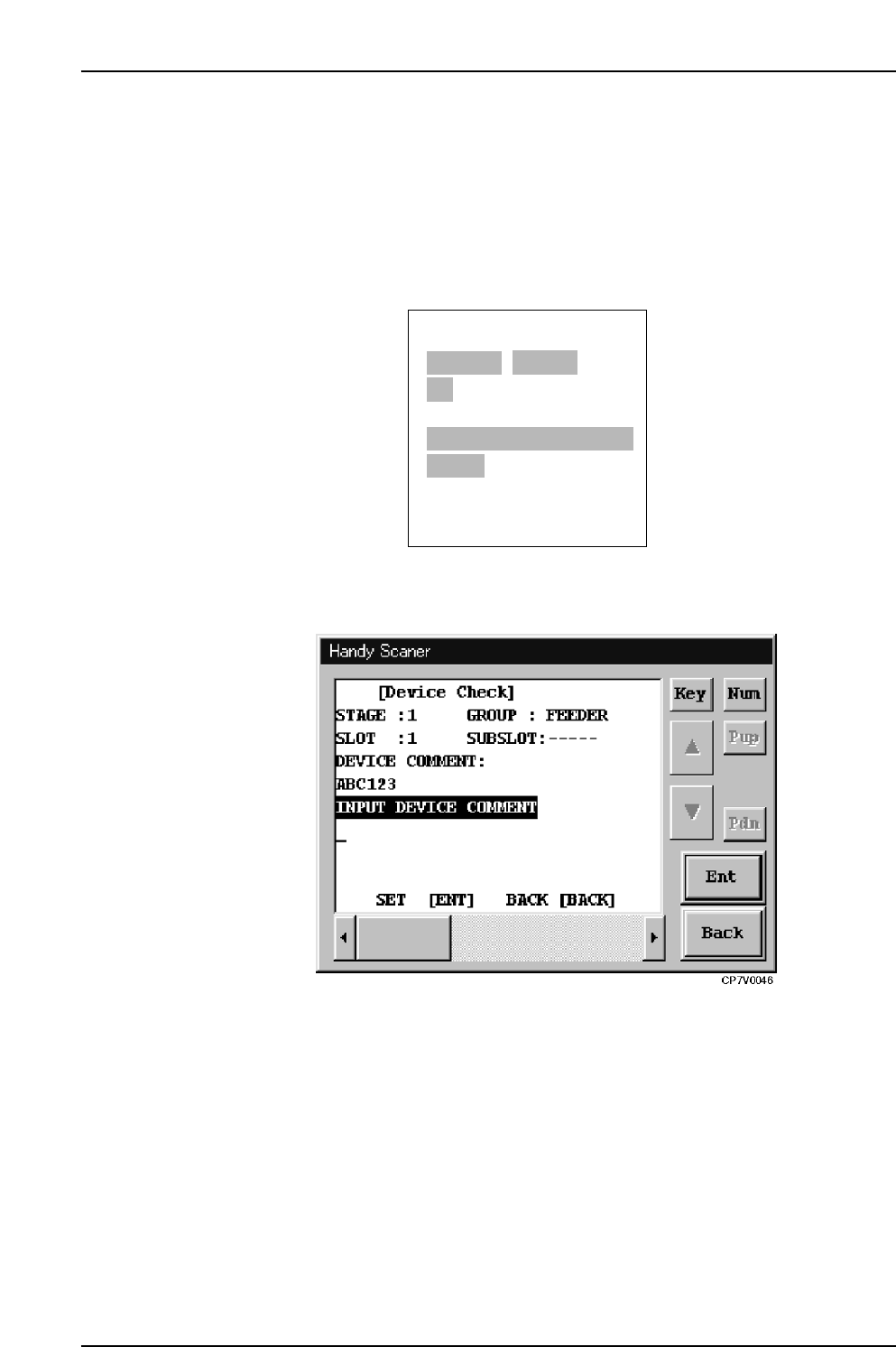

Handy Scanner’s Device Comment Reading Command Screen

ENTER/QUIT:

[VERIFY CHECK]

CP7V0008a

▲

STAGE1 SLOT ID:1

ST:PARTS END

READ DEVICE COMMENT

LABEL COMMENT=v
