14. Registering Data at Fujitrax Verifier
Edition 2.0 105 CP-7-series Verification System Instruction Manual
14.3 ID Data Registration
The procedure for registering ID information (combination information) at Fujitrax Verifier
without performing a normal verification mode operation is explained below.
14.3.1 ID Data Registration Start
To register ID information (combination information), read the “1” barcode with the
Handy Scanner dialog box shown below displayed.
Handy Scanner’s Registration Data Selection Screen
14.3.2 FIDL Registration
After the above step is completed, the “Input Feeder No.” screen shown below displays.
Enter the FIDL information here.
Handy Scanner’s [Input Feeder No.] Screen
14. Registering Data at Fujitrax Verifier
Edition 2.0 106 CP-7-series Verification System Instruction Manual
14.3.3 DID Input
After the above step is completed, the “Input Reel ID” screen shown below displays.
Enter the DID information here.
Handy Scanner’s [Input Reel ID] Screen
14.3.4 ID Information (Combination Information) Input Completed
After the FIDL and DID information has been entered, this data is transmitted to
Fujitrax Verifier where the ID information (combination information) is then created.
14. Registering Data at Fujitrax Verifier
Edition 2.0 107 CP-7-series Verification System Instruction Manual
14.4 Feeder Data Registration
14.4.1 Feeder Data Registration Start

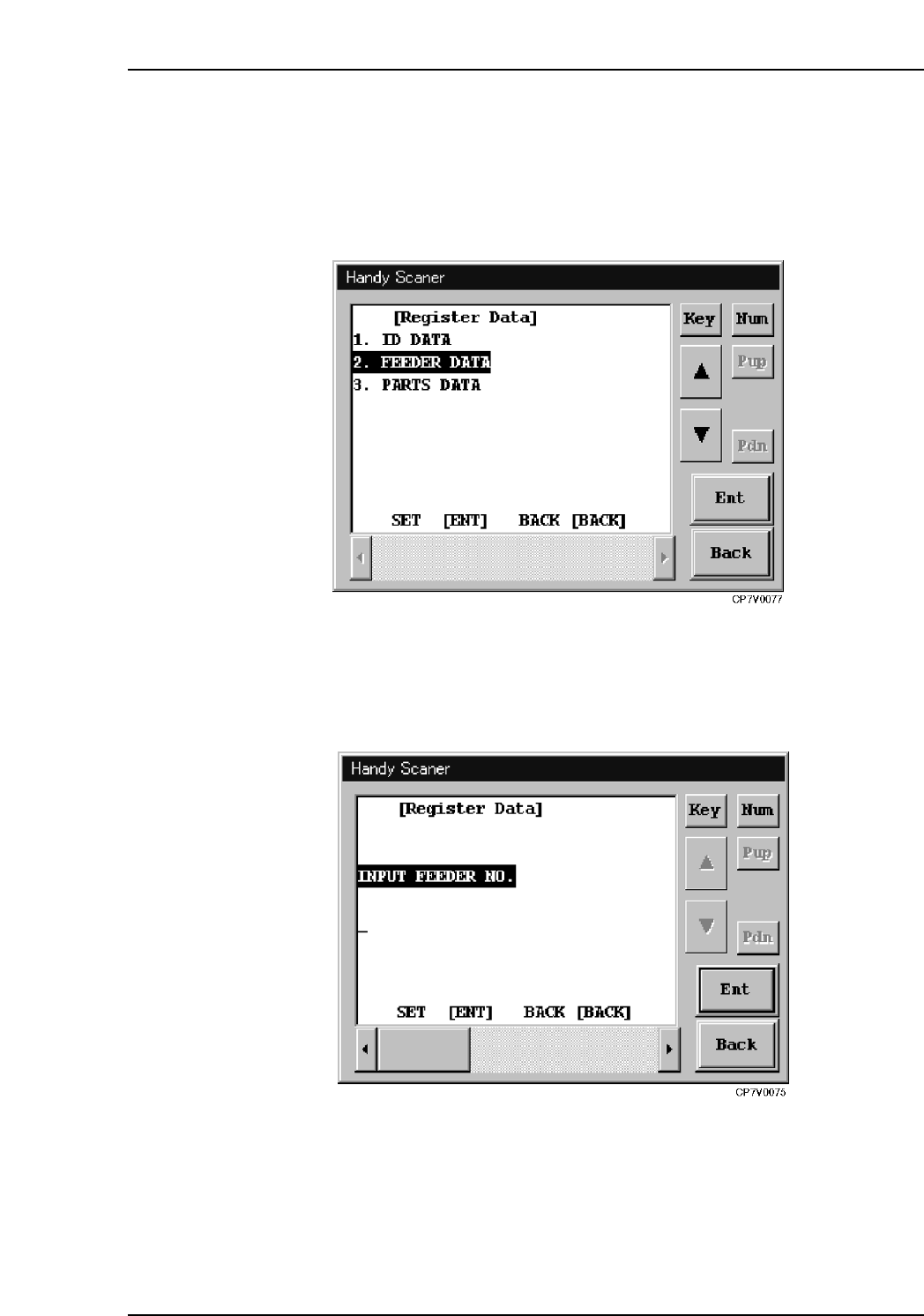

To register feeder data, read the "2" barcode shown on the screen below to select the "2.
FEEDER DATA" item.
Handy Scanner’s [Feeder Data] Screen
14.4.2 FIDL Input
After the above step is completed, the “Input Feeder No.” screen shown below displays.
Enter the FIDL information here.
Handy Scanner’s [Input Feeder No.] Screen
