NPM
LNB
3.1 Production Management Information
EJM9BE-MB-03L-20 Page 3-7
Changing the list information
1. Change to the lot information list
1
Choose [Lot Information].
•
The <Lot Information> list is displayed.
2. Change to the shift information list
1
Choose [Shift Information].
•
The <Shift Information> list is displayed.
lnb3-1002_e
lnb3-1005_e
1
lnb3-1005_e
1
lnb3-1004_e
NPM
LNB
3.1 Production Management Information
Page 3-8 EJM9BE-MB-03L-20

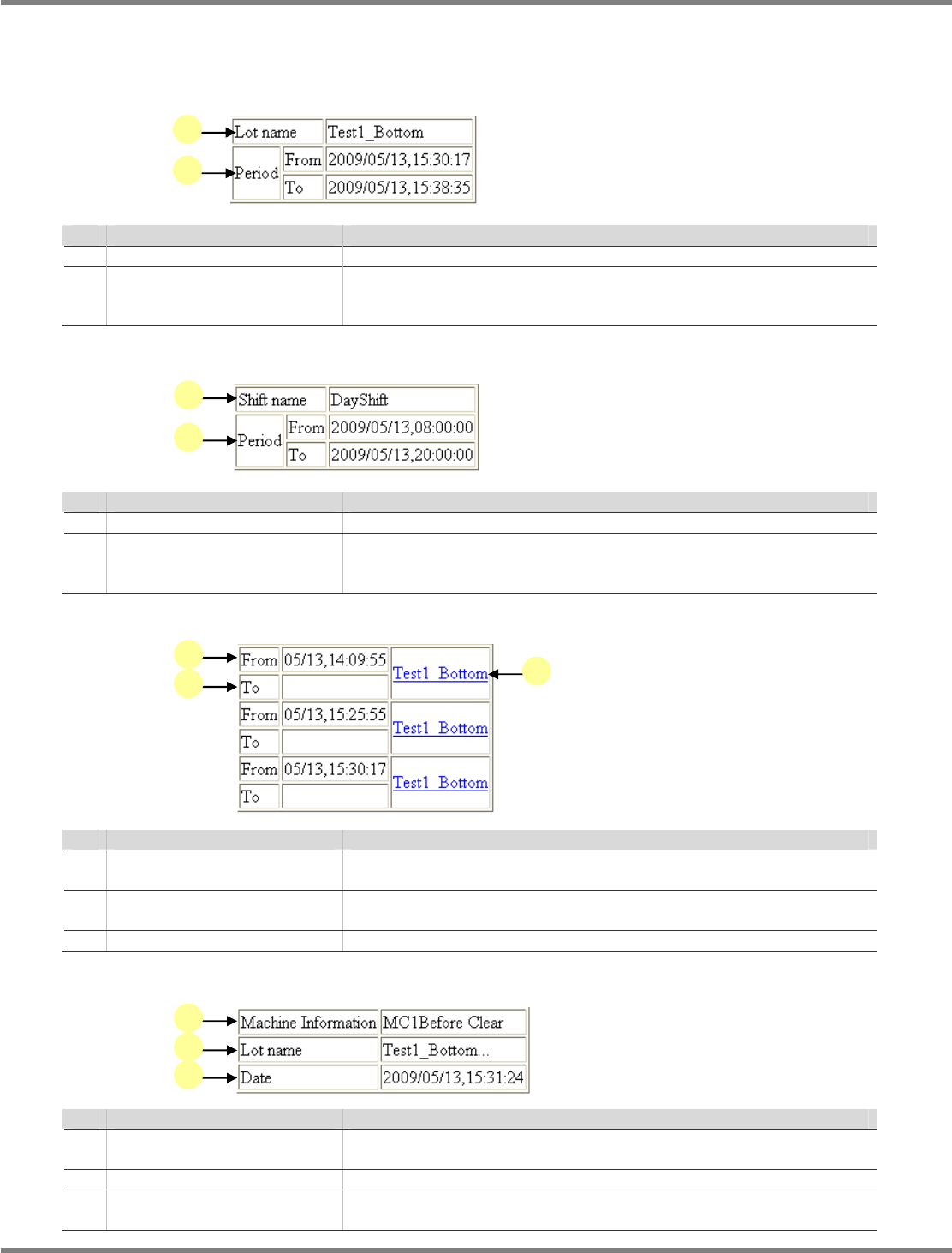

3.1.2 Explanations of Production Information Names
Names of information displayed as the production management information are described below.
A) Lot information
Name Explanation
a Lot name The name of the production lot
b Period The time during which production management information to be
displayed is compiled
Maximum of one week
B) Shift information
Name Explanation
a Shift name The name of the production shift
b Period The time during which production management information to be
displayed is compiled
Maximum of one week
C) Lot list
Name Explanation
a From The production start time of the corresponding lot during the target
shift
b To The production end time of the corresponding lot during the target
shift
c (Lot name) The name of the production lot during the target shift
D) Machine display information
Name Explanation
a Machine Information The timing when production management information to be
displayed is acquired
b Lot name The name of the production lot
c Date The time when production management information to be displayed
is acquired
LNB3-1008_E
a
b
LNB3-1009_E
a
b
LNB3-1015_E
a
b
c
LNB3-1016_E
a
b
c
NPM
LNB
3.1 Production Management Information
EJM9BE-MB-03L-20 Page 3-9

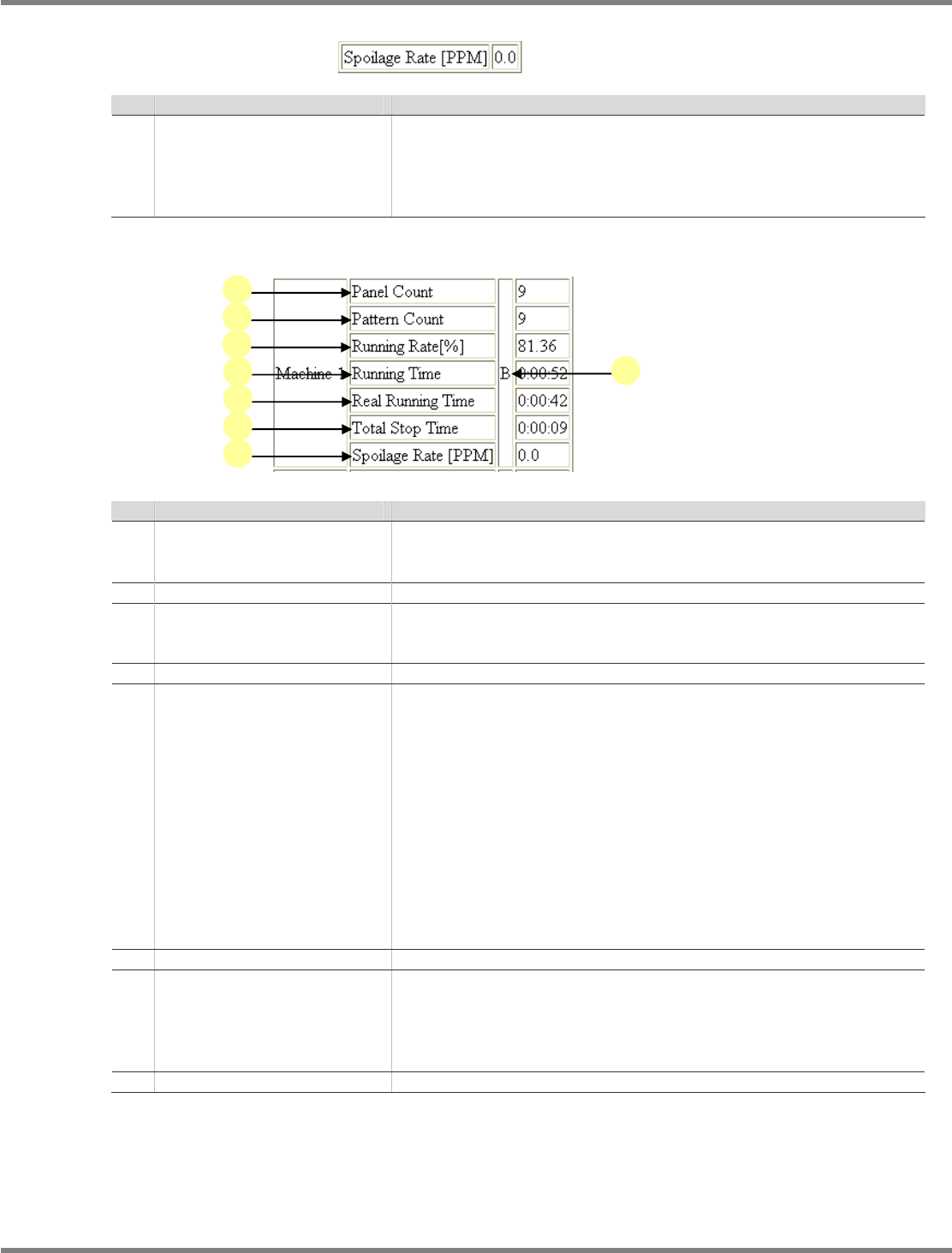

E) Line information
Name Explanation
Spoilage Rate [PPM] The spoilage rate is calculated using the following formula.
Error sum total / Total pickup count
×
1000000
∗
Error sum total is a sum total of pickup errors, recognition errors,
drop errors, placement errors, thickness errors, and drop errors of
the transfer unit.
F) Production information
Name Explanation
a Panel Count The number of PCBs passed through the line
(Production count = No. of post-placement PCBs
+
No. of PCBs just
passed through)
b Pattern Count The number of patterns actually produced (placed)
c Running Rate[%] The rate of the time during which the machine actually performs the
placement process in the production mode
(Operation rate = Real run time / Run time)
d Running Time The time in the production mode
e Real Running Time Definitions of single-lane and dual-lane are different.
・
Single-lane:
The time found by subtracting the one while placement is stopped,
owing to an error or a wait for upstream/downstream processes,
from the one in the production mode
(Real run time = Run time
−
Total downtime)
・
Dual-lane:
The time found by subtracting the one while placement is stopped,
owing to an error or a wait for upstream/downstream processes, and
the transport time from the one in the production mode
(Real run time = Run time
−
Total downtime – Transport time)
∗
When the machine runs with dual-lane at optimum condition, there
will be no loss of transport time.
f Total Stop Time The machine downtime during production
g Spoilage Rate [PPM] The spoilage rate is calculated using the following formula.
Error sum total / Total pickup count
×
1000000
∗
Error sum total is a sum total of pickup errors, recognition errors,
drop errors, placement errors, thickness errors, and drop errors of
the transfer unit.
h B Displayed when the target machine is the bottleneck machine.
LNB3-1017_E
LNB3-1010_E
a
b
c
d
e
g
f
h
