NPM Safety Precautions Page S-50 EJM9BE-SF-03N-20 Disposal of air spring This machine uses the air spring to op en/close covers . It is very dangerous to dispose of it as it is, because high-pressure ai r is sealed into …
NPM
Safety Precautions
EJM9BE-SF-03N-20 Page S-49
Serial number plate
NPM conveyor (Option)
Model ID Model No.
NPM LNB conveyor NL-CON1 NM-EJK4A
NPM HUB conveyor NH-CON1 NM-EJK5A
NPM conveyor L N-CONL1 NM-EJK6A
NPM conveyor R N-CONR1 NM-EJK7A
Actually,
∗
is replaced with a numeric value.
EJM9B-AG00
NPM LNB conveyor
NPM HUB conveyor
NPM conveyor L
NPM conveyor R
∗∗∗∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗∗∗∗∗∗∗
∗
∗
∗
∗∗∗
∗∗∗
∗∗∗∗∗∗∗∗∗∗
NH-CON1
NM-EJK5
A
NPM
Safety Precautions
Page S-50 EJM9BE-SF-03N-20
Disposal of air spring
This machine uses the air spring to open/close covers. It is very dangerous to dispose of it as it is,
because high-pressure air is sealed into it. Before disposal, be sure to purge the air.
Locations where the air spring is used
Removing air spring
Turn the hexagon socket head cap screws counterclockwise and remove the spring.
Disposing of air spring
Drill a hole in the spring and purge the air from it completely.
EJM9B-AB01
1D4C-406E
Air spring
Hexagon socket head
cap screw
1B4C-442E
Drilled hole
15 mm to 20 mm
Range to drill the air spring
Risk of injury of your head or eyes during work.
Wear a cloth hat or a hard hat and protective goggles during maintenance
work
CAUTION
NPM
Safety Precautions
EJM9BE-SF-03N-20 Page S-51
Disposal or recycling of components containing mercury
NOTICE
This product has a fluorescent lamp that contains mercury. Disposal may be
regulated in your community due to environmental considerations. Please dispose of
or recycle it in conformity with the laws or regulations of your country, or contact your
local authorities for more information. And information posted on Panasonic group
Web site can be a good reference as well.
Panasonic website: http//www.panasonic.com/environmental

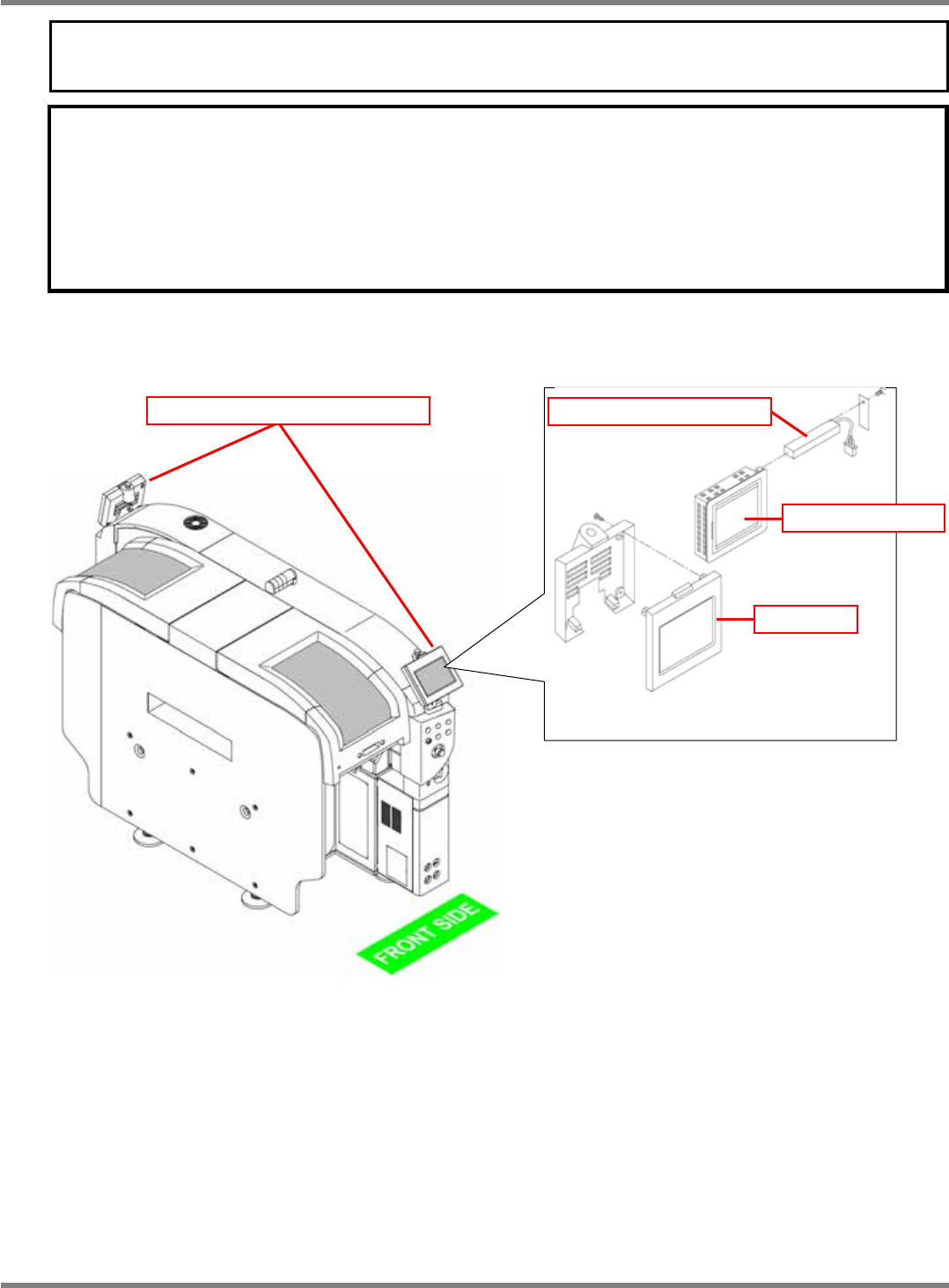

Locations where the fluorescent lamp (the backlight) is used
EJM9B-AB01
EJM9B-AJ00
Color touch panel
Fluorescent lamp (Backlight)
Cover
Color touch panel (Two lamps in use)
