NPM Safety Precautions EJM9BE-SF-03N-20 Page S-49 Serial number plate NPM conveyor (Option) Model ID Model No. NPM LNB conveyor NL-CON1 NM-EJK4A NPM HUB conveyor NH-CON1 NM-EJK5A NPM conveyor L N- CONL1 NM-EJK6A NPM co…
NPM
Safety Precautions
Page S-48 EJM9BE-SF-03N-20
Serial number plate
The serial number plate indicating the product name (Model ID) and serial number of the machine is pasted on
the following location.
NPM
Actually,
∗
is replaced with a numeric value.
EJM9B-AD01
∗∗∗∗
∗∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗∗∗∗∗
∗
∗
∗
∗∗∗
∗
∗
∗
∗∗∗∗∗∗∗∗∗∗
NPM
NM-EJM9B
NPM
Safety Precautions
EJM9BE-SF-03N-20 Page S-49
Serial number plate
NPM conveyor (Option)
Model ID Model No.
NPM LNB conveyor NL-CON1 NM-EJK4A
NPM HUB conveyor NH-CON1 NM-EJK5A
NPM conveyor L N-CONL1 NM-EJK6A
NPM conveyor R N-CONR1 NM-EJK7A
Actually,
∗
is replaced with a numeric value.
EJM9B-AG00
NPM LNB conveyor
NPM HUB conveyor
NPM conveyor L
NPM conveyor R
∗∗∗∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗∗∗∗∗∗∗
∗
∗
∗
∗∗∗
∗∗∗
∗∗∗∗∗∗∗∗∗∗
NH-CON1
NM-EJK5
A
NPM
Safety Precautions
Page S-50 EJM9BE-SF-03N-20
Disposal of air spring
This machine uses the air spring to open/close covers. It is very dangerous to dispose of it as it is,
because high-pressure air is sealed into it. Before disposal, be sure to purge the air.

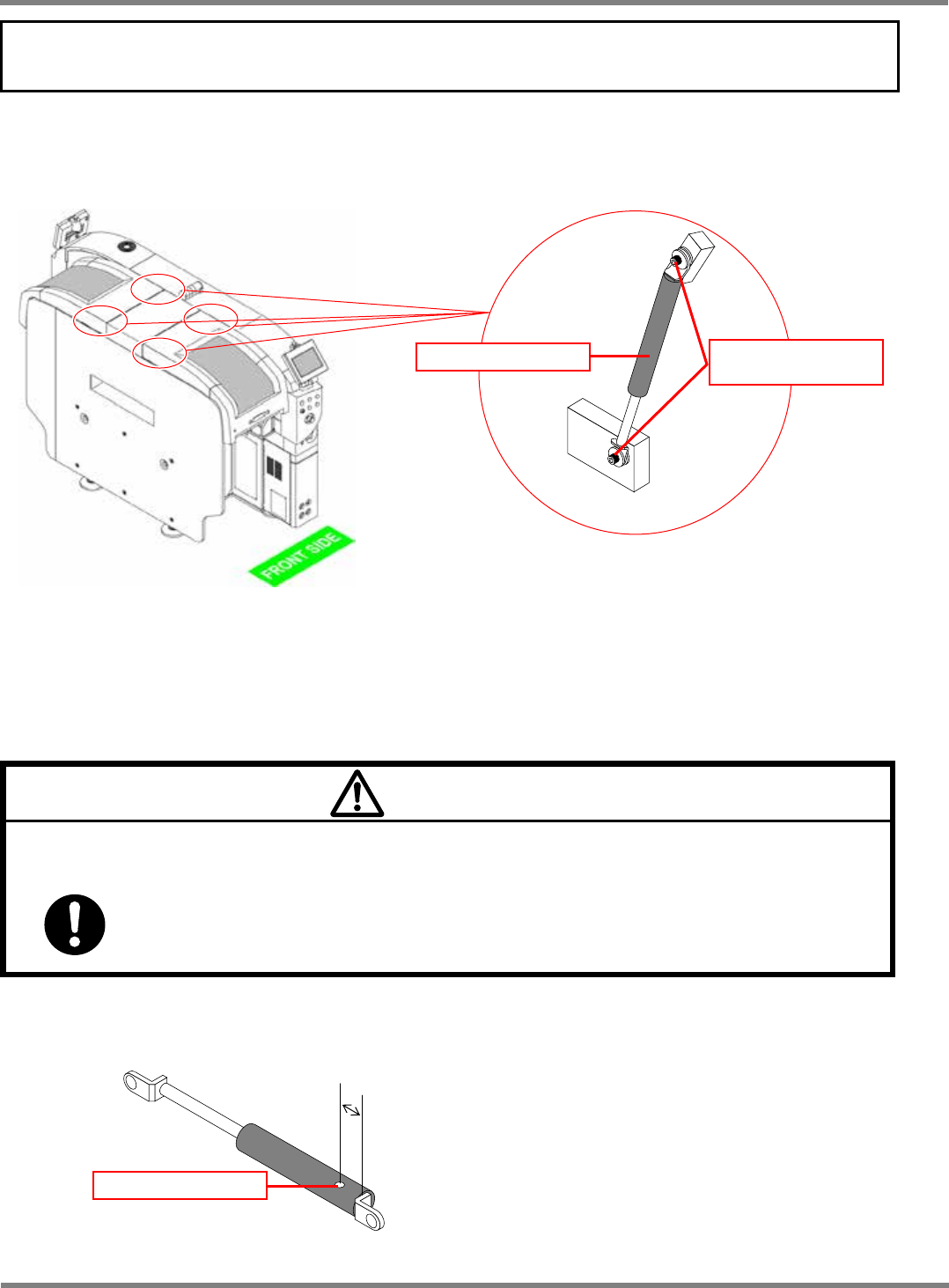

Locations where the air spring is used
Removing air spring
Turn the hexagon socket head cap screws counterclockwise and remove the spring.
Disposing of air spring
Drill a hole in the spring and purge the air from it completely.
EJM9B-AB01
1D4C-406E
Air spring
Hexagon socket head
cap screw
1B4C-442E
Drilled hole
15 mm to 20 mm
Range to drill the air spring
Risk of injury of your head or eyes during work.
Wear a cloth hat or a hard hat and protective goggles during maintenance
work
CAUTION
