NPM LNB 3.3 Production Machine Screen Print EJM9BE-MB-03L-20 Page 3-21 Changing the list information 1 Select the desired machine number from the “Machine Number” combo box, and click [Refine]. • All the registered mac…
NPM
LNB
3.3 Production Machine Screen Print
Page 3-20 EJM9BE-MB-03L-20
3.3 Production Machine Screen Print
You can browse the production machine screen.
1
Choose [Machine screen printing]
from the menu.
•
The list of the production machine data of all
the registered machines is displayed.
2
Select the desired production
machine data from the production
machine data list.
•
The selected production machine screen data
is displayed.
lnb3-3001
_
e
2
lnb3-3002_e

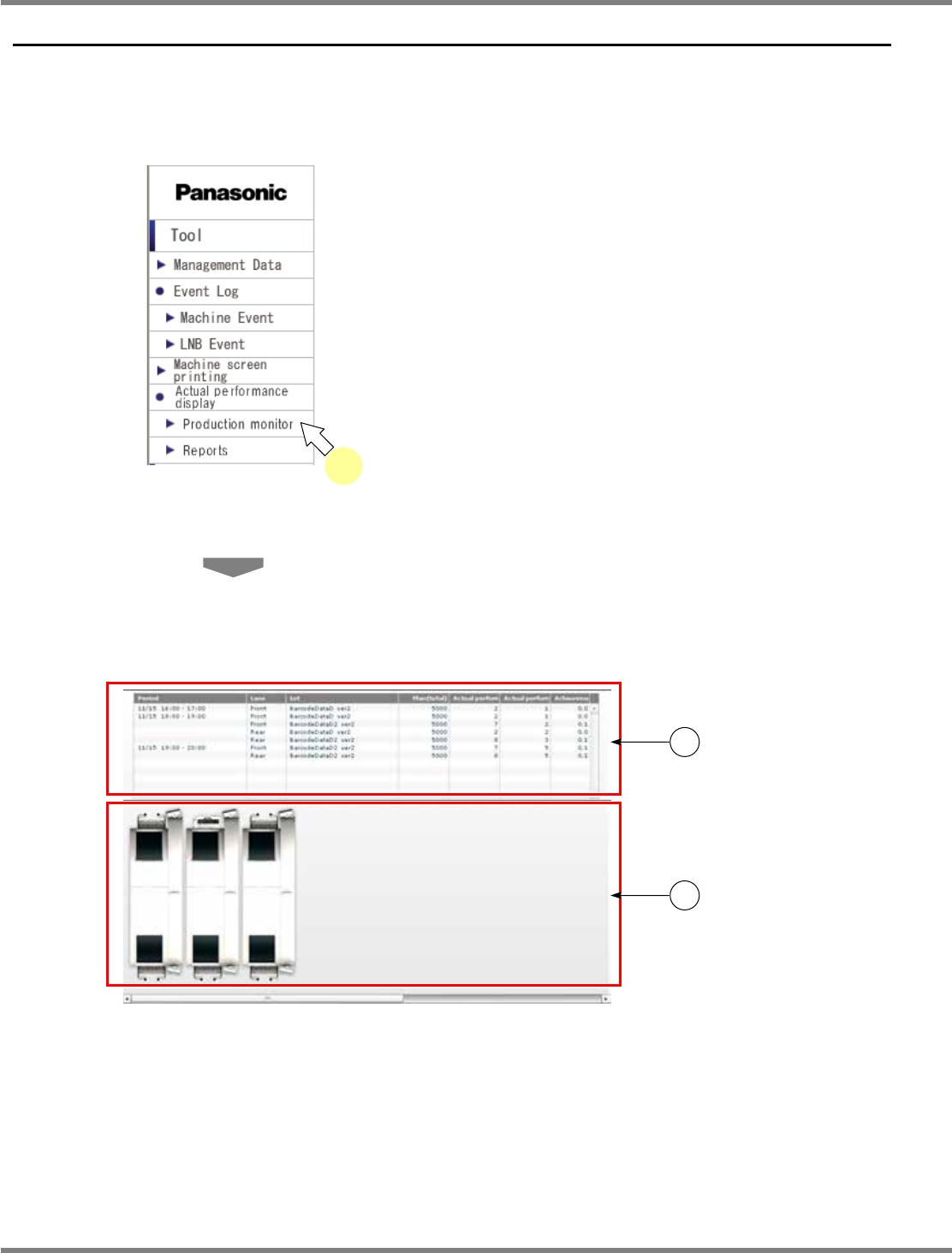

lnb3-1001_e
1
NPM
LNB
3.3 Production Machine Screen Print
EJM9BE-MB-03L-20 Page 3-21
Changing the list information
1
Select the desired machine number
from the “Machine Number” combo
box, and click [Refine].
•
All the registered machine numbers and “ALL”
are set in the “Machine Number” combo box.
•
The list of the production machine data of the
specified machine is displayed.
lnb3-3001_e
1 1
lnb3-3003_e
NPM
LNB
3.4 Result Information Display
Page 3-22 EJM9BE-MB-03L-20
3.4 Result Information Display
You can browse the production result information.
3.4.1 Production Status Monitor
1
Choose [Production monitor] in
[Actual performance display] from the
menu.
•
The production status monitor is displayed.
The production status monitor consists of c
“dispatching section” and d “line status monitor
section.”
For information about the displayed contents
and operations, see the explanation on the
following pages.
lnb3-1001_e
1
lnb3-4001_e
1
2
