NPM
LNB
4.3 Advanced Setting
Page 4-16 EJM9BE-MB-04L-20
Calculation method setting items
Shown below are the items for calculation method setting.
Item
Explanation
Remaining setting for warning
∗
1
Set the thresholds for remainder warning.
Warning start time for tray
When the remaining production time for tray falls to the set
time and below, remainder warning starts.
The remaining production time for tray refers to the time that
elapses before the remaining parts count of tray becomes
“0.”
Warning start time for feeder When the remaining production time for feeder falls to the
set time and below, remainder warning starts.
The remaining production time for feeder refers to the time
that elapses before the remaining tape length of reel
reaches the splicing limit length.
The warning start
producibility number of
sheets
When the remaining production count for machine falls to
the set count and below, remainder warning starts.
The warning start length of
the feeder
When the remaining tape length of reel on feeder reaches
(set length
+
splicing limit length), remainder warning starts.
Splicing limit length
This is the length of tape that tape splicing can be done.
When the remainder of tape has fallen to this limit length
and below, tape splicing cannot be done.
Error trend setting
∗
2
Set the number of samples for the calculation of correlation
coefficient of error trend.
Sample PCB number of
correlation coefficient
Set the production count to be used for the calculation of
correlation coefficient.
Sample time of correlation
coefficient
Set the production time to be used for the calculation of
correlation coefficient.
PCB (s) to Judge Performance Set the function to display on the DGS whether the
production performance exists in the production data.
PCB (s) to Judge
Performance
Set the number of PCBs produced for production
performance determination.
Summary per Lane in Bottleneck
Machine
Set the method to display the bottleneck machine by the
signal tower.
per Lane/per Machine If ‘per Lane’ is selected, the bottleneck lamp of the machine
blinks indicating that there is a bottleneck in a line. Lamps of
two machines may blink at the same time.
If ‘per Machine’ is selected, the lamp of one machine blinks
indicating that there is a bottleneck.
Dual Lane Operation Rate
Calculation Method
Set the method calculating the operating rate of whole
machines in the production management information.
Hide/ F/R Lane Total/ F/R
Lane Average
If ‘Hide’ is selected, the operating rate of whole machines is
not displayed.
If ‘F/R Lane Total’ is selected, the total of both front and rear
lanes is displayed.
If ‘F/R Lane Average’ is selected, average of both front and
rear lanes is displayed.
∗
1
For the remainder warning setting, if you enter ‘0’ in the threshold, the warning function
related to the corresponding threshold is regarded as ‘OFF’ and remainder warning will not
occur.
∗
2
The sample for the calculation of correlation coefficient will be adopted if either of the two
conditions above is satisfied. When ‘0’ is input in one of the boxes, only the other sample is
used for the calculation of correlation coefficient.
NPM
LNB
4.3 Advanced Setting
EJM9BE-MB-04L-20 Page 4-17
Item
Explanation
Production control information
automatic output setting
Set the function that allows production control information to
be automatically output.
Valid/Invalid The function that allows production control information to be
automatically output becomes valid by selecting valid.
Output folder name Set the name of a folder that outputs production control
information.
The output folder is created under the folder “othersystem” in
LNB.
Output time Set the time to output production control information.
NPM
LNB
4.3 Advanced Setting
Page 4-18 EJM9BE-MB-04L-20

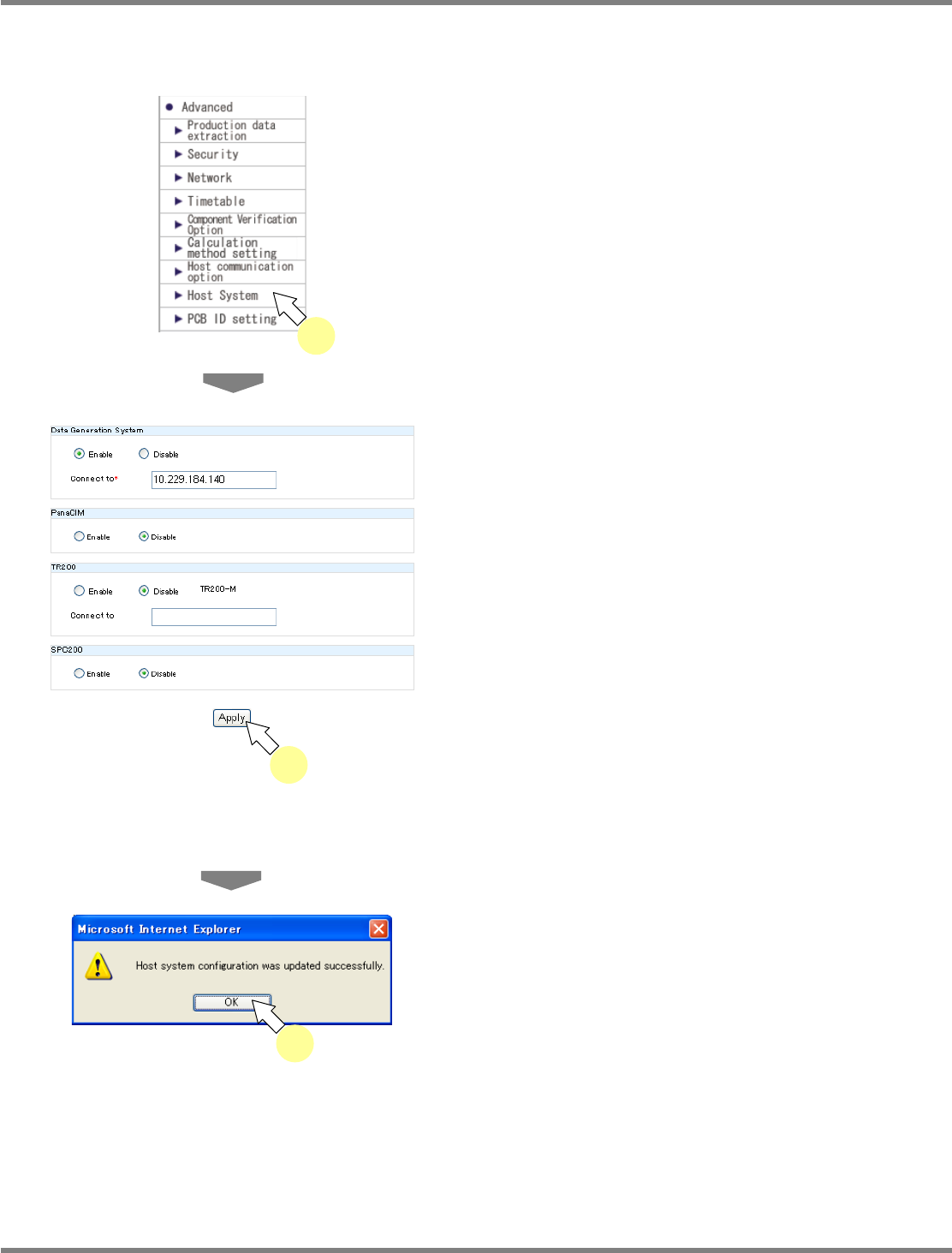

4.3.6 Host System Setting
You can set the host system.
1
Choose [Host System] in [Advanced]
from the menu.
•
The <Host System> screen is displayed.
2
Enter the data creating system, the
PanaCIM setting, the TR200 setting
and the SPC200 setting, and click
[Apply].
•
The data creating system, TR200, PanaCIM,
and SPC200 are product names of Panasonic
Factory Solutions Co., Ltd.
∗
To use each host system, you need to register
the license. If the license is not registered, the
message “The license is not registered.”
appears, and you cannot configure the
connection settings.
•
The message of host system
configuration-update completion appears.
3
Click [OK].
lnb4-3024_e
2
lnb4-3001_e
1
lnb4-3025_e
3
