NPM LNB 1.3 System Configuration Page 1-4 EJM9BE-MB-01L-20 1.3 System Configuration NL-CON1 (NM-EJK4A) contains an internal FA dedi cated PC, in which LNB software is installed. (Hereafter LNB software is abbreviated as …

100%1 / 170
NPM
LNB
1.2 Line Configuration
EJM9BE-MB-01L-20 Page 1-3
1.2 Line Configuration
NPM and conveyors are located in the NPM line configuration as follows.
Case 1
Only NPM is included in the line configuration (when 15 machines or less are coupled).
Case 2
Only NPM is included in the line configuration (when 16 to 30 machines are coupled).
∗
The NPM LNB conveyor is required on the left of the line.
Case 3
Any machine other than NPM is included in the line configuration (when 15 machines or less are
coupled).
Case 4
Any machine other than NPM is included in the line configuration (when 16 to 30 machines are
coupled).
∗
When any machine other than NPM is included in the line configuration, an NPM conveyor is
required between NPM and the machine other than NPM. (Cases 3 and 4)
NPM
1
…
NPM LNB
conveyor
NL-CON1
NM-EJK4A
NPM
2
NPM
15
NPM
conveyor R
N-CONR1
NM-EJK7A
NPM
14
NPM
1
…
NPM LNB
conveyor
NL-CON1
NM-EJK4A
NPM
2
NPM
30
NPM HUB
conveyor
NH-CON1
NM-EJK5A
NPM
29
NPM
1
NPM LNB
conveyor
NL-CON1
NM-EJK4A
NPM
7
NPM
conveyor R
N-CONR1
NM-EJK7A
…
Other
than
NPM
NPM
8
NPM
15
NPM
conveyor R
N-CONR1
NM-EJK7A
…
NPM
conveyor L
N-CONL1
NM-EJK6A
NPM
1
NPM LNB
conveyor
NL-CON1
NM-EJK4A
NPM
15
NPM
conveyor R
N-CONR1
NM-EJK7A
…
Other
than
NPM
NPM
16
NPM
30
NPM HUB
conveyor
NH-CON1
NM-EJK5A
…
NPM
conveyor L
N-CONL1
NM-EJK6A
NPM
LNB
1.3 System Configuration
Page 1-4 EJM9BE-MB-01L-20
1.3 System Configuration
NL-CON1 (NM-EJK4A) contains an internal FA dedicated PC, in which LNB software is installed.
(Hereafter LNB software is abbreviated as LNB.)
LNB is an abbreviation for Line Network Box, which is a relay system connecting the machine
and NPM-DGS. Two or more machines are lined to control information intensively, download
production data, and compile the production management information.
Meanwhile, LWS is an abbreviation for Line Work Station, with which you can display the result
data kept in LNB through the browser on LWS. The PC you prepare is used for LWS. Without
installing software, you can access LNB using IE (Internet Explorer) 7.0 for the display.
In addition, NPM-DGS is an abbreviation for Data Generation System for NPM, which is software
to create production data.
∗
NPM-DGS is not included in this product.
∗
The LWS editor is a subset of NPM-DGS operated on LWS and connects to LNB to edit the
data on site.
Minimum configuration
This is used for the operation of one line.
One NL-CON1 is required.
LWS is shared with NPM-DGS.
Item
Quantity
No. of lines
1
No. of LNBs
1
No. of LWSs
1
∗
Shared with the data creating system
DGS software
FA-specific PC
LNB software
Extension conveyor
mechanism
Network equipment
Power equipment
PC for LWS shared with
NPM-DGS
(∗ Not included in this product)
IE7.0
Line NL-CON1
NPM
LNB
1.3 System Configuration
EJM9BE-MB-01L-20 Page 1-5

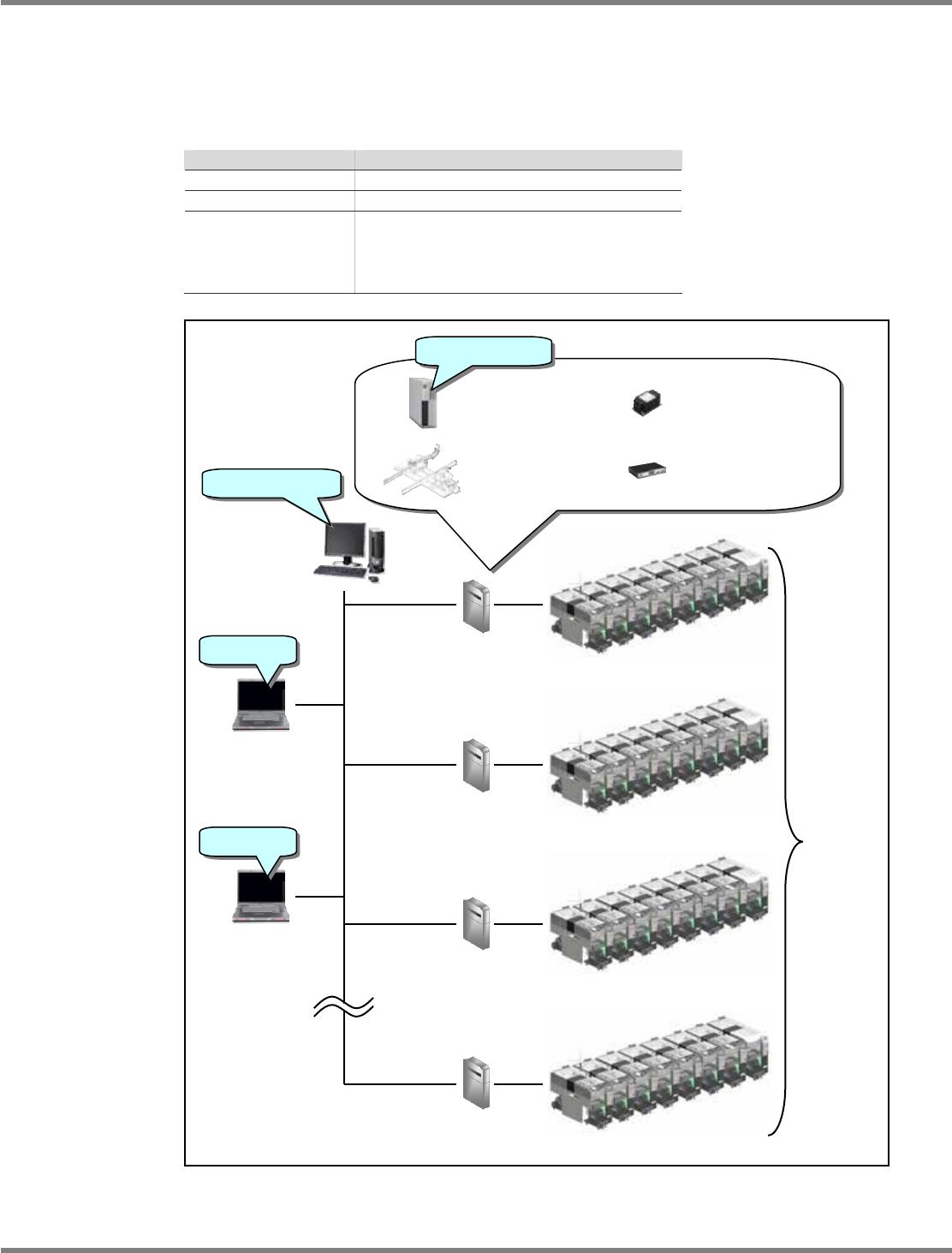

Normal configuration
This is used for the operation of two or more lines.
NL-CON1 as many as the number of lines is required.
We recommend using LWS as many as the number of lines. However, one or more LWS
enables operation because one LWS can connect to multiple NL-CON1. Prepare LWS as
needed.
Item Quantity
No. of lines
n
No. of LNBs
n
No. of LWSs
Arbitrary
∗
n recommended
∗
Up to one line of LNB connected
concurrently
FA-specific PC
LNB software
Extension conveyor
mechanism
Network equipment
Power equipment
Line NL-CON1
NPM-DGS
(∗ Not included
in this product)
n Line
LWS
IE7.0
DGS software
LWS
IE7.0
Line NL-CON1
Line NL-CON1
Line NL-CON1
