NPM
Safety Precautions
Page S-38 EJM9BE-SF-02N-24

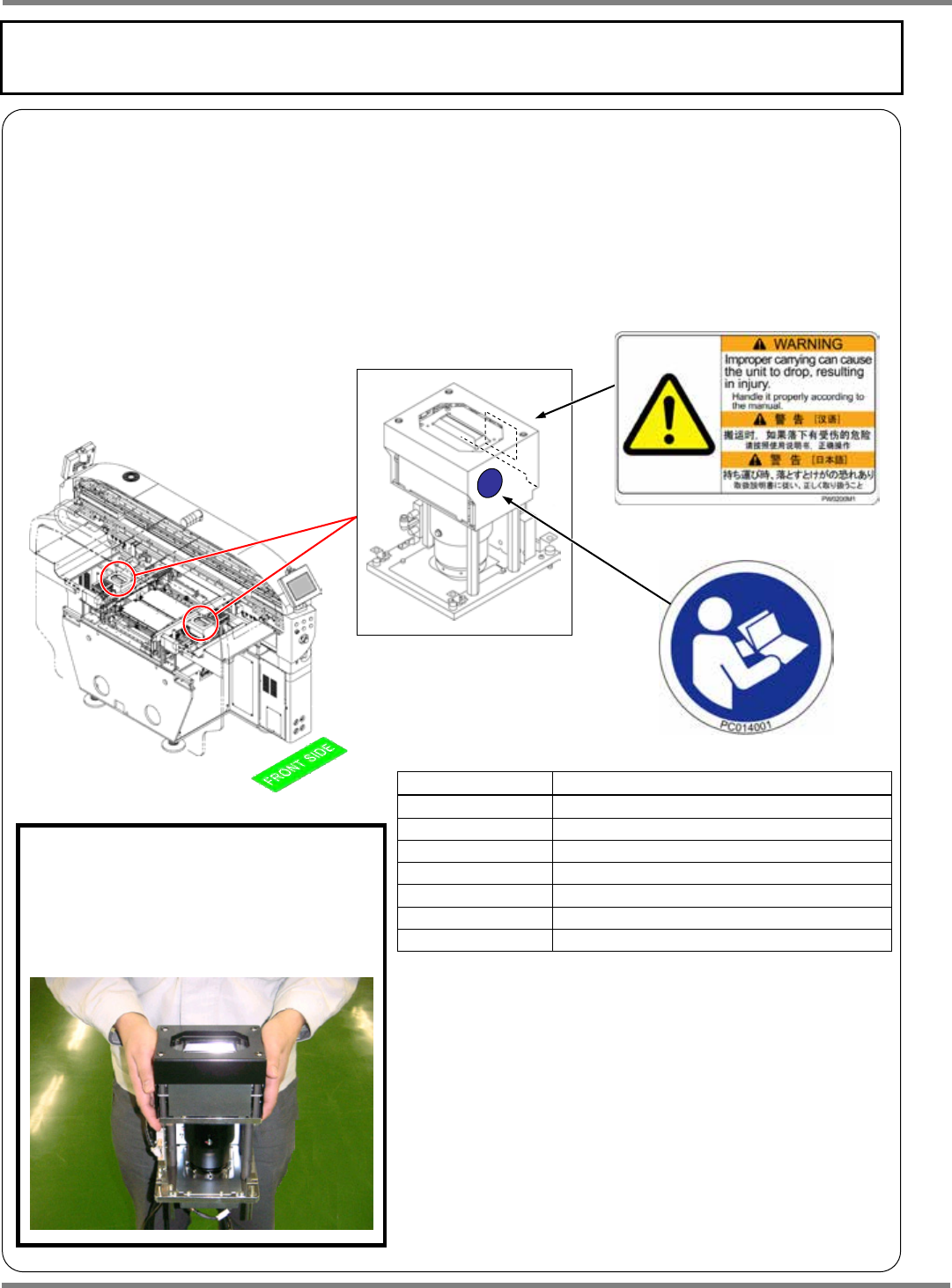

Handling of the line camera
Since the line camera complies with the Class 1 limits of IEC60825-1 (Laser Safety Standards), it is
basically safe under a normal usage pattern. In maintenance or operation, however, avoid looking
directly at it.
Line camera
The two cameras are installed in the front and rear of the machine respectively.
The maximum output of the LED components used in this machine is 15 mW.
The line camera has such
a structure as will not expose workers directly to the LED radiation if they open its cover. For safety’s
sake, however, never open the cover of the line camera.
Item LED specifications
Manufacturer
Panasonic Factory Solutions Co., Ltd.
Model number
N610067528AC
Wavelength 850 nm
Output 5.32 mJ
Class Class 1
Emission duration 6.2 s (Maximum)
Installation position See the left figure.
EJM9B-AR00
N610067528AA-01A00
NOTICE
Carry the line camera with both
hands, otherwise you may potentially
drop it and be injured.
NPM
Safety Precautions
EJM9BE-SF-02N-24 Page S-39

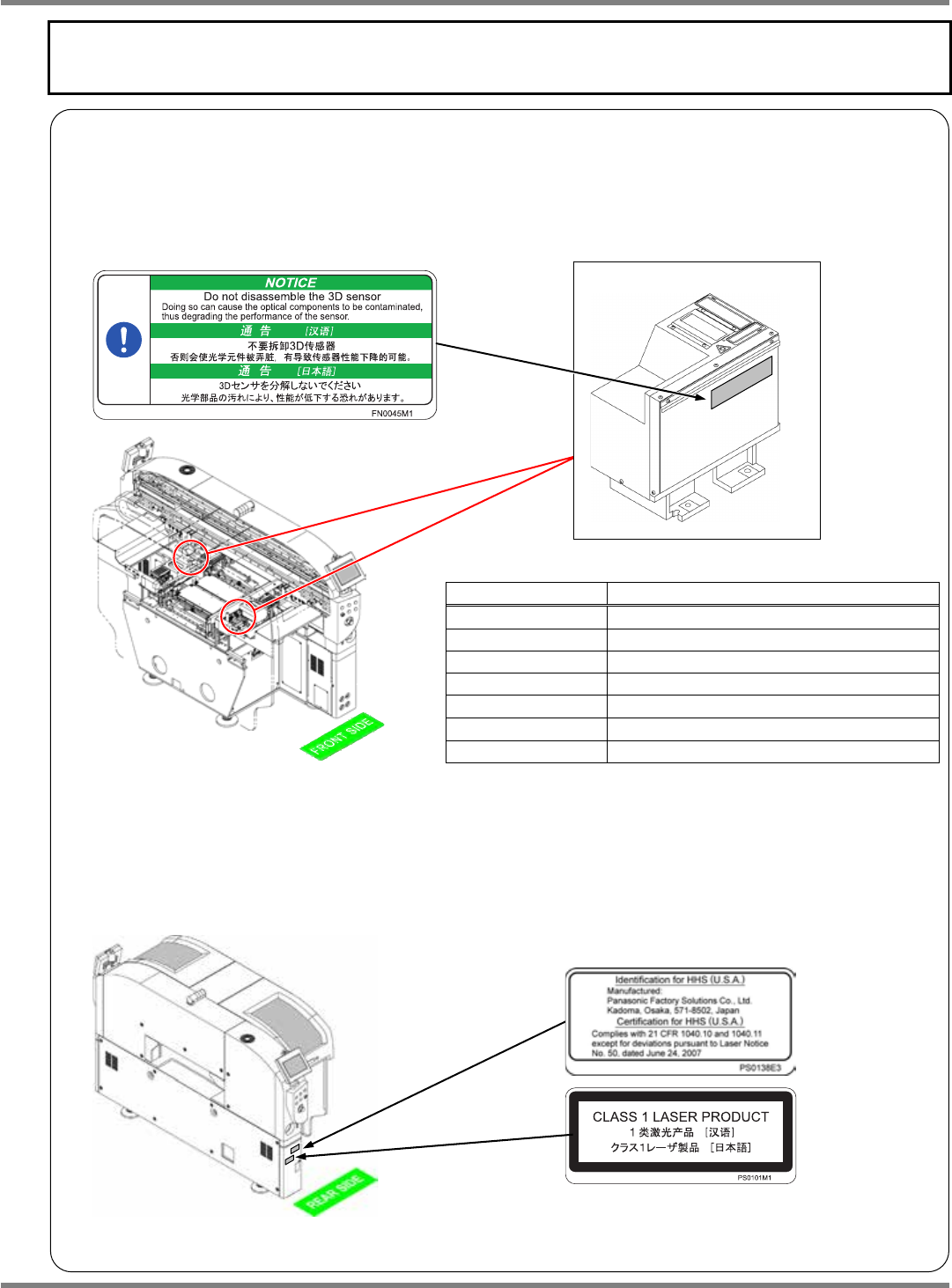

Handling of the 3D sensor (Optional)
The 3D sensor can be installed on all the tables. This unit is optional.
The maximum output of the laser components used in the 3D sensor is 4.32 mW.
Never open the cover because doing so may cause the internal optical components to be contaminated,
and this degrades the performance.
In case of failure, contact us.
3D sensor specifications (Individual)
Item
Laser specifications
Manufacturer
Panasonic Factory Solutions Co., Ltd.
Model number
N610059200AB
Wavelength
775 ~ 800 nm
Output
4.32 mW (Maximum)
Class
Class 3B
Detection method
Scan every 250
µ
s
Installation position See the left figure.
Laser class specifications of this machine
Although the 3D sensor unit of this machine uses a Class 3B laser, the safety switches (interlocks) on the
safety covers prevent operators from being exposed to the laser.
Therefore, this machine is a Class 1 laser product.
Laser class label on the machine
∗
EJM9B-AR00
EJM9B-AD01
NPM
Safety Precautions
Page S-40 EJM9BE-SF-02N-24

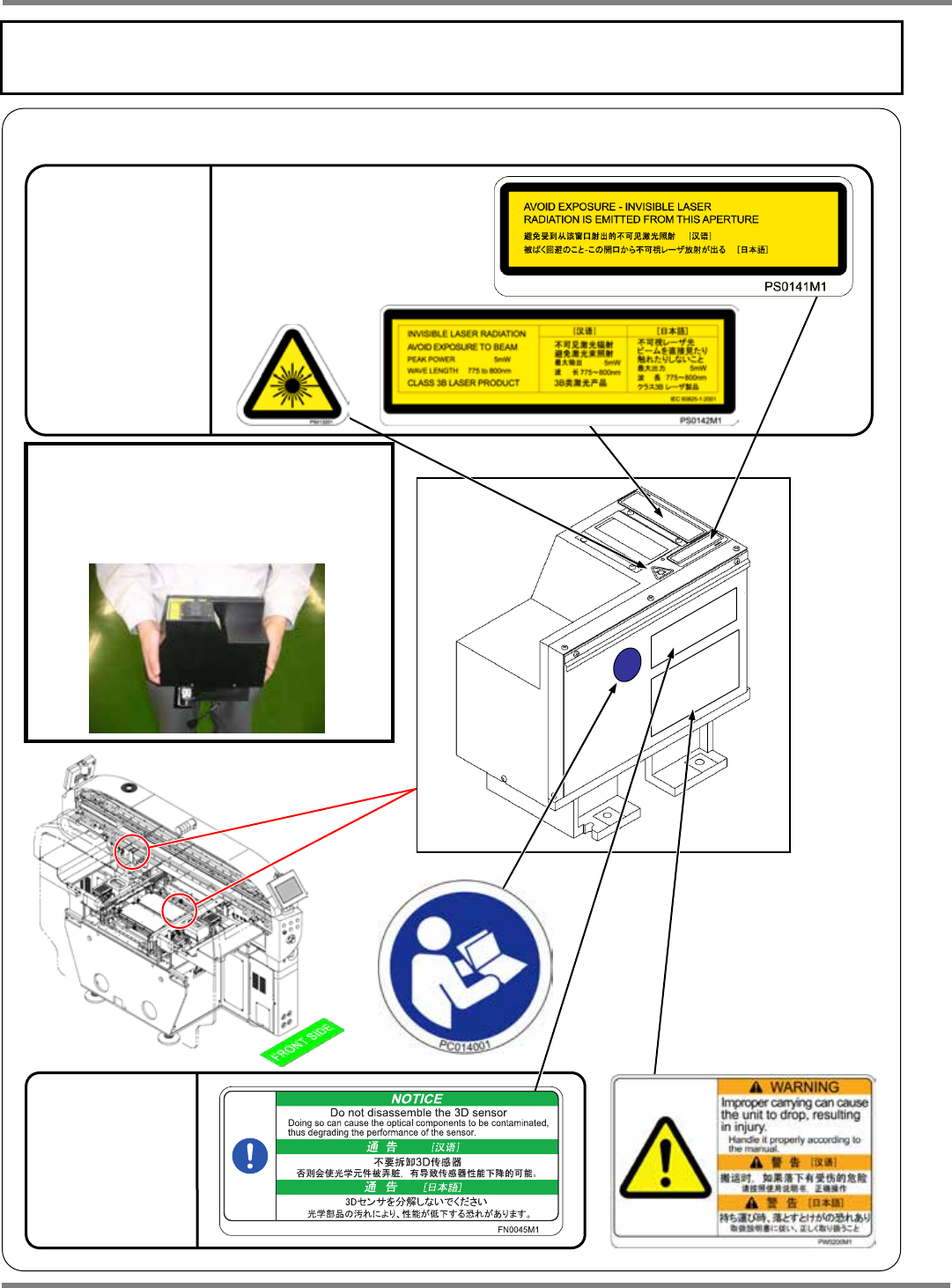

Handling of the 3D sensor (Optional)
Labels pasted on the 3D sensor (optional) for safety
EJM9B-AR00
Notice label
(One types)
NOTICE
In carrying the 3D sensor, use both
hands because you may be injured
if dropping it.
IEC warning
labels
(Three types)
