4.1 LNB Configuration Information
EJM9BE-MB-04L-20 Page 4-3

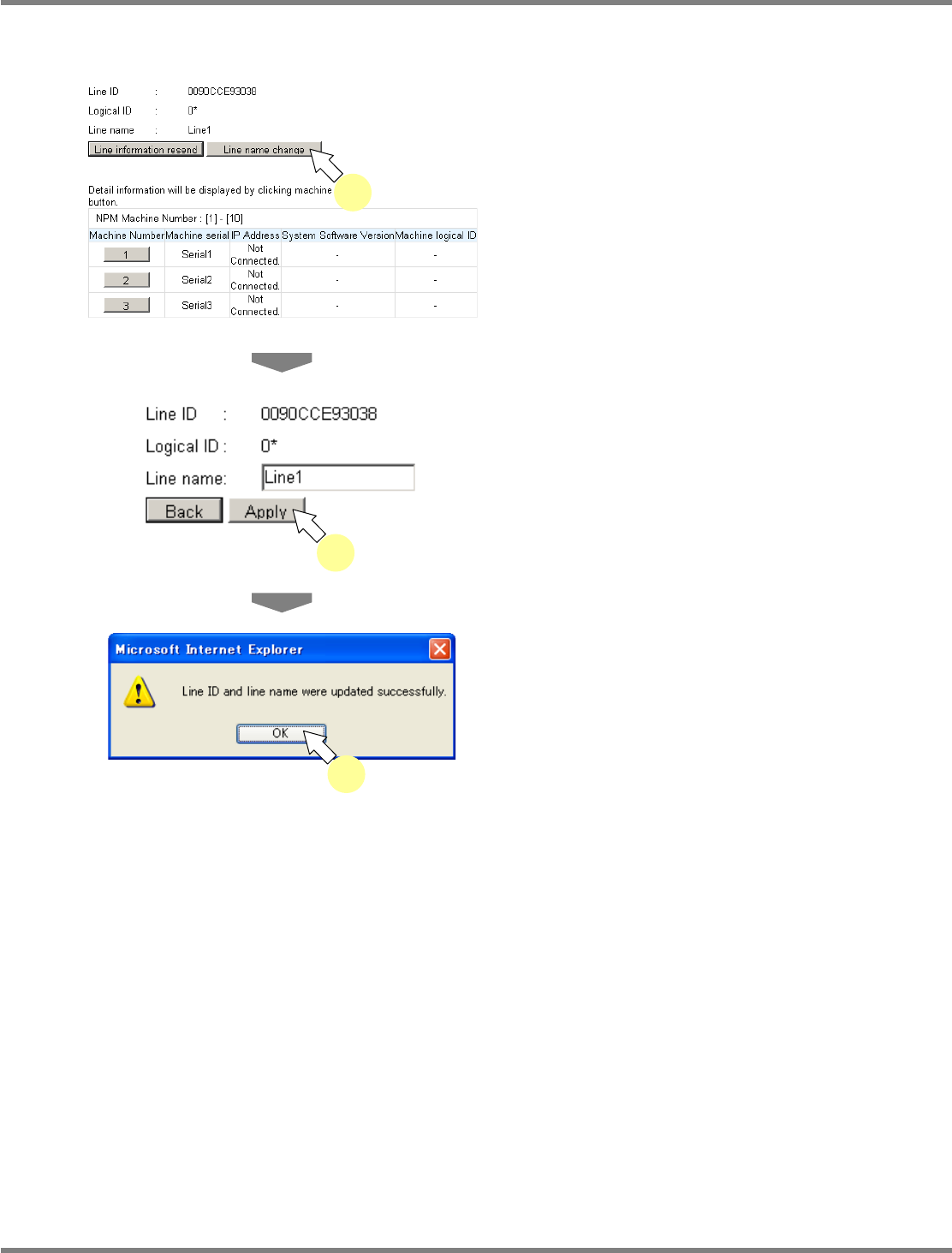

Changing the line name
You can change the line name at the <LNB Configuration> screen.
1
Click [Line name change] on the
<LNB Configuration> screen.
•
Now the line name can be changed.
2
Enter the changed information and
click [Apply].
•
The update completion dialog opens, and the
change takes effect.
3
Click [OK].
lnb4-1005_e
2
lnb4-1002_e
1
lnb4-1006_e
3
NPM
LNB
4.2 Easy Setting
Page 4-4 EJM9BE-MB-04L-20
4.2 Easy Setting
You can configure the basic settings for production.
Easy setting is displayed in order: “Line Name”
→
“Backbone Network”
→
“Host
System”
→
“Timetable”
Shown below is the procedure for easy setting.

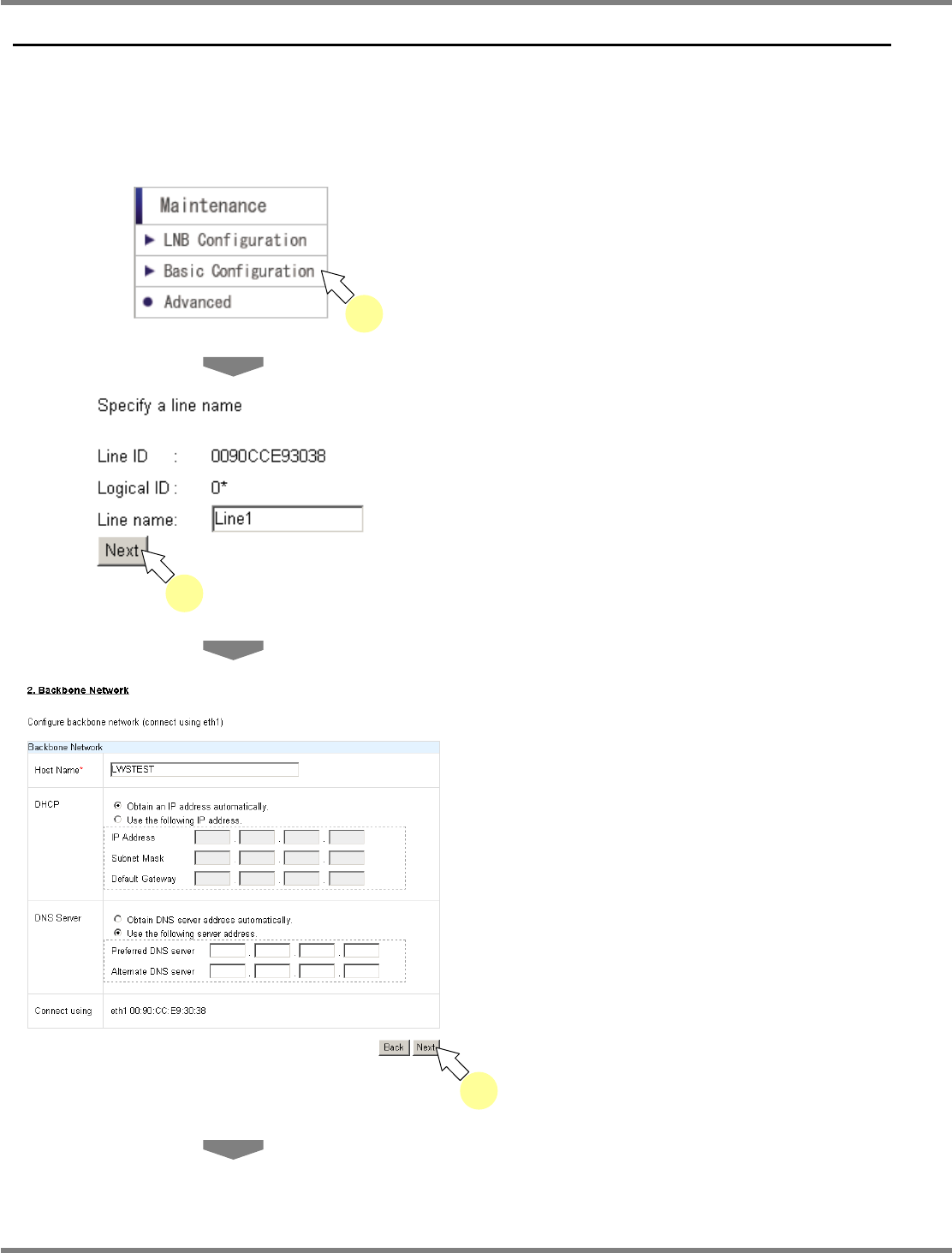

1
Choose [Basic Configuration] from
the menu.
•
The <Line ID> screen is displayed.
2
Enter the line name, and click [Next].
•
The <Backbone Network> screen is
displayed.
3
Enter the host name, DHCP, and
DNS server information, and click
[Next].
lnb4-2002_e
3
lnb4-1001_e
1
lnb4-2001_e
2
NPM
LNB
4.2 Easy Setting
EJM9BE-MB-04L-20 Page 4-5
•

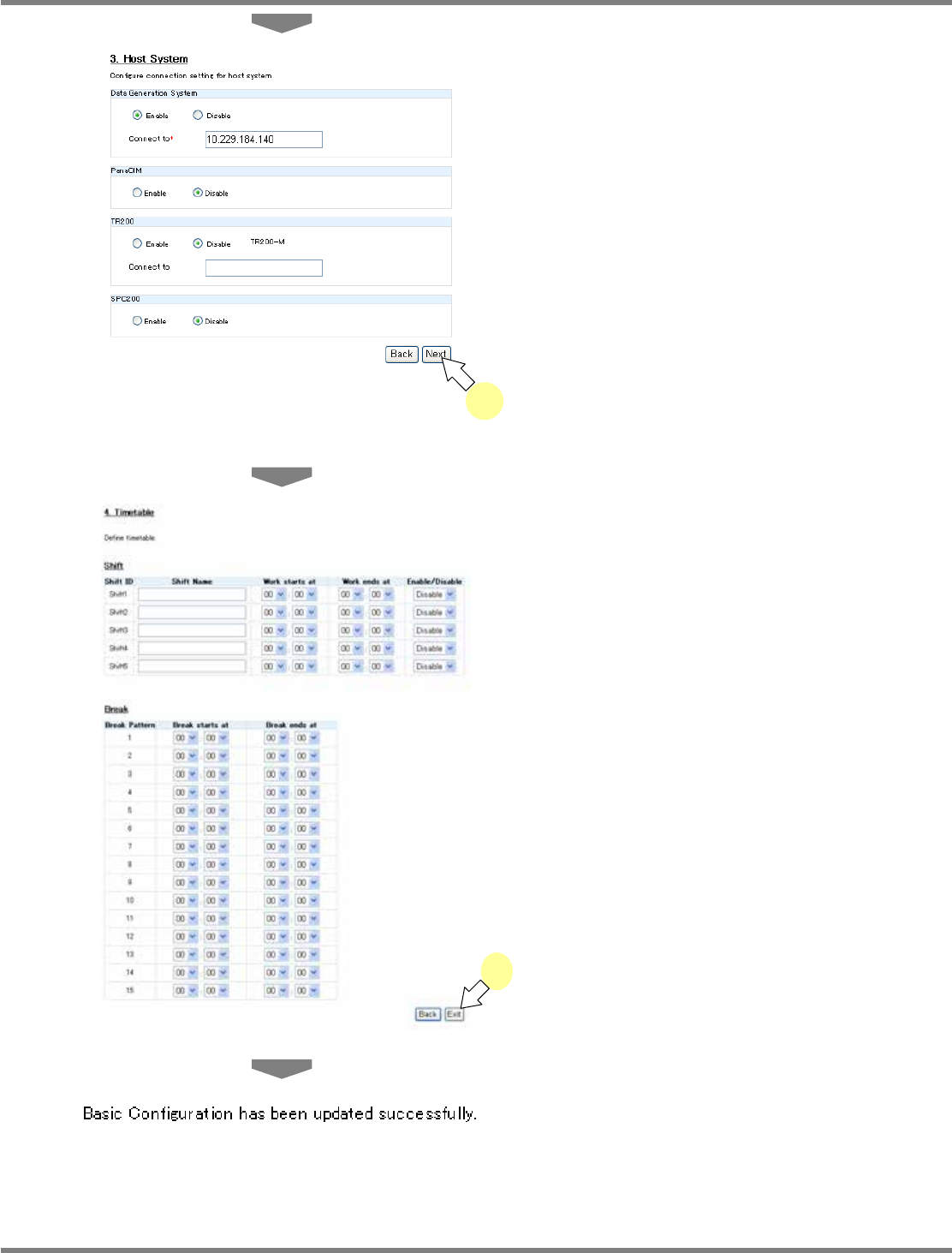

The <Host System> screen is displayed.
4
Enter the data creating system, the
PanCIM setting, the TR200 setting
and the SPC200 setting, and click
[Next].
•
The data creating system, PanaCIM, TR200,
and SPC200 are product names of Panasonic
Factory Solutions Co., Ltd.
∗
To use each host system, you need to register
the license. If the license is not registered, the
message “The license is not registered.”
appears and you cannot configure the
connection settings.
•
The <Timetable> screen is displayed.
5
Configure the shift settings (shift
name, work start time, work end time,
enable/disable) and the break settings
(break start time, break end time), and
click [Exit].
•
The message of easy setting completion
appears.
lnb4-2003_e
4
lnb4-2005_e
lnb4-2004_e
5
