NPM LNB 3.1 Production Management Information EJM9BE-MB-03L-20 Page 3-11 Name Explanation a Power ON Time The machine running time b Running Time The time in the production mode c Real Running Time Definitions of single-…
NPM
LNB
3.1 Production Management Information
Page 3-10 EJM9BE-MB-03L-20
G) Stop information by machine
LNB3-1011_E
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
z
aa
ab
ac
ad
w
x
y
NPM
LNB
3.1 Production Management Information
EJM9BE-MB-03L-20 Page 3-11
Name
Explanation
a Power ON Time
The machine running time
b Running Time
The time in the production mode
c Real Running Time
Definitions of single-lane and dual-lane are different.
・
Single-lane:
The time found by subtracting the one while placement is
stopped, owing to an error or a wait for upstream/downstream
processes, from the one in the production mode
(Real run time = Run time
−
Total downtime)
・
Dual-lane:
The time found by subtracting the one while placement is
stopped, owing to an error or a wait for upstream/downstream
processes, and the transport time from the one in the production
mode
(Real run time = Run time
−
Total downtime – Transport time)
∗
When the machine runs with dual-lane at optimum condition,
there will be no loss of transport time.
d Transfer Time
The time during which PCBs are transported
e Board Recognition Time
The time during which PCBs are recognized
f Placement Time
The time during which placement is carried out
g Total Stop Time
The machine downtime during production
h Wait Pre Process Time/Count
The time to wait for the upstream process and its count
i Wait Post Process Time/Count
The time to wait for the downstream process and its count
j Part Exhaust Stop Time/Count
The waiting time due to component empty and its count
k Cycle Stop Time/Count
The machine downtime due to single/cycle stop by an operator
and its count
l Cycle Error Stop Time/Count The machine downtime due to automatic single/cycle error stop
by the machine and its count
m Transfer Error Time/Count
The stop time due to PCB transport errors and its count
n Board Recognition Error
Time/Count
The total time of machine stop due to PCB transport errors and
teaching after the stop and its count
o No Restart Trouble Time/Count
The stop time due to emergency stops and its count
p
Discharge Recognition Error Stop
Time/Count
The stop time due to dummy recognition errors and its count
q Part Pickup Error Time/Count
The stop time due to pickup errors and its count
r Part Recognition Error Time/Count The stop time due to recognition errors and its count
s Part Drop Error Time/Count
The stop time due to dropping errors and its count
t Part Placement Error Time/Count
The stop time due to placement errors and its count
u Part Standing Error Time/Count
The stop time due to thickness errors and its count
v Transfer unit parts drop stop
time/Count
The stop time due to dropping errors of transfer unit parts and its
count
w Excess judgement stop time /
count
The stop time due to misjudgment and its count
x Waiting time coused by other
lane(s)/ count
The stop time due to influence of other lanes and its count
y Material Exhaust Error Stop
Time/Count
The stop time due to material (adhesive, etc.) empty errors and
its count
z Changeover Time
The time during which the changeover screen is displayed
aa Maintenance Time
The time during which the maintenance screen is displayed
ab Recipe Edit Time
The time during which the production data edit screen is
displayed
ac Unit Adjust Time
The time during which the unit adjustment screen is displayed
ad Other
The time during which other menu screens are displayed
NPM
LNB
3.1 Production Management Information
Page 3-12 EJM9BE-MB-03L-20

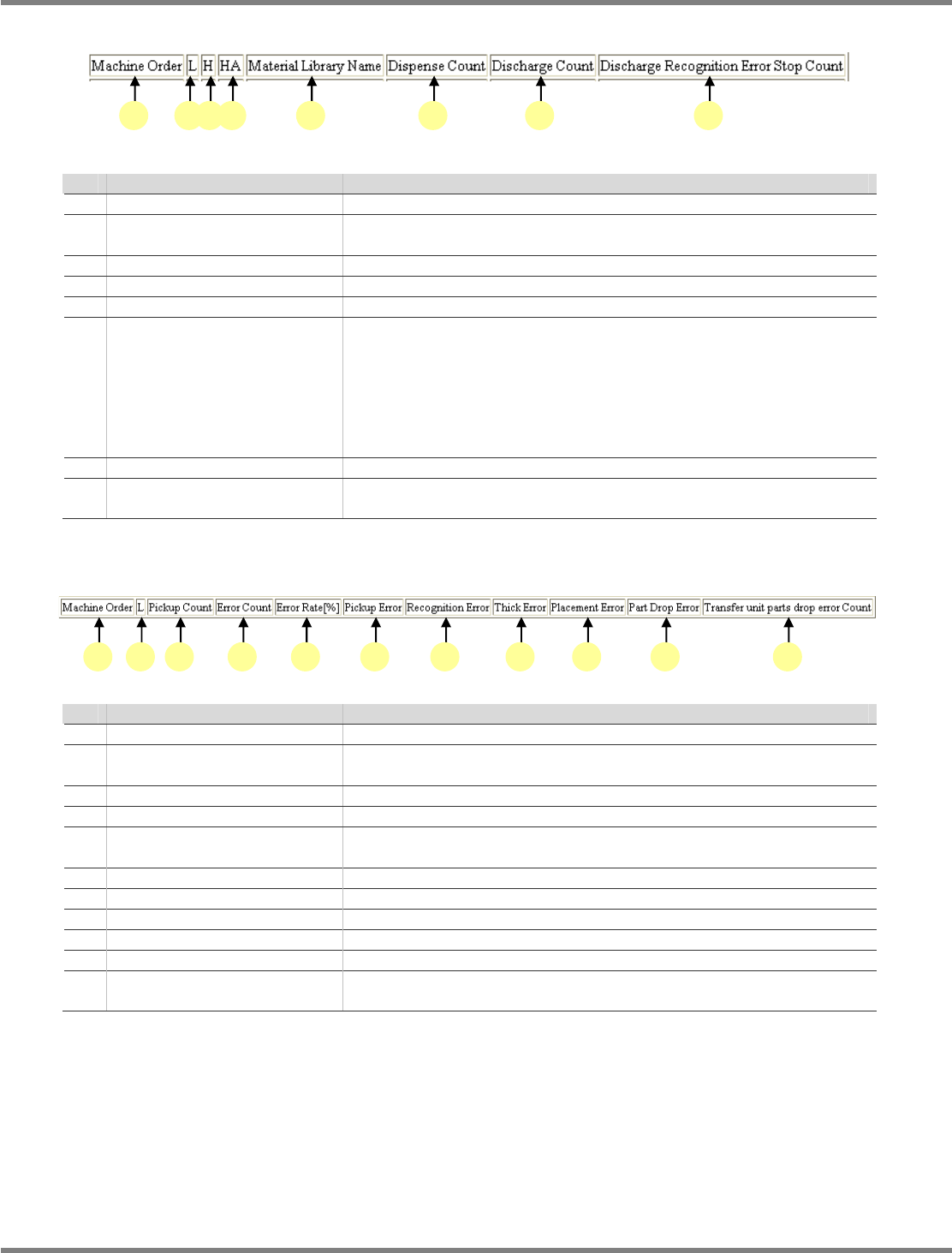

H) Bonding-related information
Name Explanation
a Machine Order The machine number
b L Production lane (F: Front / R: Rear)
∗
This field is displayed only when shift information is displayed.
c H The position of the head (1: Front / 2: Rear)
d HA The address of the nozzle holder
e Material Library Name The library name of materials (adhesive, etc.)
f Dispensing Count The number of times of dispensing
∗
The dispensing count is counted once each time a single
operation, such as moving, is performed. Likewise, even in the
case of the draw dispensing, the dispensing is counted each time
a single coordinate operation, such as moving to a dispensing
point or drawing, is performed. This item is displayed only with the
shift information display.
g Discharge Count The number of times of dummy dispensing
h Discharge Recognition Error
Stop Count
The number of times of dummy recognition error stop
I) Pickup information by machine
Name Explanation
a Machine Order The machine number
b L Production lane (F: Front / R: Rear)
∗
This field is displayed only when shift information is displayed.
c Pickup Count The number of pickup actions by the machine
d Error Count The number of errors occurred on the machine
e Error Rate[%] The rate of error occurrences against the pickup count of the
machine
f Pickup Error The number of pickup errors occurred on the machine
g Recognition Error The number of recognition errors occurred on the machine
h Thick Error The number of tombstoning errors occurred on the machine
i Placement Error The number of placement errors occurred on the machine
j Part Drop Error The number of drop errors occurred on the machine
k Transfer unit parts drop error
Count
The number of parts drop errors of the transfer unit occurred on the
machine
LNB3-1018_E
g h a b c d e f
LNB3-1019_E
g ha b c d e f i j k
