NPM
LNB
4.6 Update
Page 4-24 EJM9BE-MB-04L-20
4.6 Update
4.6.1 LNB
You can update LNB.
Be aware that once it is updated, it is not possible to recover the current version.
1
Choose [LNB] in [Version Upgrade]
from the menu.
•
The <LNB Version Upgrade> screen is
displayed.
∗
The installation image of LNB is compressed
in zip format and stored in the following
location on the installation CD-ROM supplied
with NPM.
(CD drive)\LNB\lnbxxxxx.zip
∗
Five alphanumeric characters of ‘xxxxx’
indicate the version.
2
Click [Browse] to specify the location
of the LNB version system (CD drive
etc.).
•
A dialog prompts for the install image. Specify
the install image.
3
Click [OK].
•
The message “In preparation” appears.
lnb4-6001_e
1
lnb4-6002_e
3
2
lnb4-6003_e
NPM
LNB
4.6 Update
EJM9BE-MB-04L-20 Page 4-25
•
When the preparation is complete, [Install]
appears.
4
Click [Install].
∗
Check the current system version and the
system version of the system to be installed.
•
The confirmation dialog opens.
5
Click [OK].
•
If the major version would be changed
corresponding to upgrading the version, the
re-confirmation dialog appears.
6
Click [OK].
•
When the update is complete, the message of
update completion appears.
∗
After this, LNB is restarted automatically.
Because the screen will not be refreshed after
LNB is restarted, wait for about one minute
and then log in again.
lnb4-6004_e
4
lnb4-6007_e
lnb4-6005_e
5
lnb4-6006_e
6
NPM
LNB
4.6 Update
Page 4-26 EJM9BE-MB-04L-20
4.6.2 Machine Software
You can update the machine software.

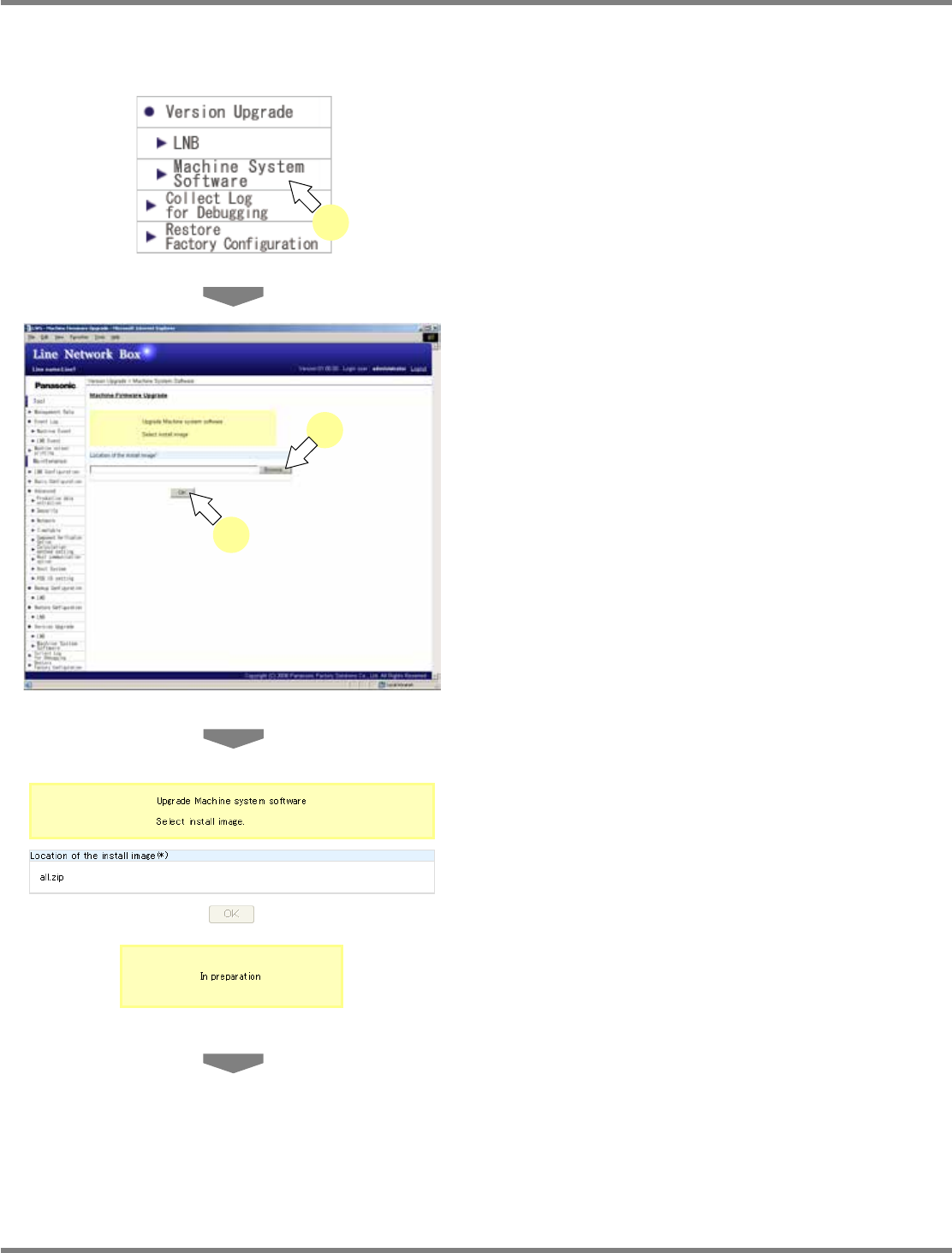

1
Choose [Machine System Software]
in [Version Upgrade] from the menu.
•
The <Machine Software Version Upgrade>
screen is displayed.
2
Click [Browse] to specify the location
of the install image.
•
A dialog prompts for the install image. Specify
the install image.
3
Click [OK].
•
The message “In preparation” appears.
lnb4-6001_e
1
lnb4-6008_e
3
2
lnb4-6009_e
