NPM LNB 4.9 Self-diagnosis EJM9BE-MB-04L-20 Page 4-33 4.9.2 Setting Check Setting check verifies whether the se ttings of LNB are correct or not. 1 Choose [Configuration Check] in [Self-check] from the menu. • The <Co…
NPM
LNB
4.9 Self-diagnosis
Page 4-32 EJM9BE-MB-04L-20
On-screen contents of connection check
This part explains the information displayed on the connection check screen.
③
Production line list
Images of DGS and machines are displayed. The DGS and machines whose IP addresses are
acquired are colored (they were displayed in gray at startup).
④
Indication lamp
The lamp color indicates the connection check result.
Gray: During connection check / Green: Connection check OK / Red: Connection check NG
⑤
Icon
Images of DGS and machines are iconified.
⑥
IP address
Acquired IP addresses are displayed.
⑦
Progress bar
The progress of connection check is displayed.
The bar color indicates the connection check result.
Light blue: During connection check / Green: Connection check OK / Red: Connection check NG
⑧
[Start]
When this is clicked on, connection check starts.
During connection check, it is displayed in gray and cannot be clicked on.
It becomes active again and can be clicked on when connection check is complete or the check
is aborted by the [Stop] button.
⑨
[Stop]
When this is clicked on, connection check aborts.
It is active and can be clicked on only during connection check.
At startup or when connection check is complete, it is displayed in gray and cannot be clicked on.
lnb4-9005_e
1
2
3
4
5
6 7
NPM
LNB
4.9 Self-diagnosis
EJM9BE-MB-04L-20 Page 4-33
4.9.2 Setting Check
Setting check verifies whether the settings of LNB are correct or not.
1
Choose [Configuration Check] in
[Self-check] from the menu.
•
The <Configuration Check> screen is
displayed.
2
Click [Start].
•
Setting check starts.
•
Setting check is complete.
•
The check result is displayed.
For information about the displayed contents,
see ‘On-screen contents of setting check’ on
the next page.
lnb4-9007_e
lnb4-9008_e
lnb4-9006_e
2
lnb4-9001_e
1
NPM
LNB
4.9 Self-diagnosis
Page 4-34 EJM9BE-MB-04L-20

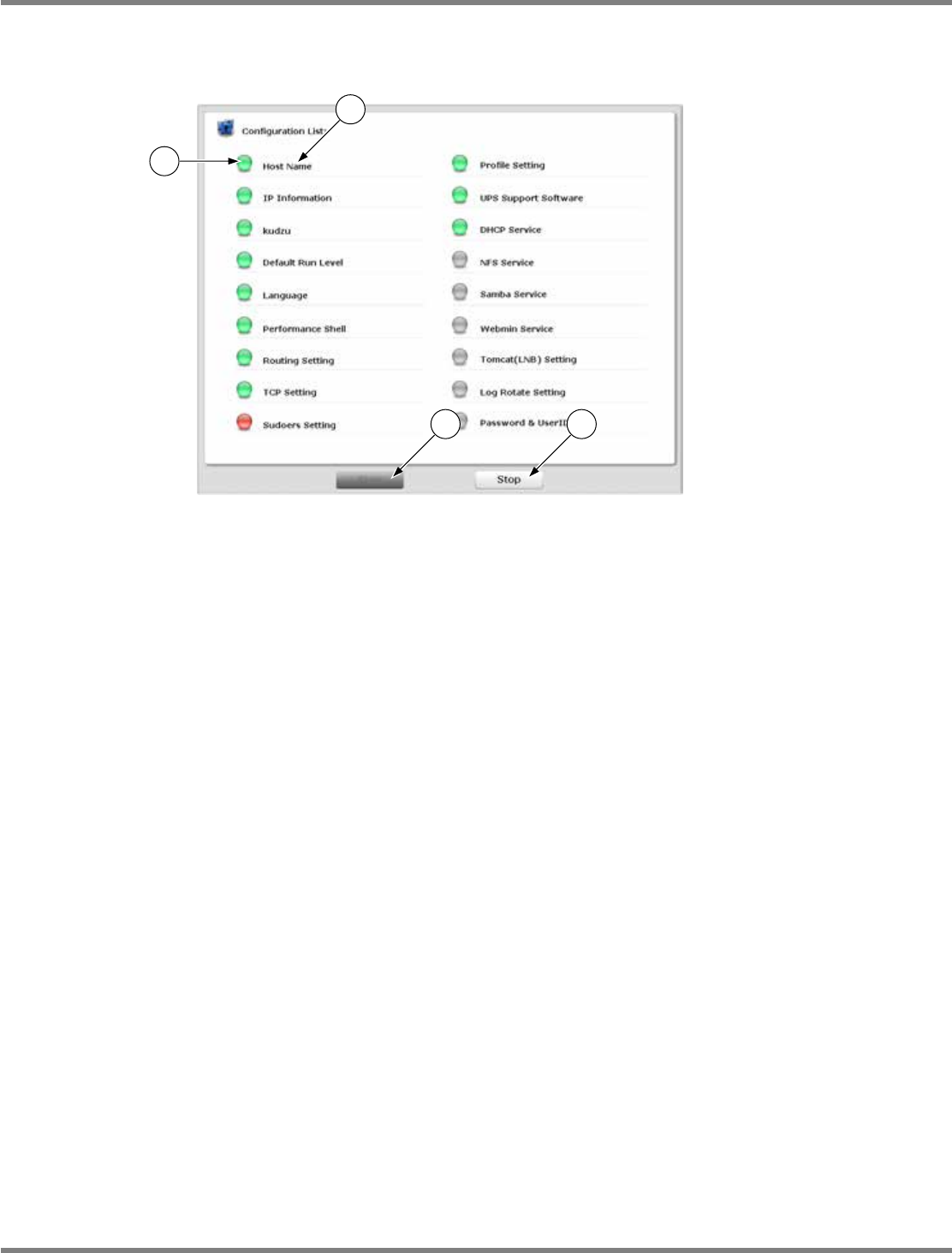

On-screen contents of setting check
This part explains the information displayed on the setting check screen.
①
Indication lamp
The lamp color indicates the connection check result.
Gray: During connection check / Green: Connection check OK / Red: Connection check NG
②
Check item
The target setting items for check are displayed. There are 18 items.
③
[Start]
When this is clicked on, setting check starts.
During setting check, the indication lamp is displayed in gray and cannot be clicked on.
You can recheck the setting when setting check is complete or the check is aborted by clicking
[Stop].
④
[Stop]
When this is clicked on, setting check aborts.
It is active and can be clicked on only during setting check.
At startup or when setting check is complete, it is displayed in gray and cannot be clicked on.
lnb4-9007_e
1
3 4
2
