NPM
Safety Precautions
EJM9BE-SF-02N-24 Page S-41
Handling of the vertical line camera (Optional)

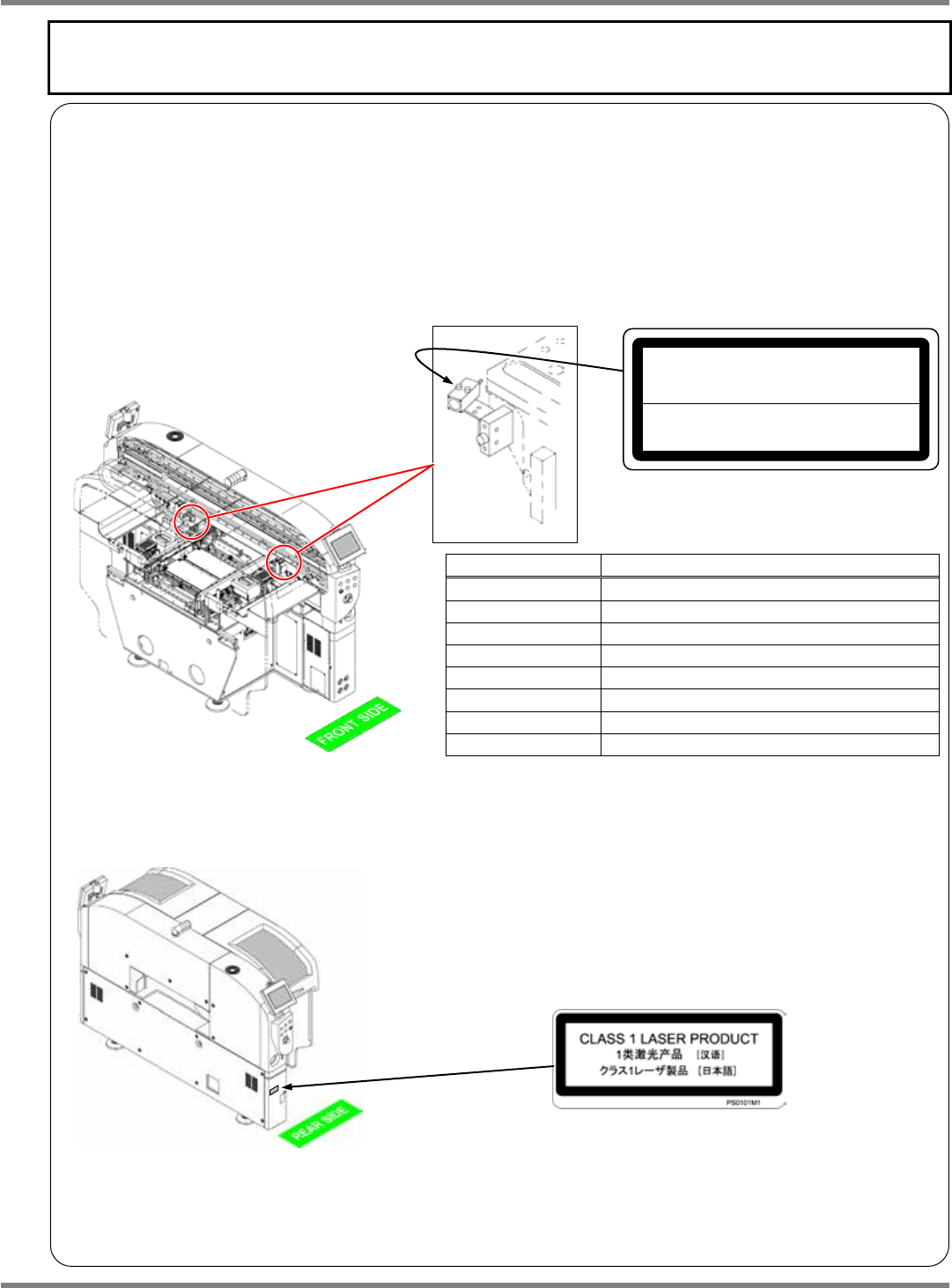

Since the vertical line camera complies with the Class 1 limits of IEC60825-1 (Laser Safety Standards),
it is basically safe under a normal usage pattern. In maintenance or operation, however, avoid looking
directly at it.
Vertical line camera
The vertical line camera can be installed at the front and the rear of the machine.
The maximum output of the laser components is 0.3 mW. The sensor head does not have a mechanism
that stops the laser light emission when it is disassembled. Never disassemble the sensor head
because you can be exposed to the laser radiation if disassembling it.
Item Laser specifications
Manufacturer
Panasonic Factory Solutions Co., Ltd.
Model number
N610065240AA
Wavelength 650 nm
Output 0.3 mW
Class Class 1
Emission duration 6.2 s (Maximum)
Installation position See the left figure.
Limits IEC60825-1 2001
Laser class label on the machine
N610065240AA-01A00
クラス１レーザ製品
CLASS 1 LASER PRODUCT
EJM9B-AR00
EJM9B-AD01
NPM
Safety Precautions
Page S-42 EJM9BE-SF-02N-24
Handling of the change cart switch unit
Be careful enough in handling the change cart switch unit drive because it weighs 21 k
g
; be sure to use
the switching cart when handling it.

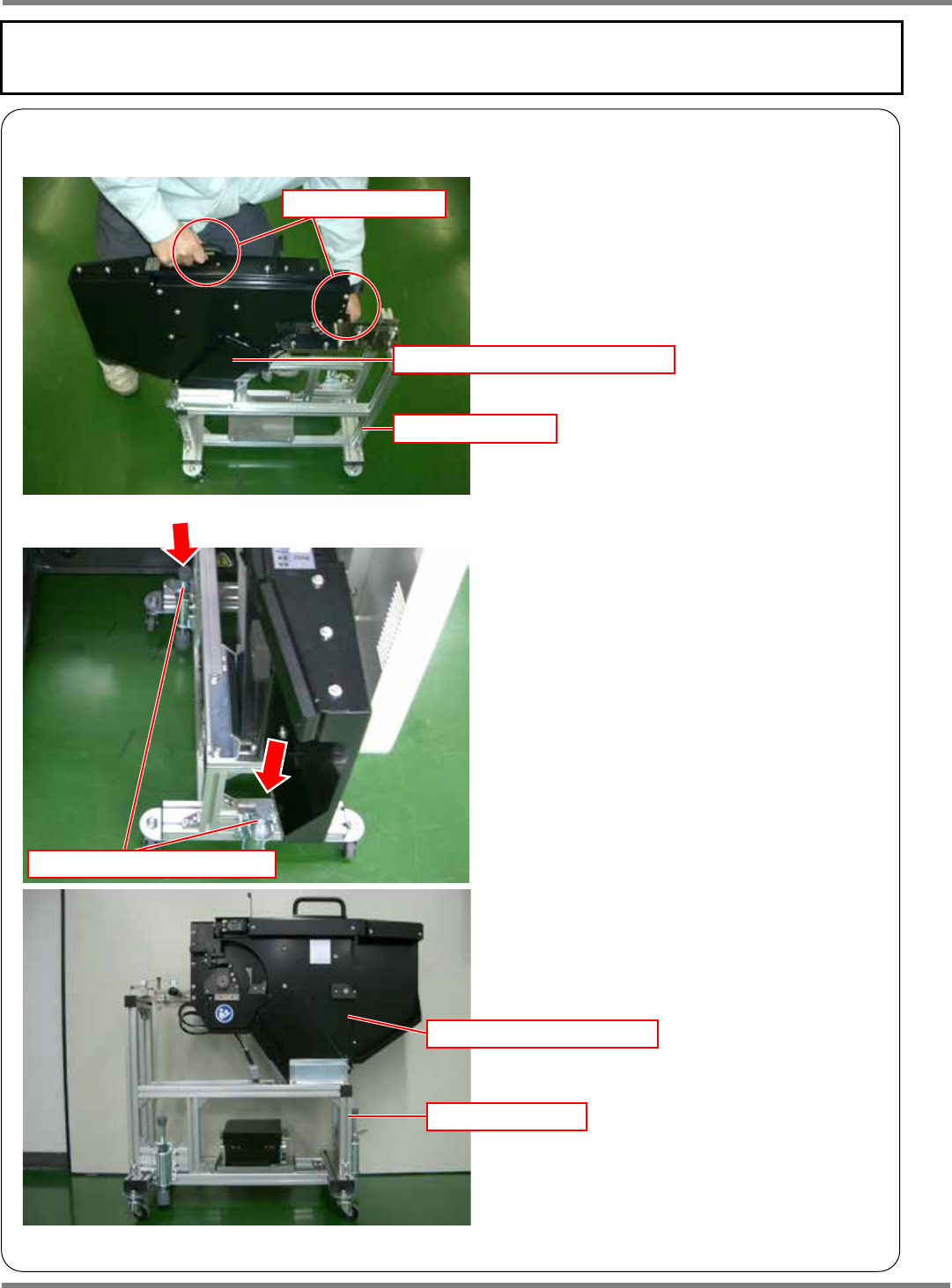

While handling the change cart switch
unit drive, hold its handles with your both
hands.
Whenever attaching or detaching the
change cart switch unit drive, lock the two
stoppers on the switching cart.
When moving the change cart switch unit
drive, be sure to use the switching cart.
Switching cart
Change cart switch unit drive
Change cart switch unit drive
Switching cart
Handle
Switching cart stopper
NPM
Safety Precautions
EJM9BE-SF-02N-24 Page S-43

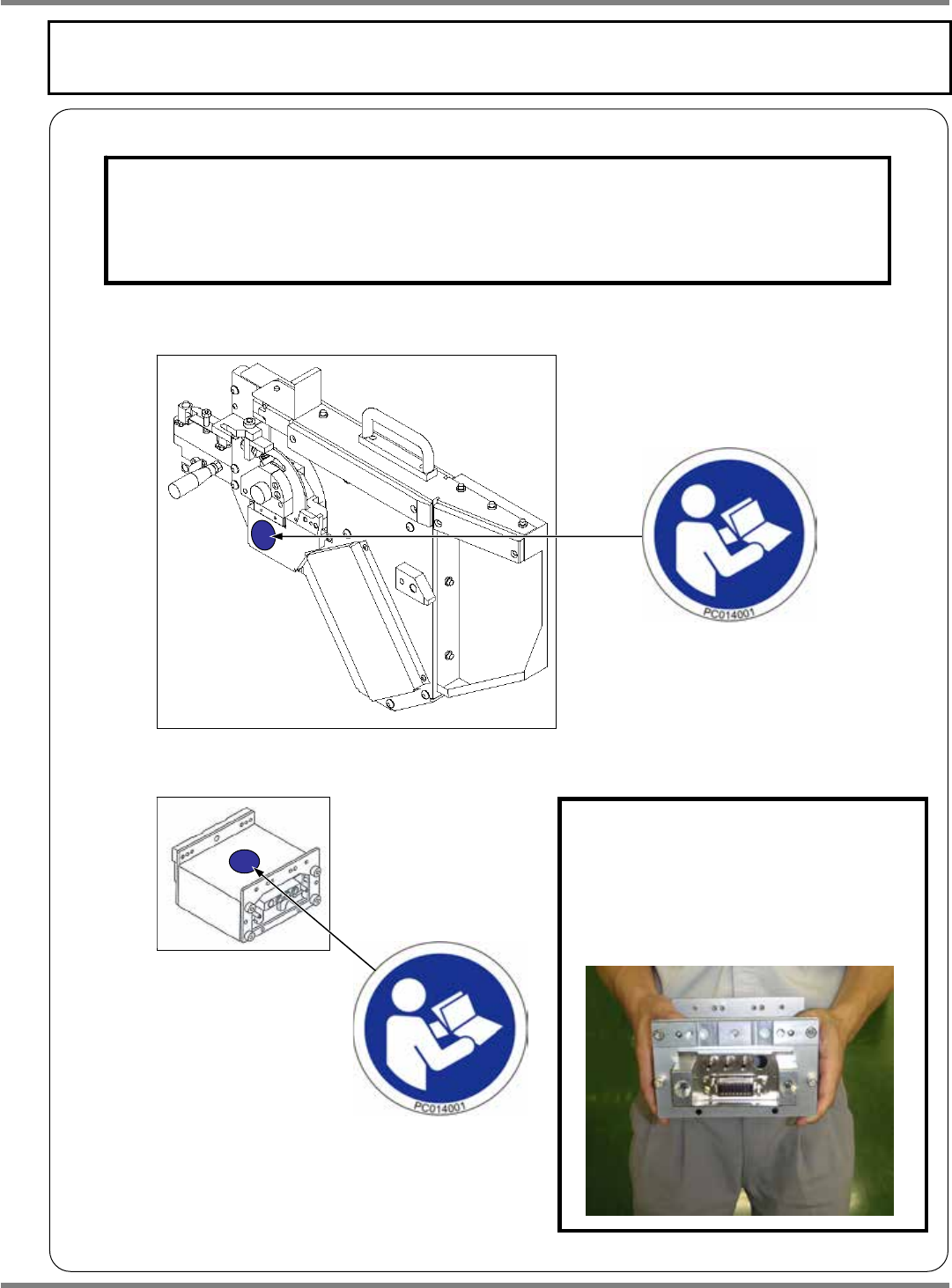

Handling of the change cart switch unit
Change cart switch unit drive
Drawer connector extension unit
N610098255AA_01
NOTICE
In carrying the drawer connector
extension unit, use both hands
because you may be injured if
dropping it.
NOTICE
The change cart switch unit should be stored in such a place as it will not be
bumped accidentally.
