NPM
LNB
1.4 Outline of Functions
Page 1-6 EJM9BE-MB-01L-20
1.4 Outline of Functions
The purposes, functions, and specifications of LNB and LWS are described below.
1.4.1 LNB
Purpose
No.
Description
1
To provide the operability that enables you to handle two or more coupled machines as
one machine.
2 To provide the function to distribute and relay a large amount of production result data.
Function
No.
Description
1 Downloads production data to the machine.
2 Keeps production data and manages the difference.
3 Keeps and compiles the production management information for a week.
4 Keeps event information for a week.
FA PC
No.
Description
Type
FC-E21A (NEC product)
1.4.2 LWS
Purpose
No.
Description
1 To provide the GUI for LNB, which has no screens, enabling operation.
Function
No.
Description
1 To display the summary result of the production management information kept in LNB.
2 To display the event information kept in LNB.
3 To edit the setting of LNB.
4 To update LNBs or machines.
LWS operating environment
No.
Description
Browser
IE (Internet Explorer) 7.0
∗
1: A PC you prepare is used for LWS.
∗
2: When you share PC with NPM-DGS for the minimum configuration, prepare a PC
that satisfies with the NPM-DGS performance specifications. For details, refer to the
manual of NPM-DGS.
NPM
LNB
EJM9BE-MB-02L-20 Page 2-1
2. BASIC OPERATIONS
This chapter explains the whole structure of screens as the screen flow, and the
frequently used operations as the operation flow. And also, the login/logout procedures
and initial settings necessary for operations are described.
NPM
LNB
2.1 Operating Instructions of the Main Power Supply Switch at Production Start/End
Page 2-2 EJM9BE-MB-02L-20
2.1 Operating Instructions of the Main Power Supply
Switch at Production Start/End
2.1.1 Operating Units

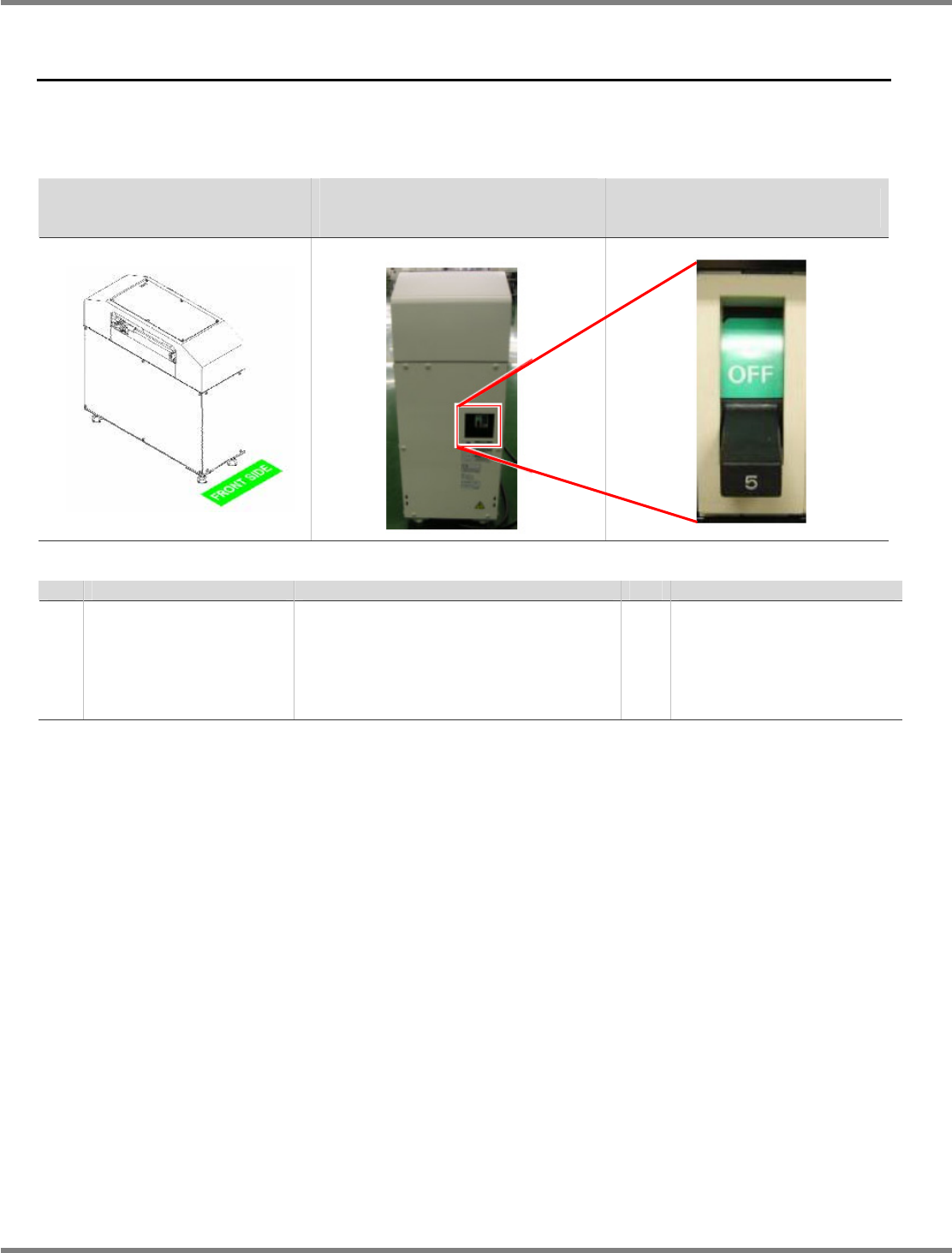

The operating units of the NPM LNB conveyor and NPM HUB conveyor are described below.
NPM LNB conveyor
NPM HUB conveyor general view
NPM LNB conveyor
NPM HUB conveyor general view
(Rear)
Main power supply switch enlarged
view
No. Unit name
Function
Qty. Reference
1 Main power supply switch
This controls the ON/OFF power of the
LNB conveyor or HUB conveyor.
Interlocking with this operation,
launching/shutting down of FA PC on the
LNB conveyor and supplying power to
the HUB is carried out.
1 Instruction manual (LNB)
2.1.2 Production Start
To start production, turn ON the main power supply switches on the back of the LNB conveyor or
HUB conveyor and then on the machine.
Communication errors, which appear on the machine when turning ON the main power to the
LNB conveyor or HUB conveyor, are ignorable.
2.1.3 Production End
To end production, turn OFF the main power supply switches on the machine and then on the
back of the LNB conveyor or HUB conveyor.
Communication errors, which appear on the machine when turning OFF the main power to the
LNB conveyor or HUB conveyor before the machine, are ignorable.
