NPM
LNB
3.1 Production Management Information
EJM9BE-MB-03L-20 Page 3-13

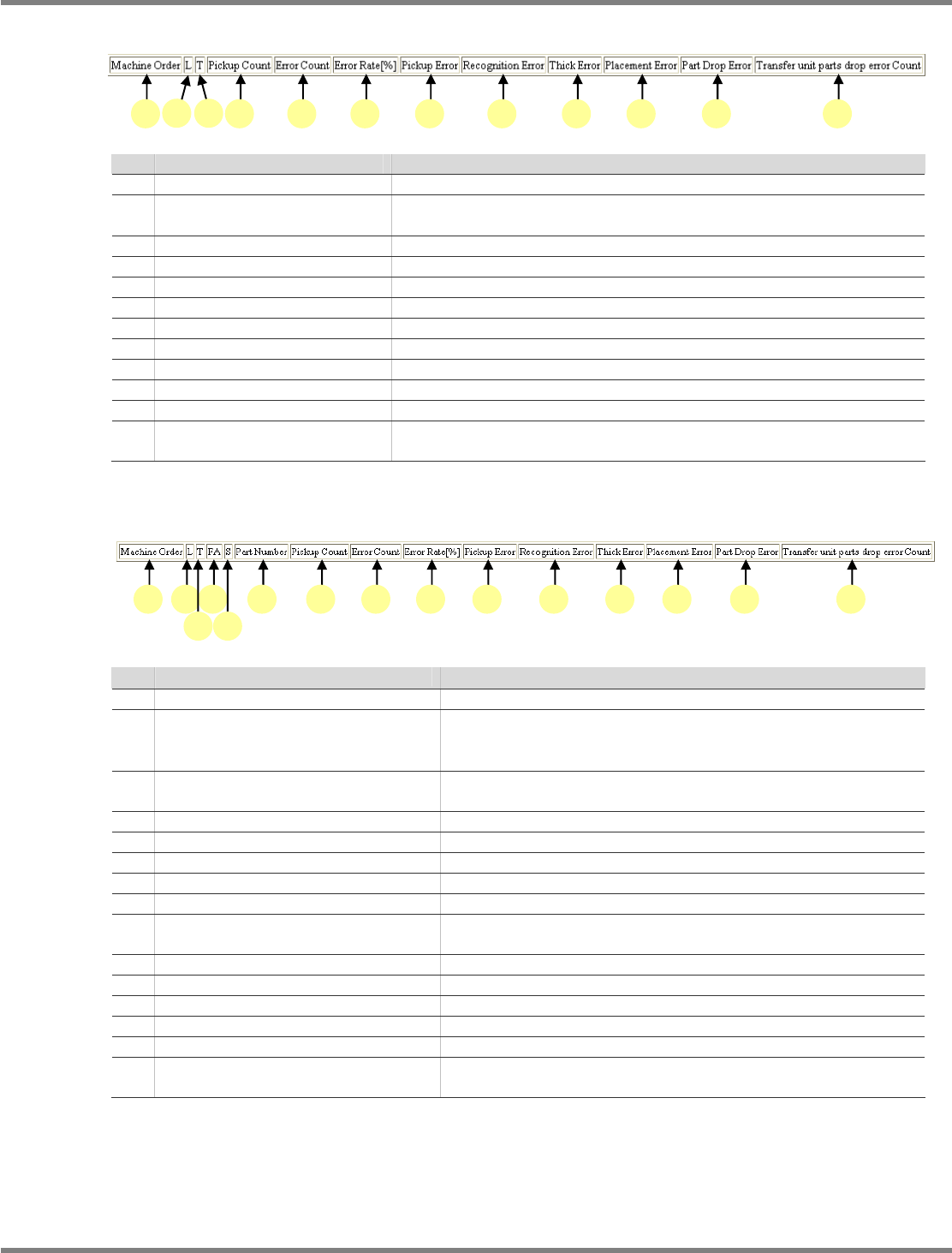

J) Pickup information by table
Name Explanation
a Machine Order The machine number
b L Production lane (F: Front / R: Rear)
∗
This field is displayed only when shift information is displayed.
c T The table number. It starts from the number 1 for each machine.
d Pickup Count The number of pickup actions by the table
e Error Count The number of errors occurred on the table
f Error Rate[%] The rate of error occurrences against the pickup count of the table
g Pickup Error The number of pickup errors occurred on the table
h Recognition Error The number of recognition errors occurred on the table
i Thick Error The number of tombstoning errors occurred on the table
j Placement Error The number of placement errors occurred on the table
k Part Drop Error The number of drop errors occurred on the table
l Transfer unit parts drop error
Count
The number of parts drop errors of the transfer unit occurred on the
table
K) Pickup count per feeder
Name
Explanation
a Machine Order
The machine number
b L Production lane (F: Front / R: Rear)
∗
This field is displayed only when shift information is
displayed.
c T The table number. It starts from the number 1 for each
machine.
d FA The address of the feeder
e S The side (L/R) of the feeder
f Part Number
The name of components on the feeder
g Pickup Count
The number of pickup actions by the feeder
h Error Count
The number of errors occurred on the feeder
i Error Rate[%]
The rate of error occurrences against the pickup count of the
feeder
j Pickup Error
The number of pickup errors occurred on the feeder
k Recognition Error
The number of recognition errors occurred on the feeder
l Thick Error
The number of tombstoning errors occurred on the feeder
m Placement Error
The number of placement errors occurred on the feeder
n Part Drop Error
The number of dropping errors occurred on the feeder
o Transfer unit parts drop error Count The number of parts drop errors of the transfer unit occurred
on the feeder
LNB3-1020_E
g ha
b c
d e f i j k l
LNB3-1012_E
a b d f g h i j k l m n
e c
o
NPM
LNB
3.1 Production Management Information
Page 3-14 EJM9BE-MB-03L-20

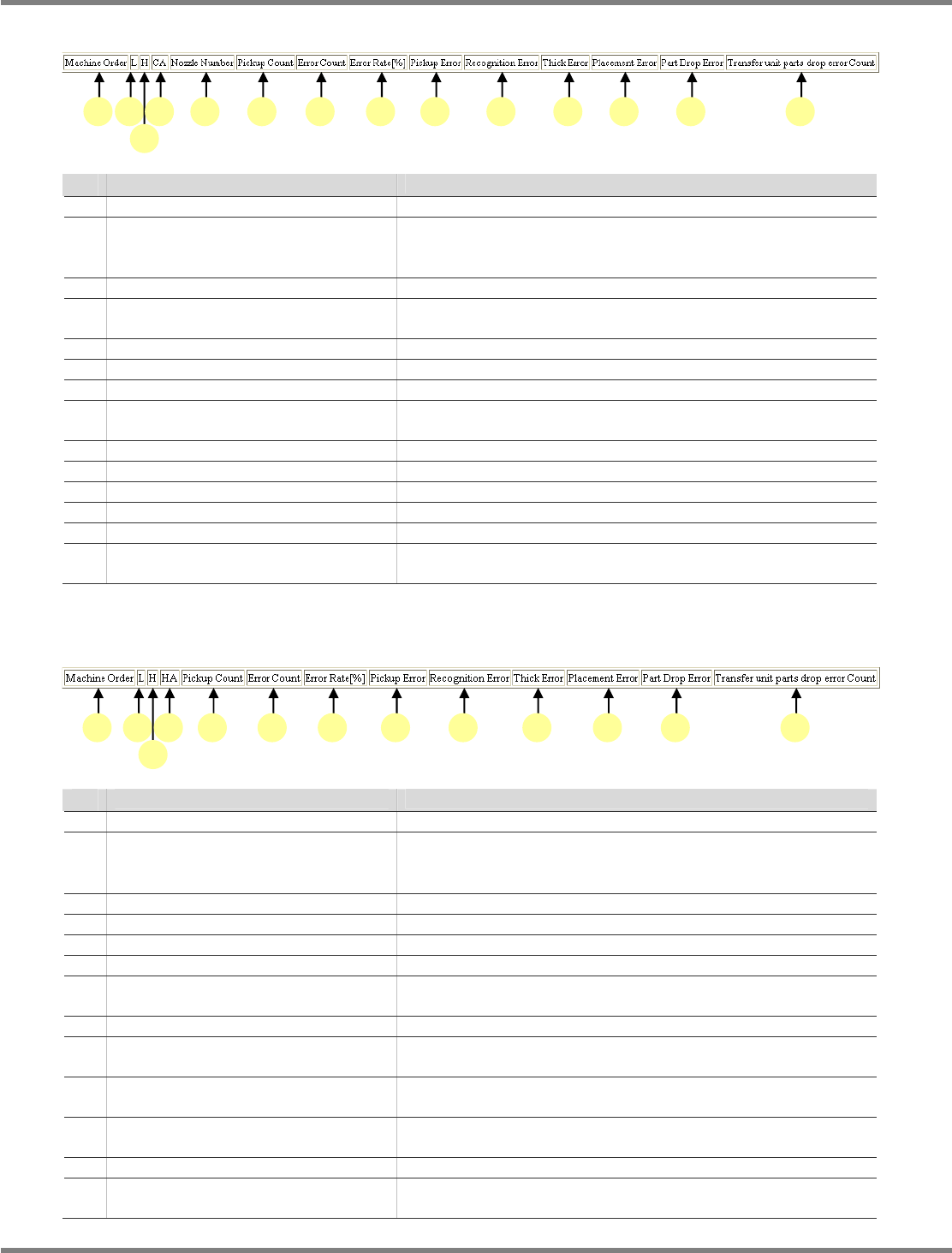

L) Pickup count per nozzle changer
Name
Explanation
a Machine Order
The machine number
b L Production lane (F: Front / R: Rear)
∗
This field is displayed only when shift information is
displayed.
c H The position of the head (1: Front / 2: Rear)
d CA The slot number of the nozzle changer to which the pickup
nozzle is arranged
e Nozzle Number
The number of the pickup nozzle
f Pickup Count
The number of pickup actions by the nozzle
g Error Count
The number of errors occurred on the nozzle
h Error Rate[%]
The rate of error occurrences against the pickup count of the
nozzle
i Pickup Error
The number of pickup errors occurred on the nozzle
j Recognition Error
The number of recognition errors occurred on the nozzle
k Thick Error
The number of tombstoning errors occurred on the nozzle
l Placement Error
The number of placement errors occurred on the nozzle
m Part Drop Error
The number of dropping errors occurred on the nozzle
n Transfer unit parts drop error Count
The number of parts drop errors of the transfer unit occurred
on the nozzle
M) Pickup count per nozzle holder
Name
Explanation
a Machine Order
The machine number
b L Production lane (F: Front / R: Rear)
∗
This field is displayed only when shift information is
displayed.
c H The position of the head (1: Front / 2: Rear)
d HA The address of the nozzle holder
e Pickup Count
The number of pickup actions by the nozzle holder
f Error Count
The number of errors occurred on the nozzle holder
g Error Rate[%]
The rate of error occurrences against the pickup count of the
nozzle holder
h Pickup Error
The number of pickup errors occurred on the nozzle holder
i Recognition Error
The number of recognition errors occurred on the nozzle
holder
j Thick Error
The number of tombstoning errors occurred on the nozzle
holder
k Placement Error
The number of placement errors occurred on the nozzle
holder
l Part Drop Error
The number of drop errors occurred on the nozzle holder
m Transfer unit parts drop error Count
The number of parts drop errors of the transfer unit occurred
on the nozzle holder
LNB3-1013_E
a b
c
d e f g h i j k l n m
LNB3-1014_E
a b
c
d e f g h i j k m l
NPM
LNB
3.2 Event Information
EJM9BE-MB-03L-20 Page 3-15
3.2 Event Information

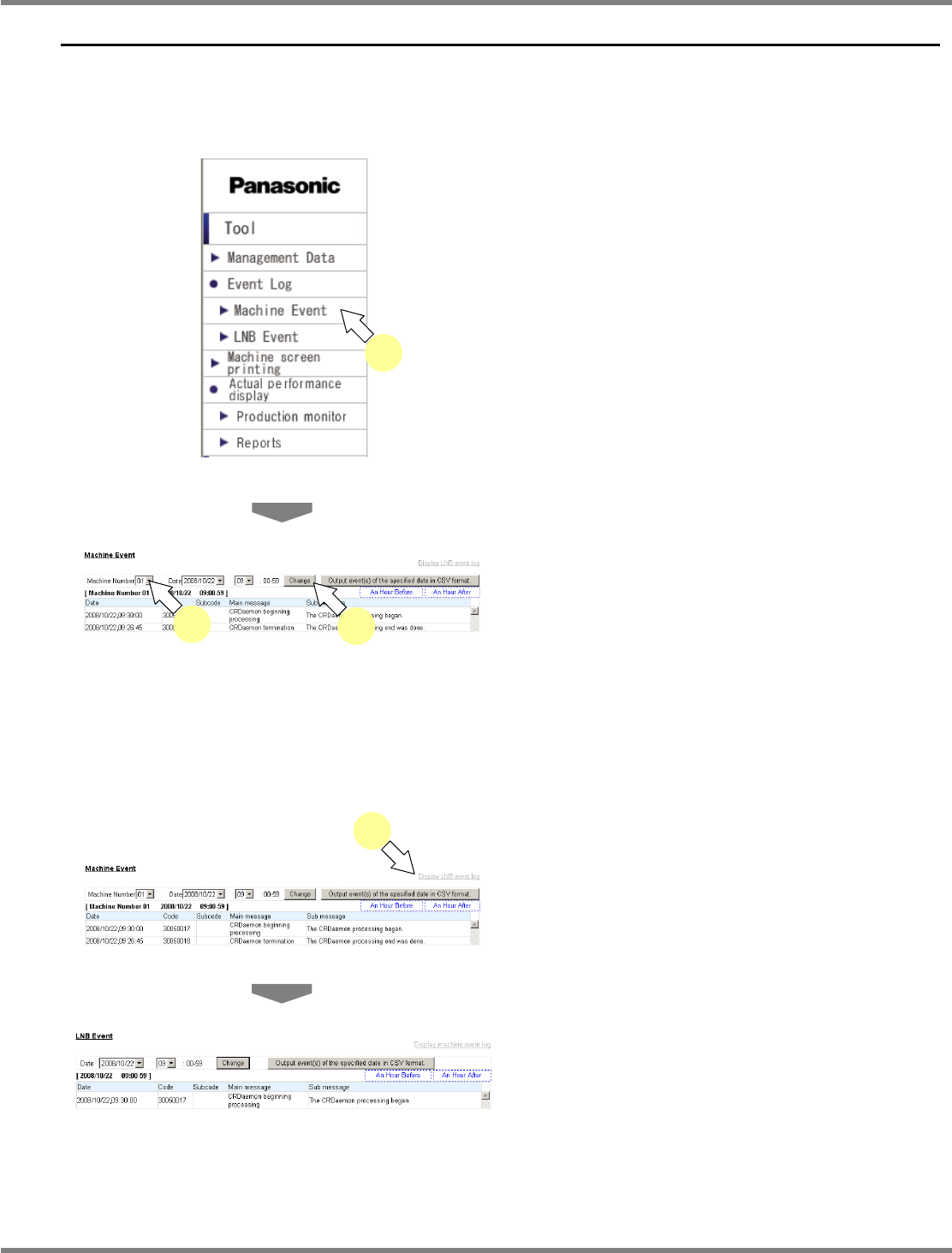

3.2.1 Machine Event Information
You can browse the machine event information.
1
Choose [Machine Event] in [Event
Log] from the menu.
•
The machine event information is displayed.
2
Select the desired machine number
from the “Machine Number” combo
box, and click [Change].
•
The 1 hour’s machine event information of the
specified machine is displayed.
Changing the event information to display
1
Choose [Display LNB event log].
•
The LNB event information is displayed.
lnb3-2001_e
1
lnb3-2002_e
lnb3-2001_e
2
2
lnb3-1001_e
1
