NPM LNB 4.9 Self-diagnosis EJM9BE-MB-04L-20 Page 4-31 4.9.1 Connection Check Connection check verifies the connectio n status of LNB, machines, and DGS. 1 Choose [Connection Check] in [Self-check] from the menu. • The &l…
NPM
LNB
4.9 Self-diagnosis
Page 4-30 EJM9BE-MB-04L-20
4.9 Self-diagnosis
The self-diagnosis function is a tool to verify that LNB is operating properly.
If, for instance, production data could not be downloaded because of a communication error in
the machine, this tool enables you to search for the problem.
When you click the start button of the self-diagnosis function, verification starts automatically,
and the indication lamp of the error-detected part turns red. The following table shows the
solutions to communication errors.
Solutions to communication errors
Item
Error
Solution
Error in connection
between LNB and
machine detected.
Replace the HUB inside LNB conveyor. Or replace
the LAN cable connecting that HUB and the
machine.
Ping check
Error in connection
between LNB and
DGS detected.
Replace the HUB inside LNB conveyor or on your
LAN. Or replace the LAN cable on your LAN.
NPM
LNB
4.9 Self-diagnosis
EJM9BE-MB-04L-20 Page 4-31

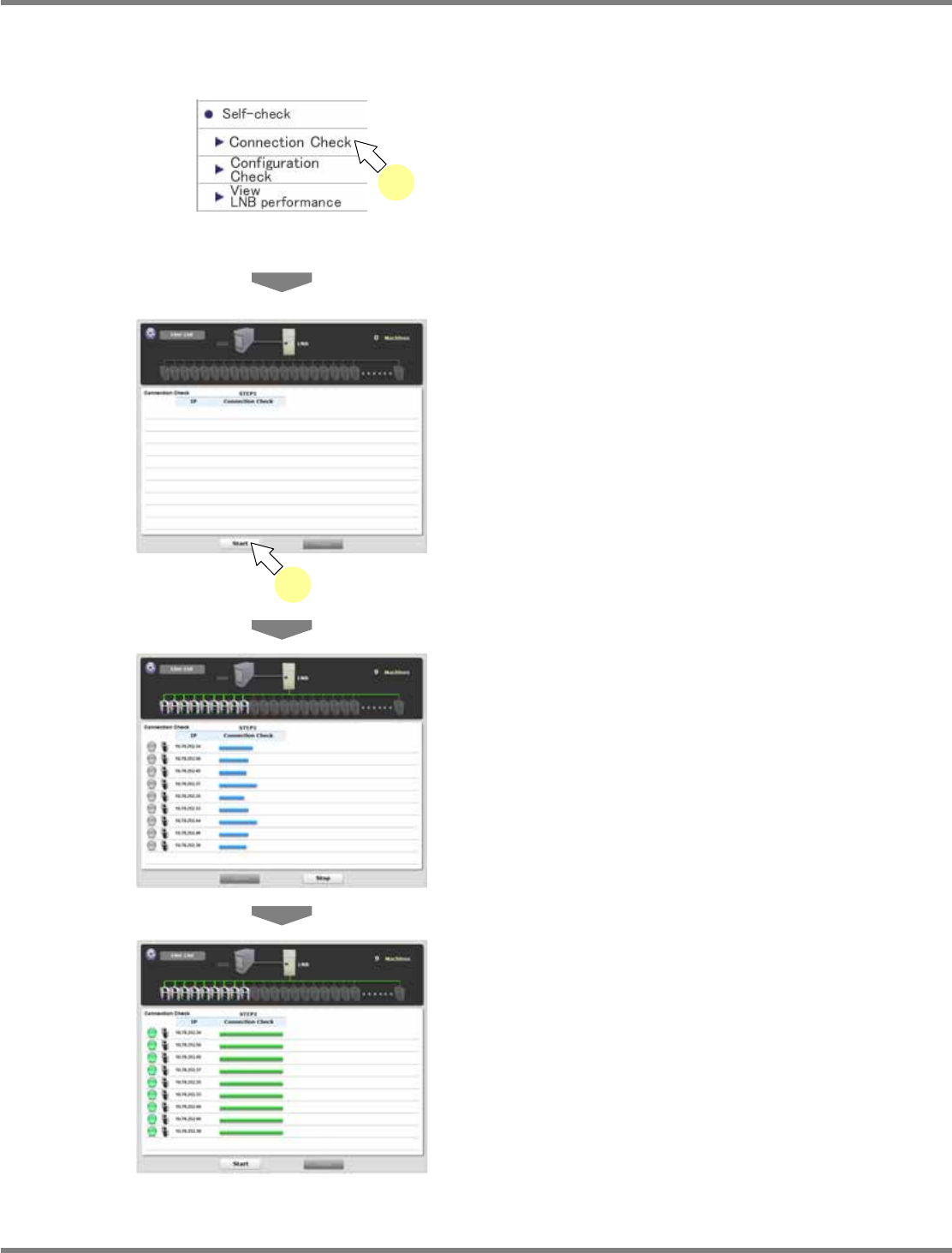

4.9.1 Connection Check
Connection check verifies the connection status of LNB, machines, and DGS.
1
Choose [Connection Check] in
[Self-check] from the menu.
•
The <Connection Check> screen is displayed.
2
Click [Start].
•
Connection check starts.
•
The DGS and machines whose IP addresses
are acquired are displayed, and the progress
bar of connection check starts moving.
•
Connection check is complete.
•
The check result is displayed.
For information about the displayed contents,
e ‘On-screen contents of connection check’
on the next page.
lnb4-9001_e
1
lnb4-9003_e
lnb4-9004_e
lnb4-9002_e
2
NPM
LNB
4.9 Self-diagnosis
Page 4-32 EJM9BE-MB-04L-20

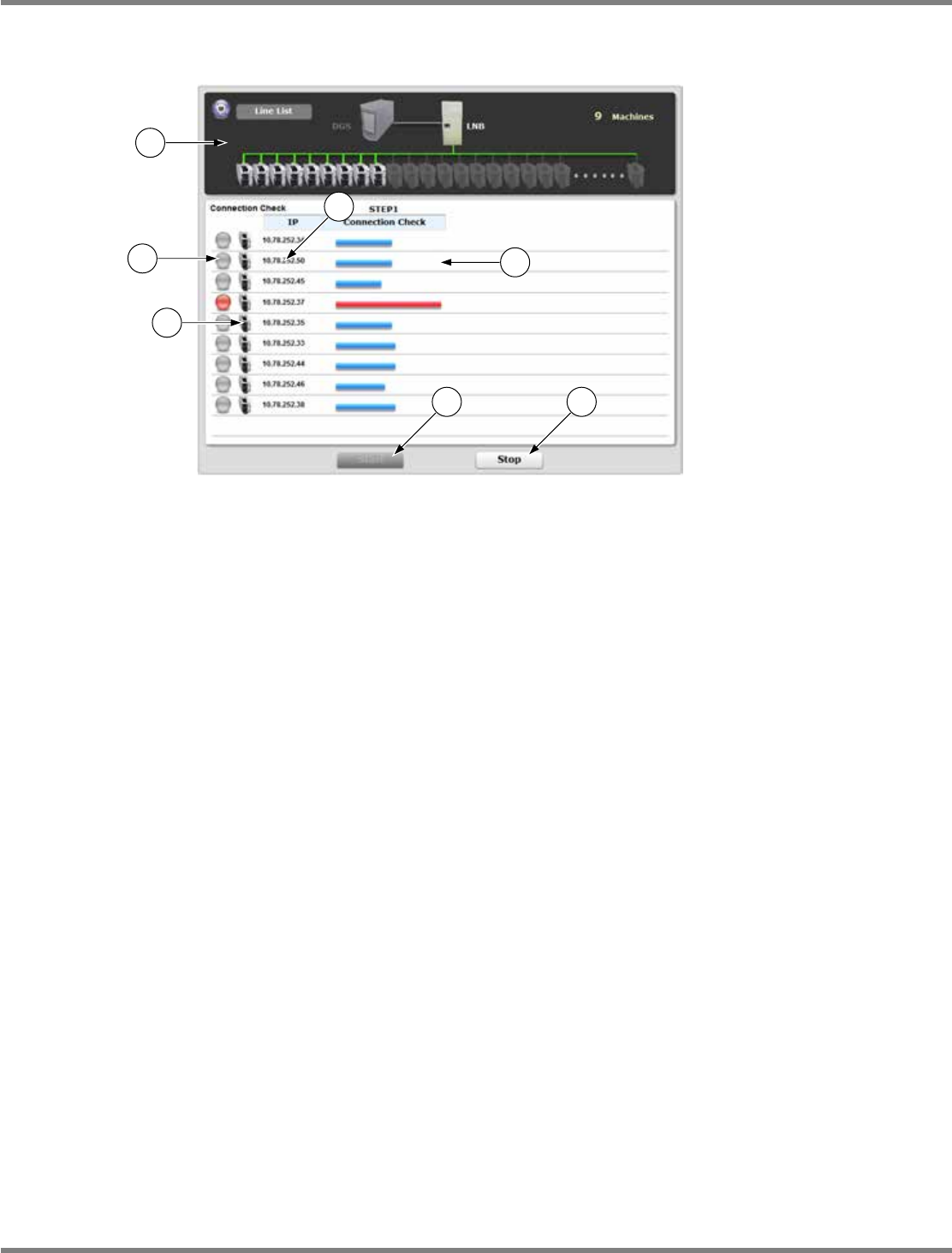

On-screen contents of connection check
This part explains the information displayed on the connection check screen.
③
Production line list
Images of DGS and machines are displayed. The DGS and machines whose IP addresses are
acquired are colored (they were displayed in gray at startup).
④
Indication lamp
The lamp color indicates the connection check result.
Gray: During connection check / Green: Connection check OK / Red: Connection check NG
⑤
Icon
Images of DGS and machines are iconified.
⑥
IP address
Acquired IP addresses are displayed.
⑦
Progress bar
The progress of connection check is displayed.
The bar color indicates the connection check result.
Light blue: During connection check / Green: Connection check OK / Red: Connection check NG
⑧
[Start]
When this is clicked on, connection check starts.
During connection check, it is displayed in gray and cannot be clicked on.
It becomes active again and can be clicked on when connection check is complete or the check
is aborted by the [Stop] button.
⑨
[Stop]
When this is clicked on, connection check aborts.
It is active and can be clicked on only during connection check.
At startup or when connection check is complete, it is displayed in gray and cannot be clicked on.
lnb4-9005_e
1
2
3
4
5
6 7
