NPM LNB 1.2 Line Configuration EJM9BE-MB-01L-20 Page 1-3 1.2 Line Configuration NPM and conveyors are located in the NPM line configuration as follows.  Case 1 Only NPM is included in the line configu ration (when 15 ma…

NPM

LNB

1.1 Conveyors

Page 1-2 EJM9BE-MB-01L-20

1.1 Conveyors

NPM, regardless of stand-alone or connected to the line, needs to be installed with another NPM

or an extension conveyor on its both sides, which is used to install a unit as a line server and

ensures the safety around the transport apertures.

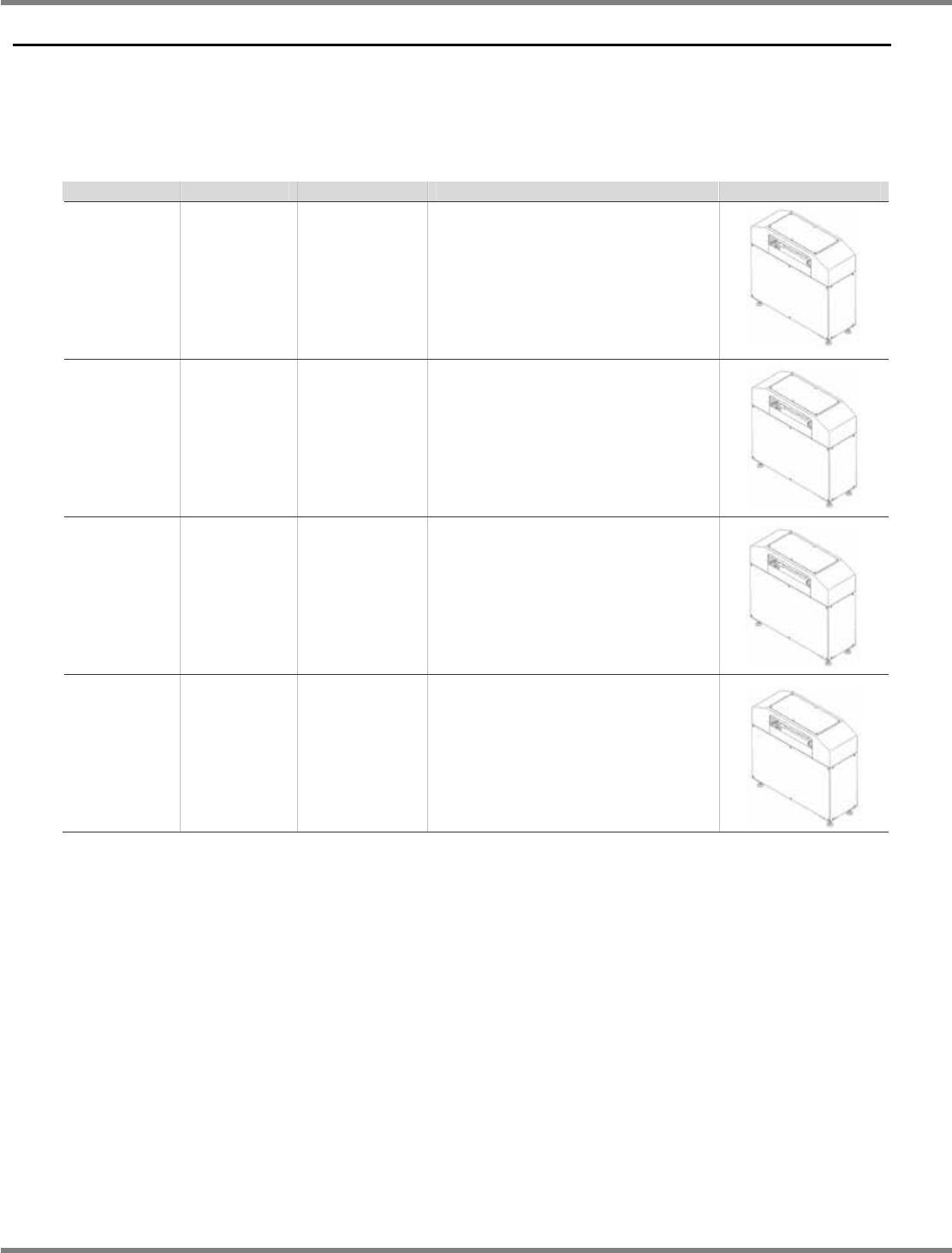

The types of extension conveyors are as follows.

Name

Model name

Model number Descriptions

Appearance

NPM LNB

conveyor

NL-CON1 NM-EJK4A This has a function to ensure the

safety around the transport aperture

as an extension conveyor, and the

HUB (LAN interface). If you

incorporate an FA PC, it will have an

LNB function as a line server. Install

it on the extreme left of an NPM line.

NPM HUB

conveyor

NH-CON1 NM-EJK5A This has a function to ensure the

safety around the transport aperture

as an extension conveyor, and the

HUB (LAN interface). When more

than 16 NPM are coupled, install it

on the extreme right.

NPM

conveyor L

N-CONL1 NM-EJK6A This has a function to ensure the

safety around the transport aperture

as an extension conveyor. This is

required when a machine other than

NPM is coupled on the left of NPM.

NPM

conveyor R

N-CONR1 NM-EJK7A This has a function to ensure the

safety around the transport aperture

as an extension conveyor. This is

required when 15 machines or less

are coupled in an NPM line and

when a machine other than NPM is

coupled on the right of NPM.

∗

See the introduction manual for the installation.

NPM

LNB

1.2 Line Configuration

EJM9BE-MB-01L-20 Page 1-3

1.2 Line Configuration

NPM and conveyors are located in the NPM line configuration as follows.



Case 1

Only NPM is included in the line configuration (when 15 machines or less are coupled).



Case 2

Only NPM is included in the line configuration (when 16 to 30 machines are coupled).

∗

The NPM LNB conveyor is required on the left of the line.



Case 3

Any machine other than NPM is included in the line configuration (when 15 machines or less are

coupled).



Case 4

Any machine other than NPM is included in the line configuration (when 16 to 30 machines are

coupled).

∗

When any machine other than NPM is included in the line configuration, an NPM conveyor is

required between NPM and the machine other than NPM. (Cases 3 and 4)

NPM

…

NPM LNB

conveyor

NL-CON1

NM-EJK4A

NPM

conveyor R

N-CONR1

NM-EJK7A

NPM

…

NPM LNB

conveyor

NL-CON1

NM-EJK4A

NPM

NPM HUB

conveyor

NH-CON1

NM-EJK5A

NPM

NPM LNB

conveyor

NL-CON1

NM-EJK4A

NPM

conveyor R

N-CONR1

NM-EJK7A

…

Other

than

NPM

conveyor R

N-CONR1

NM-EJK7A

…

NPM

conveyor L

N-CONL1

NM-EJK6A

NPM

NPM LNB

conveyor

NL-CON1

NM-EJK4A

NPM

conveyor R

N-CONR1

NM-EJK7A

…

Other

than

NPM

NPM HUB

conveyor

NH-CON1

NM-EJK5A

…

NPM

conveyor L

N-CONL1

NM-EJK6A

NPM

LNB

1.3 System Configuration

Page 1-4 EJM9BE-MB-01L-20

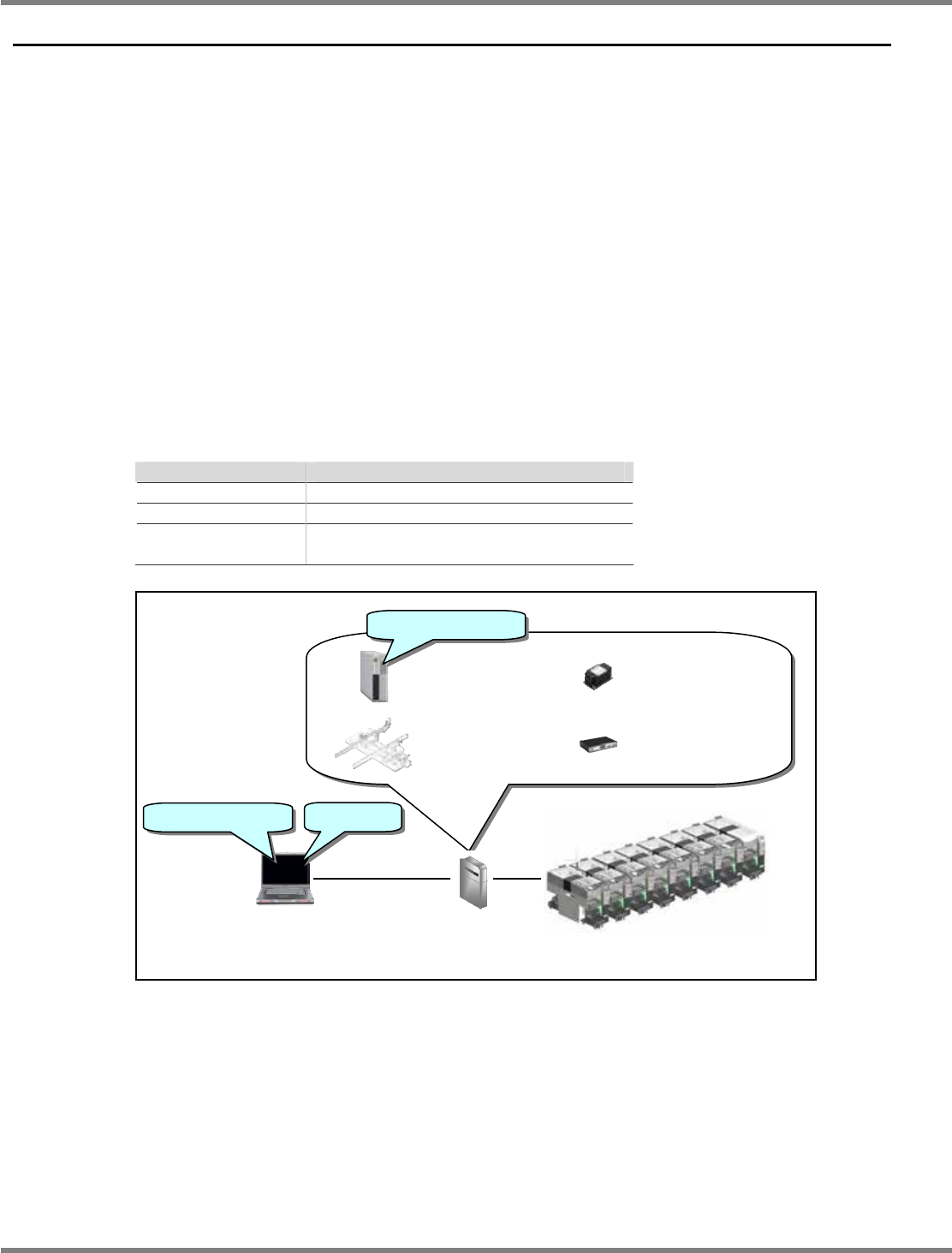

1.3 System Configuration

NL-CON1 (NM-EJK4A) contains an internal FA dedicated PC, in which LNB software is installed.

(Hereafter LNB software is abbreviated as LNB.)

LNB is an abbreviation for Line Network Box, which is a relay system connecting the machine

and NPM-DGS. Two or more machines are lined to control information intensively, download

production data, and compile the production management information.

Meanwhile, LWS is an abbreviation for Line Work Station, with which you can display the result

data kept in LNB through the browser on LWS. The PC you prepare is used for LWS. Without

installing software, you can access LNB using IE (Internet Explorer) 7.0 for the display.

In addition, NPM-DGS is an abbreviation for Data Generation System for NPM, which is software

to create production data.

∗

NPM-DGS is not included in this product.

∗

The LWS editor is a subset of NPM-DGS operated on LWS and connects to LNB to edit the

data on site.



Minimum configuration

This is used for the operation of one line.

One NL-CON1 is required.

LWS is shared with NPM-DGS.

Item

Quantity

No. of lines

No. of LNBs

No. of LWSs

∗

Shared with the data creating system

DGS software

FA-specific PC

LNB software

Extension conveyor

mechanism

Network equipment

Power equipment

PC for LWS shared with

NPM-DGS

(∗ Not included in this product)

IE7.0

Line NL-CON1
