3.4 Result Information Display
Page 3-32 EJM9BE-MB-03L-20
③
Selecting the target data for report
1
Select the target lane for analysis.
•
Select the target lane for report, from the lane
combo box.
•
The lot list or shift list of the specified lane is
displayed in chronological order.
2
Select the target lot (or the target
shift) for report.
•
To select it, double-click the target lot (or the
target shift) from the lot list (or the shift list). It
is not possible to select more than one lot
(shift).
•
The bar of the specified lot (shift) turns light
blue, and the [Inspection report aft...] button
and the [Misjudgment report] button become
active.
lnb3-4007_e
1
lnb3-4009_e
2
lnb3-4015_e
[Inspection report aft...] and
[Misjudgment report] buttons enabled
Turns light blue.
NPM
LNB
3.4 Result Information Display
EJM9BE-MB-03L-20 Page 3-33
④
Displaying the reports
Post-placement inspection result report
1
Click [Inspection report aft...]
∗
In advance, select the target data following
the above “Selecting the target data for report”
procedure.
•

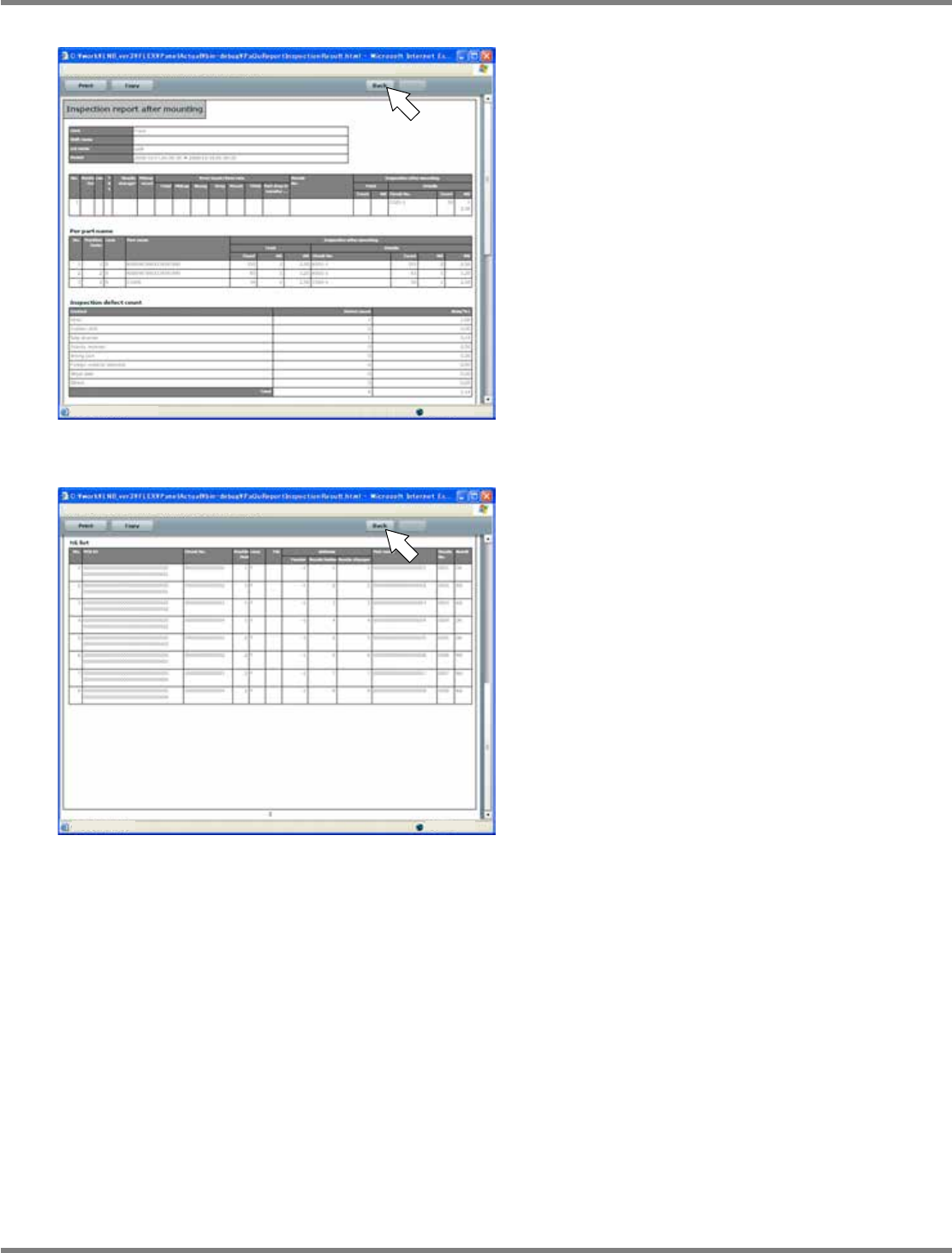

The post-placement inspection result report is
displayed in the new window.
•
The inspection result, the inspection defect
items (details) by machine/circuit
number/feeder/nozzle holder/nozzle
changer/parts name, the inspection defect
count, and the NG result list are displayed in
tabular form.
•
When the results are spread over two or more
pages, you can use the [Back] and the [Next]
button to turn the pages.
lnb3-4016_e
1
lnb3-4017_e
lnb3-4018_e
