NPM
LNB
4.6 Update
EJM9BE-MB-04L-20 Page 4-27
•
When the preparation is complete, the
<Installation> screen is displayed.
4
Check off the system to update and
the machine, and click [Install].
∗
Check the current system version and the
system version of the system to be installed.
•
[Select All] selects all machines, and [Cancel
All] deselects all machines.
•
The confirmation dialog opens.
5
Click [OK].
•
When the update is complete, the message of
update completion appears.
6
Click [OK].
lnb4-6005_e
5
lnb4-6011_e
6
lnb4-6010_e
4
4
4
NPM
LNB
4.7 Download of Log for Debug
Page 4-28 EJM9BE-MB-04L-20
4.7 Download of Log for Debug
Log data to send to our customer service can be created automatically.
1
Choose [Collect Log for Debugging]
from the menu.
•
The <Collect Log for Debugging> screen is
displayed.
2
After specifying the date range for log
creation, click [Create a log for
Panasonic analysis.].
•
The confirmation dialog opens.
3
Click [OK].
•
The progress of log data creation is displayed.
•
When the progress reaches 100%, the file
download dialog opens.
4
Click [Save].
•
A dialog prompts for the destination to save.
Specify the destination, and download it.
•
If the file download dialog does not open, click
the link shown left that appears on the
<Collect Log for Debugging> screen.
This concludes the procedure for downloading the log
for debug.
After downloading the log for debug, write the log to a
CD, and send it to us.
lnb4-7003_e
lnb4-7004_e
4
lnb4-6001_e
1
lnb4-4004_e
lnb4-7001_e
2
2
2
lnb4-7002_e
3
NPM
LNB
4.8 Restore to Factory Defaults
EJM9BE-MB-04L-20 Page 4-29

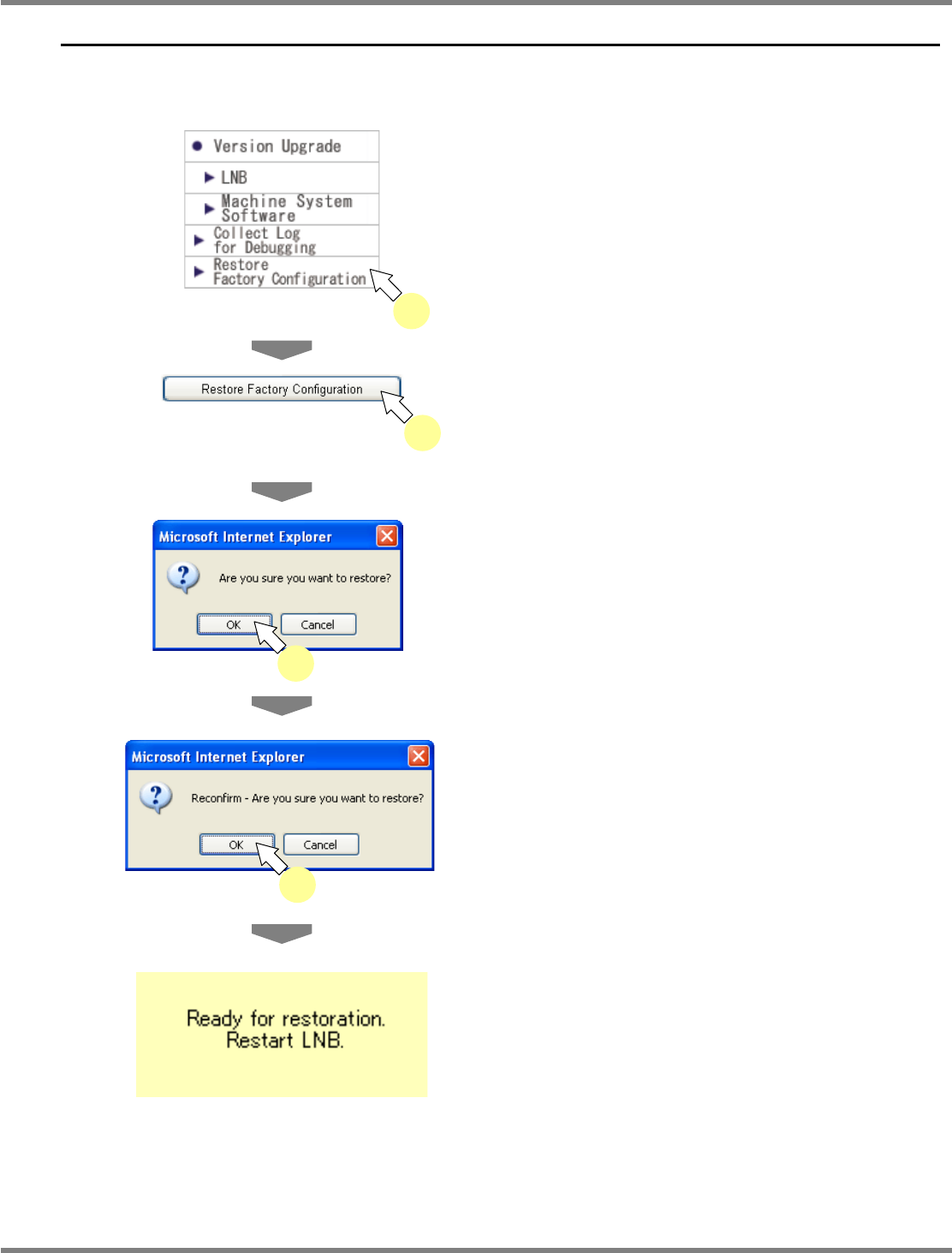

4.8 Restore to Factory Defaults
You can restore the LNB setting and data to factory defaults.
Be aware that once it is initialized, the data will be lost and cannot be recovered.
1
Choose [Restore Factory
Configuration] from the menu.
•
The <Restore Factory Configuration> screen
is displayed.
2
Click [Restore Factory Configuration].
•
The confirmation dialog opens.
3
Click [OK].
•
The reconfirmation dialog opens.
4
Click [OK].
•
When the preparation for initialization is
complete, the message of initialization
preparation completion appears.
∗
After this, LNB is restarted automatically.
Because the screen will not be refreshed after
LNB is restarted, wait for about one minute
and then log in again.
lnb4-8001_e
2
lnb4-6001_e
1
lnb4-8004_e
lnb4-8002_e
3
lnb4-8003_e
4
