Preconditions and Configurations

Configuration Settings in ASM Setup Center

154 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

2.2

2.2 Configuration Settings in ASM Setup Center

Configuration Settings in ASM Setup Center

The SIPLACE Material Setup Assistant (MSA) workflow solution requires ASM Setup Center for the set

up preparation. To enable the SIPLACE Material Setup Assistant to communicate and work with ASM

Setup Center, you need to perform the following configurations in ASM Setup Center:

▪ "2.2.1 Configuring Communication with ASM Setup Center" [ ➙ 154]

▪ "2.2.2 Configuring the ASM Setup Center Application" [ ➙ 156]

▪ "2.2.4 Configuring the ASM Setup Center Server" [ ➙ 159]

2.2.1

2.2.1 Configuring Communication with ASM Setup Center

Configuring Communication with ASM Setup Center

In order for ASM Setup Center to communicate with the systems involved in the SIPLACE Material Setup

Assistant workflows, you need to configure the connection to ASM OIB.

► In the main menu open Extras > Settings and the Settings window will open.

► Select the category ASM OIB.

⇨ The ASM OIB Settings dialog box will be shown.

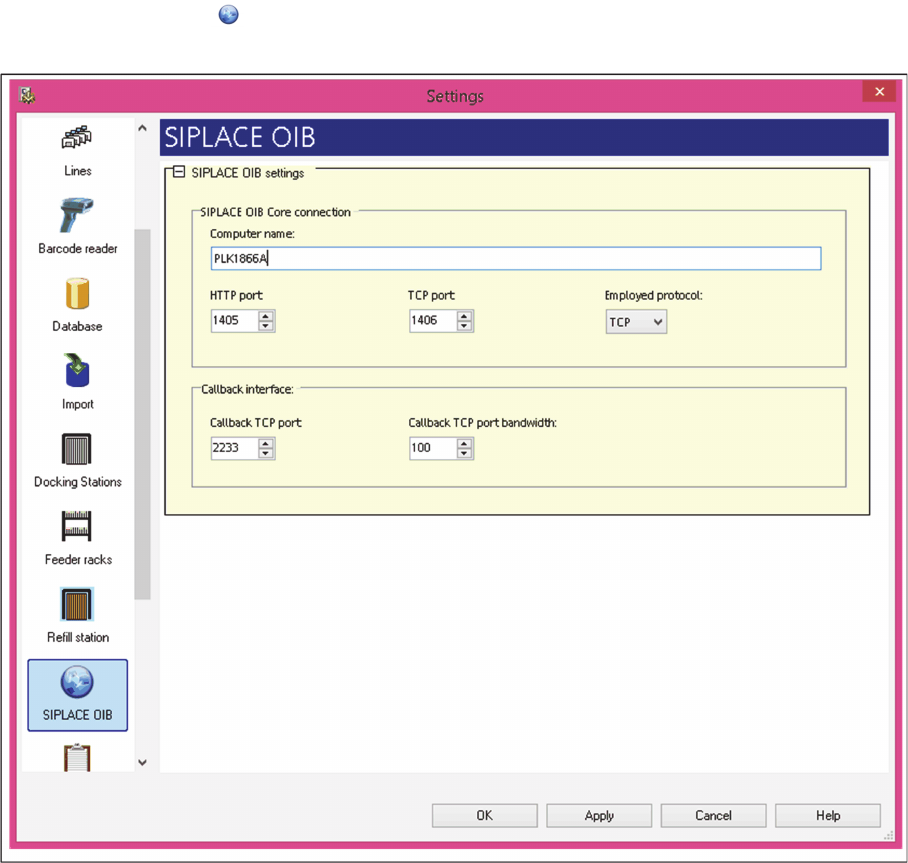

Settings – ASM OIB

► Perform the relevant settings at ASM OIB Core Connections.

Preconditions and Configurations

Configuration Settings in ASM Setup Center

ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 155

ASM OIB Core connection

Parameters Description

Computer name Name of the computer on which the ASM OIB core is installed.

HTTP Port: The HTTP port through which the ASM OIB core can be reached.

The HTTP port was configured during ASM OIB installation.

TCP Port: The TCP port through which the ASM OIB core can be reached. The

TCP port was configured during ASM OIB installation.

Employed protocol: Select the communication protocol HTTP or TCP) to be used for

communicating with the ASM OIB Core. The TCP protocol is select

ed. You can use HTTP as an alternative.

Callback interface: Callback TCP Port:

The TCP port through which Setup Center is supposed to receive

data and notifications from the ASM OIB Core services.

Callback TCP Port band width:

Alternative ports that can be used if the previously configured Call

back TCP Port is busy.

Example: Configured Callback TCP Port = 2000

Band width = 10

If 2000 is already occupied by another program, the first port availa

ble between 2001 and 2010 will be used.

Preconditions and Configurations

Configuration Settings in ASM Setup Center

156 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

2.2.2

2.2.2 Configuring the ASM Setup Center Application

Configuring the ASM Setup Center Application

► In the main menu open Extras > Settings and the Settings window will open.

► Select the category General.

⇨ The dialog box General will be shown.

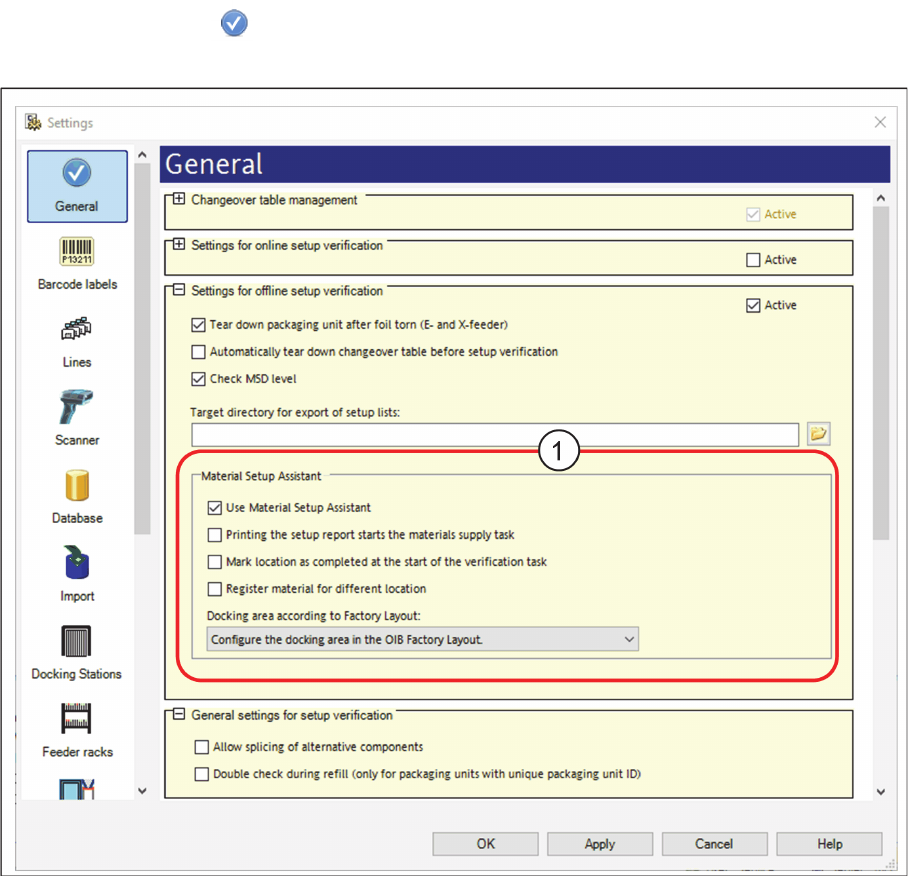

Settings – General

Activating the "setup preparation" view.

► Navigate to Settings for online setup verification.

► Go to Material Setup Assistant (1) and enable the option Use Material Setup Assistant.

⇨ The Setup verification view is now active in ASM Setup Center. This view is used for the Material

Setup Assistant workflow. The tasks waiting and their status are shown. Setup lists can also be print

ed.
