Preconditions and Configurations
Configuration Settings in EDM
164 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3
2.4
2.4 Configuration Settings in EDM
Configuration Settings in EDM
2.4.1
2.4.1 Disabling the Production Schedule Inserter
Disabling the Production Schedule Inserter
The Production Schedule Inserter must be disabled. ASM Material Setup Assistant already enters the
recipes into the production schedule of the SIPLACE Line Control GUI. Disabling the Production Sched
-
ule Inserter prevents the recipes from being entered twice into the Production Schedule of the SIPLACE
Line Control GUI.
► Start EDM Configuration.
► Select the Client Settings tab.
► Set the ProdSchedInserterIsActive entry to False.

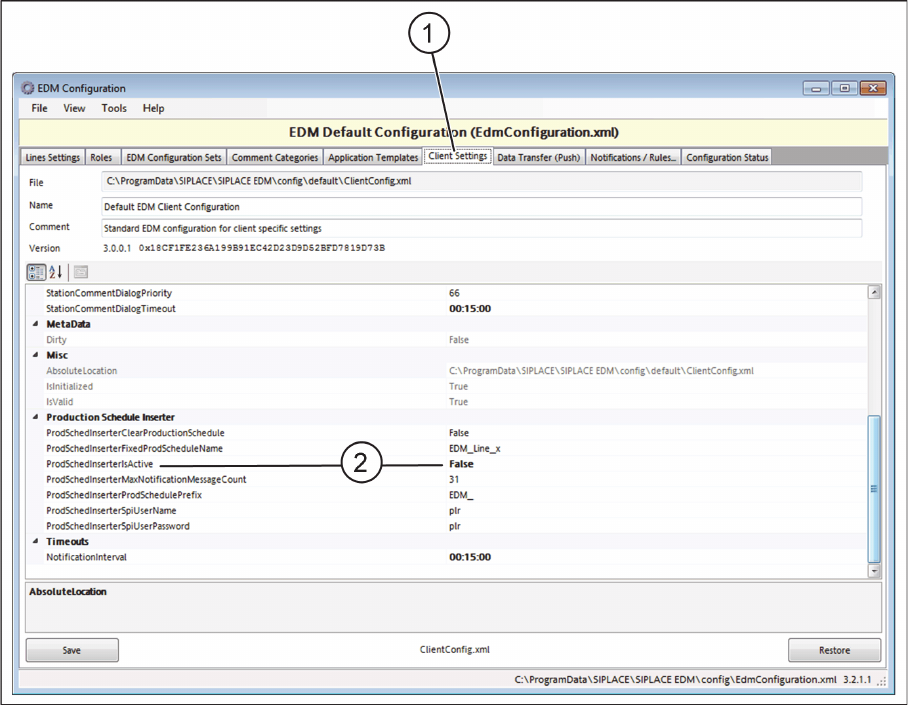

EDM Configuration - Disabling the Production Schedule Inserter
Preconditions and Configurations
Configuration Settings in EDM
ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 165
2.4.2
2.4.2 Suppressing the Display of a Callback When Changing the EDM Production Schedule
Suppressing the Display of a Callback When Changing the EDM Production Schedule
Create a rule that suppresses the display of a callback before the EDM Production Schedule is changed.
2.4.2.1
2.4.2.1 Creating a Rule
Creating a Rule
► Open the EDM Configuration.
► Select the Notifications/Rules (1) tab.
EDM Configuration - Notifications/Rules tab.
► Click the Add button (2).
⇨ The Edit rule dialog box will open.
Preconditions and Configurations
Configuration Settings in EDM
166 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3
Edit rule - Object Types tab
► In the Name and Comment fields, enter the relevant information for the rule.
► Select the Object Types (1) tab.
► Select the Production Schedule (2).
► Confirm with OK.
► Select the Application (1) tab.
Edit rule - Application tab
► Click Add and enter the name of the application. Asm.As.Scheduler.HostService.exe in this exam
-
ple.
► Confirm with OK.
