5.8 Executing and Monitoring Setup Preparation

Executing and Monitoring Setup Preparation

If the material has been picked for at least one location and has been taken to the presetup area, you

can start presetup with ASM Setup Center.

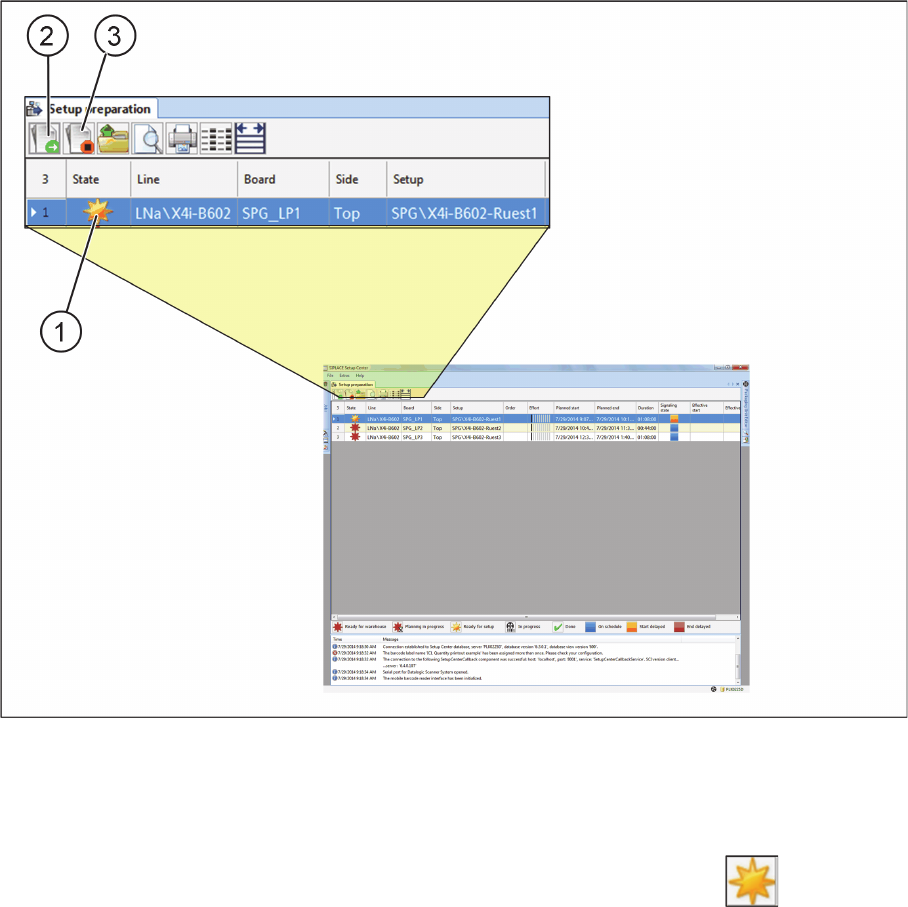

ASM Setup Center – material picking completed (example)

1. Symbol "Ready for setup"

2. Setting the start time

3. Setting the end time

Material picking has been completed for this setup and marked with the symbol (1) Ready for set

up. Refer to "3 Overview of Setup Preparation in ASM Setup Center" [ ➙ 169] for a description of pos

sible actions in the toolbar, a description of the status symbols and a description of the parameters in the

table.

► Print out the setup list.

► Scan the setup list barcode.

⇨ The scanning opens another tab with the setup currently being processed.

► Perform the pre-setup for a table as you know it from ASM Setup Center.

⇨ The progress will be shown in the display after completion of a location.

⇨ The end time is automatically set by the system, as soon as the last packaging unit has been verified.

Workflow with Flexible Family Setup

Executing and Monitoring Setup Preparation

ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 211

⇨ After all locations have been completed, setup preparation will be automatically closed.

5.8.1

5.8.1 Order Manager - Monitoring Setup Preparation

Order Manager - Monitoring Setup Preparation

During the setup process in the presetup area, you can monitor the current setup preparation status.

Example – setup preparation is running

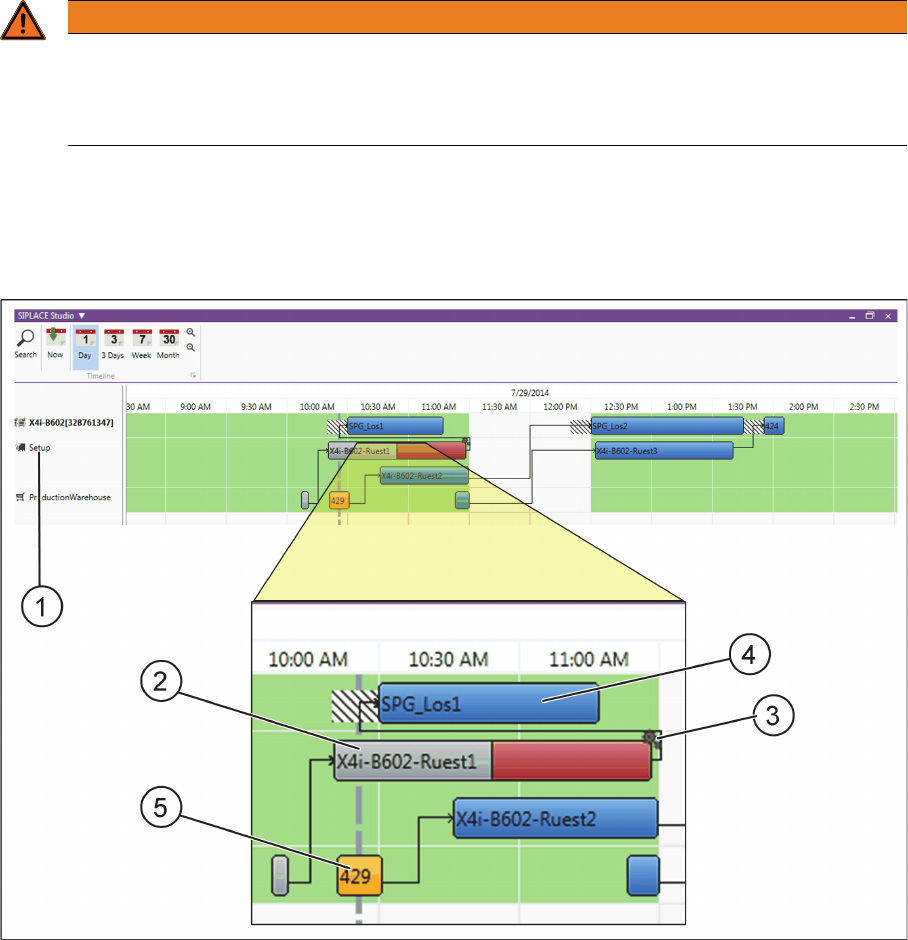

Order Manager – Monitoring – setup preparation is running (example)

(1) Display presetup area in a Gantt diagram

(2) The setup of material for the current setup preparation is approx. 50% complete (gray).

(3) The setup preparation is approx. 50% unfinished (red). The symbol shows that setup preparation

ASM Setup Center is currently being processed in your pre-setup area.

(4) The placement of this recipe could start as scheduled (blue), provided the setup preparation is com

pleted on schedule before the start time.

(5) The material picking for the next production job can be started on schedule (blue).

WARNING

Manually setting the start and end times

In the normal process, the functions Set start time (2) and Set end time (3) are automatically

performed by the system. The setting of start and end times should only be used in exceptions

and may only be used by trained specialist personnel.

Workflow with Flexible Family Setup

Executing and Monitoring Setup Preparation

212 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

5.8.2

5.8.2 Information and Context Menu

Information and Context Menu

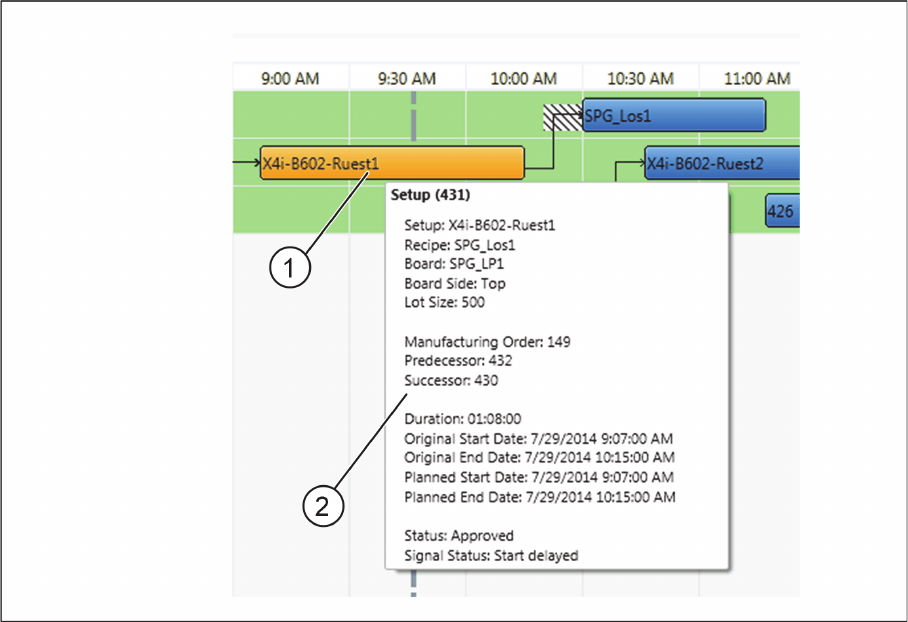

Tool tip information about setup preparation

► Move the mouse over the setup preparation (1).

⇨ A tool tip (2) with important information about the setup preparation will be shown.

Tool tip information about setup preparation
