Workflow with Flexible Family Setup Executing and Monitoring Material Picking ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Ass istant 2.3 (R17-1) 207 Example - material picking completed Order Manager – Mo…

Workflow with Flexible Family Setup

Executing and Monitoring Material Picking

206 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

5.7.1

5.7.1 Order Manager - Monitoring Material Picking

Order Manager - Monitoring Material Picking

During the picking process, you can monitor the current material picking status.

Example – material picking is running

Order Manager – Monitoring - material picking is running (example)

(1) Material picking in the Gantt diagram

(2) The picking of material for the current material picking run has been approx. 50% (gray) completed

and is approx. 50% still unfinished (red).

(3) Materials are currently being picked in your warehouse via the ASM Material Manager.

Workflow with Flexible Family Setup

Executing and Monitoring Material Picking

ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 207

Example - material picking completed

Order Manager – Monitoring - material picking completed (example)

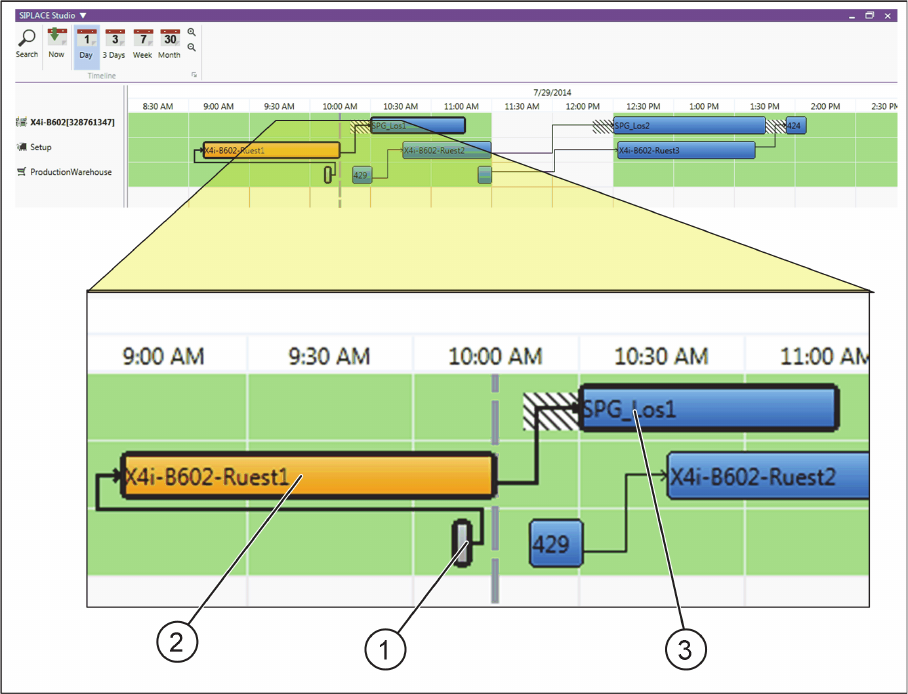

(1) Material picking has been completed (gray). However, in this example, material picking began too

late so that setup preparation (2) had a delayed start.

Production at the line (3) could still start on schedule (blue), if the setup preparation (2) can still be com

pleted by the scheduled start time.

► Start setup preparation in Setup Center. See also "5.8 Executing and Monitoring Setup Preparation"

[ ➙ 210]

Workflow with Flexible Family Setup

Executing and Monitoring Material Picking

208 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

5.7.2

5.7.2 Information and Context Menu

Information and Context Menu

Tool tip information about material picking

► Move the mouse over the material picking (1).

⇨ A tool tip (2) with important information about material picking will be shown.

Tool tip information about material picking
