Workflow with Flexible Family Setup Executing and Monitoring Setup Preparation ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Ass istant 2.3 (R17-1) 213 Context menu for setup preparation ► Right-click with …
Workflow with Flexible Family Setup
Executing and Monitoring Setup Preparation
212 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3
5.8.2
5.8.2 Information and Context Menu
Information and Context Menu
Tool tip information about setup preparation
► Move the mouse over the setup preparation (1).
⇨ A tool tip (2) with important information about the setup preparation will be shown.
Tool tip information about setup preparation
Workflow with Flexible Family Setup
Executing and Monitoring Setup Preparation
ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 213
Context menu for setup preparation
► Right-click with the mouse on the setup preparation.
⇨ The context menu (2) will open.
Context menu for setup preparation
5.8.3
5.8.3 Sorting and Recording Supplied Material
Sorting and Recording Supplied Material
Purpose
If you use the ASM Material Manager for MSA no material demand lists are created. To support the op
-
erator during setup at the line, the scan workflow Sort material is available in ASM Setup Center.
The storage management of the customer system supplies the material in the pre-setup area that is re
-
quired and to be set up at the relevant location. Perform the Sort Material scan workflow to have the
available material identified and recorded.
The scan workflow Sort material only records reels for the current location. For packaging units that are
used on other locations, the user receives a hint as to where this packaging unit is used. The user can
freely decide where this packaging unit is to be used.
Option
In ASM Setup Center, you can enable the Register material for other location function. During the scan
workflow Sort material, the packaging unit for the other recognized location is registered and will be tak
-
en into account during a recalculation of the material demand.
► Go to the ASM Setup Center main menu and enable the function Extras => Settings => General =>
Settings for offline setup verification and, in Material Setup Assistant, select the option Register ma
-
terial for other location. See also "2.2.2 Configuring the ASM Setup Center Application" [ ➙ 156].
WARNING
Manual "Set Status to In Progress" and "Finish Task"
In the normal process, the functions Set Status in Progress and Finish Task are automatically
performed by the system. Manual Set Status to In Progress and Finish Task should only be
used in exceptions and may only be used by trained specialist personnel.
Workflow with Flexible Family Setup
Executing and Monitoring Setup Preparation
214 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3
5.8.3.1

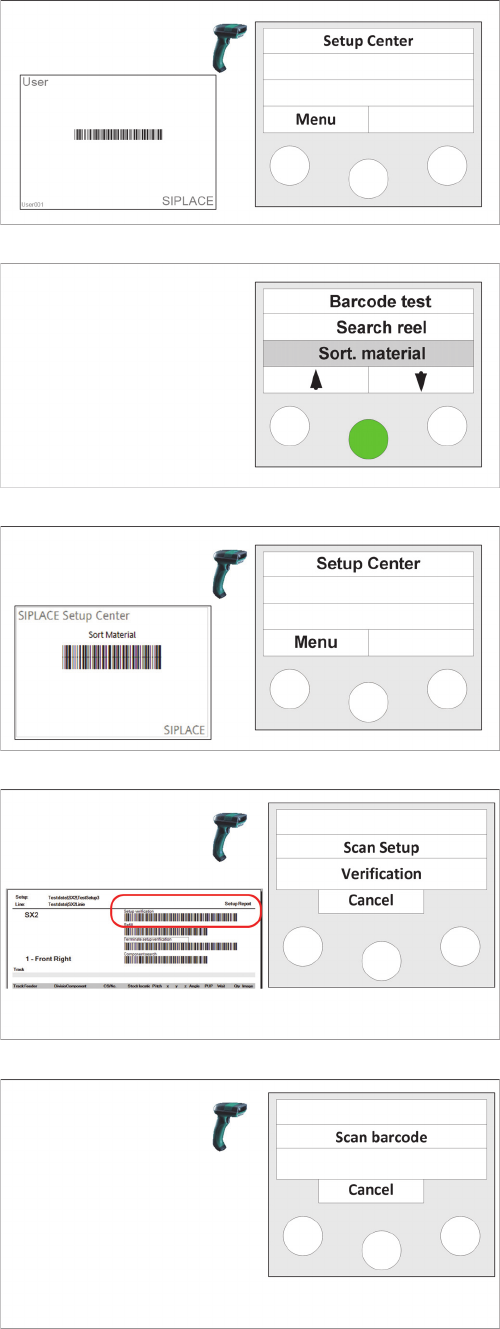

5.8.3.1 Scan Workflow "Sort Material"
Scan Workflow "Sort Material"
Step 1 (optional)
Scan in the the User if the "User registration at the reader
required“ option has been activated via
Extras Settings
Reader
.
Step 2
► Print the report for the required setup.
► Select the Sort. material function and confirm with
Enter.
Step 2a (alternatively)
► Print the report for the required setup.
► Scan the Sort. material control barcode.
Step 3
► Scan the setup verification barcode of the previously
printed setup report.
Step 4
► Scan the barcode of the packaging unit.
⇨ Depending on the usage of the packaging unit, differ
-
ent messages can be displayed at the scanner.
⇨ After the message has been displayed, you can scan
another packaging unit to have its usage displayed.
