Workflow with Flexible Family Setup
Executing and Monitoring Setup Preparation
216 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3
5.8.4.1
5.8.4.1 Scan Workflow "Check Reuse Status"
Scan Workflow "Check Reuse Status"

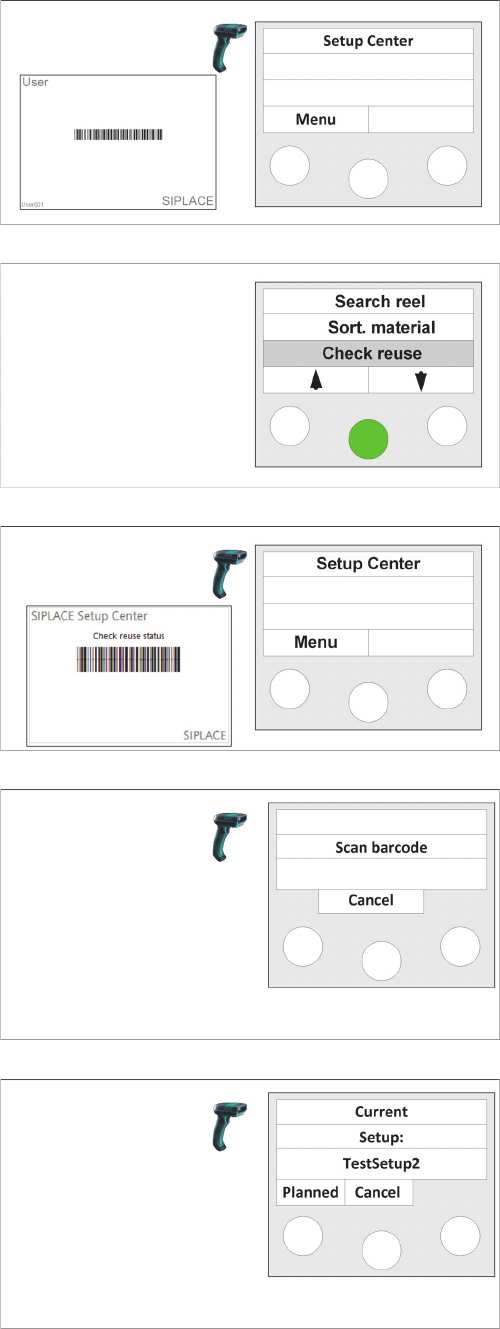

Step 1 (optional)
Scan in the the User if the "User registration at the reader
required“ option has been activated via
Extras Settings
Reader
.
Step 2
► Select the Check reuse function and confirm with En
-
ter.
Step 2a (alternatively)
► Scan the Check reuse status control barcode.
Step 3
► Scan the barcode of the packaging unit.
⇨ Depending on the status of the packaging unit, differ
-
ent messages can be displayed at the scanner.
⇨ After the message has been displayed, you can scan
another packaging unit to have its status displayed.
Message A
If this packaging unit is currently required for a setup, the
setup is displayed.
If this packaging unit is also planned for a later setup,
Planned is displayed.
► If you select Planned, message B Planned Setup is
displayed.
Workflow with Flexible Family Setup
Executing and Monitoring Setup Preparation
ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 217

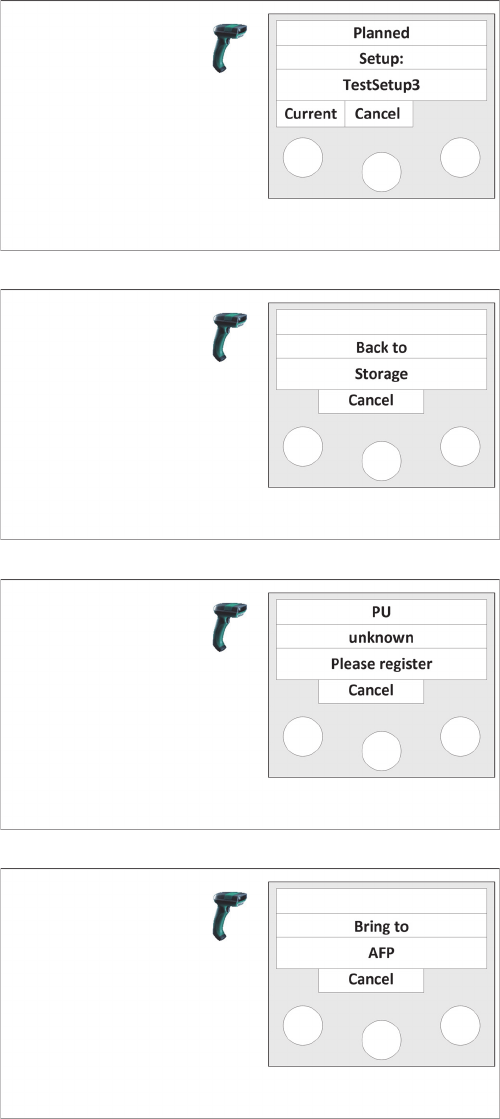

Message B
The current setup is displayed.
Use Current to switch back to the previous menu.
Message C
It is indicated that this packaging unit must be returned to
the warehouse and put into storage.
Message D
It is indicated that this packaging unit is unknown and
must be registered.
Message E
It is indicated that this packaging unit must be put into the
AFP.
Workflow with Flexible Family Setup
Producing Recipes on the Line
218 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3
5.9
5.9 Producing Recipes on the Line
Producing Recipes on the Line
► Perform a download of the first recipe (1) for the production schedule.
SIPLACE LCGUI - Download
WARNING
Handling recipes in the production schedule
You may delete recipes that were planned with the SIPLACE Material Setup Assistant only after
they have been downloaded to the line. You can remove a recipe that has not been downloaded
to the line yet from the production schedule by recalling or deleting it with the Order Manager.
Recipes that have been planned with the SIPLACE Material Setup Assistant must not be added
manually in the SIPLACE Line Control GUI.
NOTICE
Defining restrictions in the SIPLACE Line Control GUI
To ensure that the scheduled production schedules can not be changed, we recommend ena
-
bling this restrictions. See "5.5.2.1 Defining Presettings for the SIPLACE Line GUI" [ ➙ 200].
