Workflow with Flexible Family Setup Performing Presetups with Material Reuse ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Ass istant 2.3 (R17-1) 221 Changeover table in the d ocking station - feeder status…

Workflow with Flexible Family Setup

Performing Presetups with Material Reuse

220 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

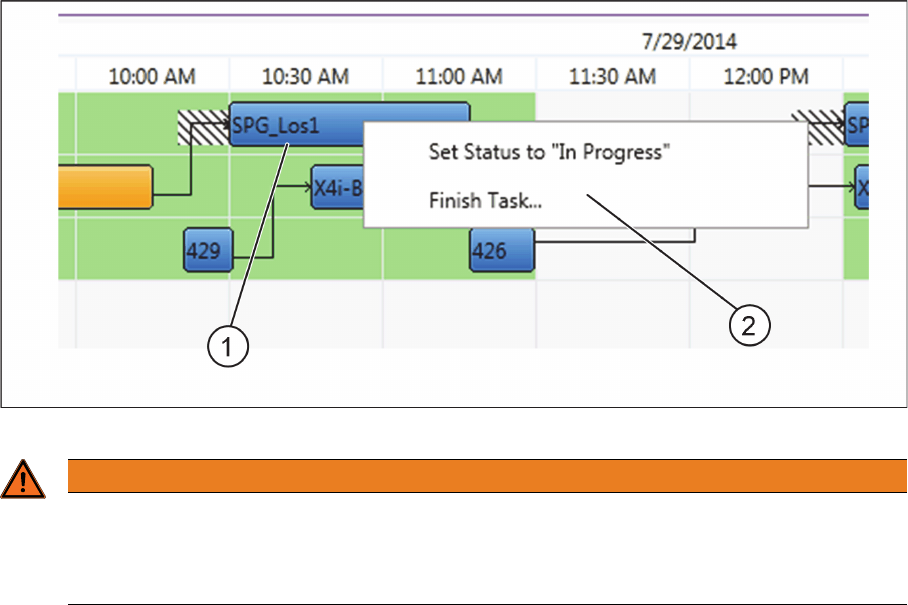

Context menu for placement (production of the recipe on the line)

► Right-click with the mouse on the placement (1).

⇨ The context menu (2) will open.

Context menu for placement

5.10

5.10 Performing Presetups with Material Reuse

Performing Presetups with Material Reuse

Material reuse means that the material from one setup (n) can be used again in the next but one setup

(n+2 rule) on the same line. Material can also be used on other lines again, if usage on the same line is

not possible. If this material comes back from the lines to the presetup area, the reuse will be shown to

the user.

In the following section, we add to the previous work steps and plan by using materials from the first set

up in the third setup.

The material from the first setup is brought from the line to the presetup area

► Wait until the last board has been placed.

► Undock the changeover table from the location.

⇨ The changeover table will be automatically logged off at the location.

► Bring the changeover table to the presetup area of your line.

► Move the changeover table into the docking station.

► Scan the control barcode Signal material reuse. Scanning this control barcode sets the docking sta

tion from mode Setup verification into the mode Signal material reuse.

⇨ You will be shown whether this feeder is "required" or "not required".

WARNING

Manual "Set Status to In Progress" and "Finish Task"

In the normal process, the functions Set Status in Progress and Finish Task are automatically

performed by the system. Manual Set Status to In Progress and Finish Task should only be

used in exceptions and may only be used by trained specialist personnel.

Workflow with Flexible Family Setup

Performing Presetups with Material Reuse

ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 221

Changeover table in the docking station - feeder status

1. Required feeder: shines green

2. Feeder not required: flashes red

The feeders shining green remain in the presetup area

► Remove the feeder from the changeover table and place it in the feeder rack. The LED will shine

green again, as soon as the feeder has been placed correctly on the feeder rack.

The feeders flashing red will be torn down

► Tear down the feeders in Setup Center.

► Bring the material back to the warehouse and use ASM Material Manager to place it back into stor

age.

Performing process for all changeover tables

► Perform the complete process with all of the changeover tables coming back from the line.

Workflow with Flexible Family Setup

Performing Presetups with Material Reuse

222 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

5.10.1

5.10.1 Setup Preparation with Material Reuse

Setup Preparation with Material Reuse

Location-based flashing of feeders on the AFP hardware

Pre-setups with material reuse are shown by two icons in the ASM Setup Center application (1 and 2).

ASM Setup Center - show feeder status

If there are feeders with reuse (LED is green) on the AFP hardware (feeder rack or docking station),

these feeders can be made to flash with the function (1). This function helps to better identify the

required feeders for the location to be set up. The flashing of the feeder for a location is also enabled by

scanning the setup list barcode.

Icon Description

Enabled:

All feeders will flash green for the selected location. For clarity, the feeders which are al

ready green (material reused but not for this location) will be switched off. Feeders with

material that cannot be reused will continue to flash red.

Enabled: The LEDs on the feeders will change back to the original state.

NOTICE

Scanning the setup list barcodes

If there are feeders with reuse (LED is green) on the AFP hardware, these feeders can also be

made to flash by scanning the setup list barcode.
