Workflow with Flexible Family Setup

Executing and Monitoring Setup Preparation

214 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

5.8.3.1

5.8.3.1 Scan Workflow "Sort Material"

Scan Workflow "Sort Material"

Step 1 (optional)

Scan in the the User if the "User registration at the reader

required“ option has been activated via

Extras Settings

Reader

Step 2

► Print the report for the required setup.

► Select the Sort. material function and confirm with

Enter.

Step 2a (alternatively)

► Print the report for the required setup.

► Scan the Sort. material control barcode.

Step 3

► Scan the setup verification barcode of the previously

printed setup report.

Step 4

► Scan the barcode of the packaging unit.

⇨ Depending on the usage of the packaging unit, differ

ent messages can be displayed at the scanner.

⇨ After the message has been displayed, you can scan

another packaging unit to have its usage displayed.

Workflow with Flexible Family Setup

Executing and Monitoring Setup Preparation

ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 215

5.8.4

5.8.4 Checking the Material Reuse Status

Checking the Material Reuse Status

Purpose

In order to identify and assign an individual packaging unit, the scan workflow Check reuse status is

available in ASM Setup Center.

This is helpful if you find material without an assignment to a location.

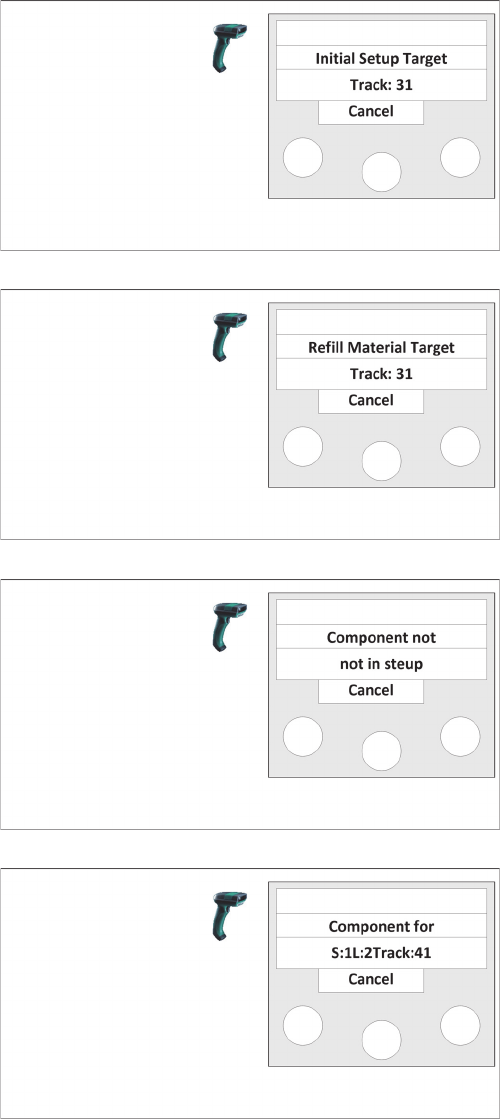

Step 5

If this packaging unit is required for the location, the tar

get track of the location is displayed.

The packaging unit is registered.

If another packaging unit has been scanned with this ma

terial, the Refill Material Target menu is displayed.

Step 5a

If this packaging unit is required as refill material for the

location, the target track of the location is displayed.

The packaging unit is registered.

If the component of this packaging unit is not part of the

setup, the Component not in setup menu is displayed.

Step 5b

It is indicated that this component is not required in this

setup.

If, however, the component of this packaging unit must be

set up at another location, the Component for menu is

displayed.

Step 5c

It is indicated that this component is required on station

(S:xx), at location (L:xx) on track (T:xx).

The packaging unit is registered if the following option is

enabled in ASM Setup Center: main menu => Extras =>

Settings => General => Settings for offline setup verifica

tion and, in Material Setup Assistant, the option Register

material for other location.

Workflow with Flexible Family Setup

Executing and Monitoring Setup Preparation

216 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

5.8.4.1

5.8.4.1 Scan Workflow "Check Reuse Status"

Scan Workflow "Check Reuse Status"

Step 1 (optional)

Scan in the the User if the "User registration at the reader

required“ option has been activated via

Extras Settings

Reader

Step 2

► Select the Check reuse function and confirm with En

ter.

Step 2a (alternatively)

► Scan the Check reuse status control barcode.

Step 3

► Scan the barcode of the packaging unit.

⇨ Depending on the status of the packaging unit, differ

ent messages can be displayed at the scanner.

⇨ After the message has been displayed, you can scan

another packaging unit to have its status displayed.

Message A

If this packaging unit is currently required for a setup, the

setup is displayed.

If this packaging unit is also planned for a later setup,

Planned is displayed.

► If you select Planned, message B Planned Setup is

displayed.
