Workflow with Flexible Family Setup
System Status after Production Schedule Approval
ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 201
Not permitting any change to production schedule
Enabled: the recipes scheduled by the SIPLACE Material Assistant can not be produced in the produc
-
tion schedule. It is not possible to manually insert recipes into the production schedule.
Warning, if a recipe has been defined in the next setup, although the recipes in the current fam
-
ily setup have not all been defined.
Enabled: A warning will be issued if a recipe has been defined in the next setup, although the recipes in
the current family setup have not all been downloaded. A list with the recipes not yet downloaded will
also be displayed.
No warning is displayed if recipes already downloaded are repeatedly downloaded. The Line Control
Server stores a maximum of the last 100 downloads.
5.5.3
5.5.3 ASM Setup Center – Setup Preparation
ASM Setup Center – Setup Preparation
The Setup preparation view shows the planned SIPLACE Material Setup Assistant tasks for setup
preparation with the Setup Center. The material demand, start and end times will be determined for all
scheduled setups, based on the corresponding setup in SIPLACE Pro.
► Open ASM Setup Center in offline mode.
► Open the Setup preparation (1) view.
ASM Setup Center – setup preparation after approval
In the Status column, the Ready for storage symbol shows that material picking has not yet start
-
ed.
Refer to "3 Overview of Setup Preparation in ASM Setup Center" [ ➙ 169] for a description of possible
actions in the toolbar, a description of the status symbols and a description of the parameters in the table.
Workflow with Flexible Family Setup
System Status after Production Schedule Approval
202 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3
5.5.4
5.5.4 ASM Material Manager
ASM Material Manager
► Open the ASM Material Manager.
► Select the Material demand list (1) view.
ASM Material Manager - Material Requirement List
The material demand lists (2) are generated for approved production jobs with a common setup. The
required material demand per setup is determined and the picking lists generated for each table/location.
► The next step is to pick the material needed for the production job from the warehouse with the PDA.
See also "5.7 Executing and Monitoring Material Picking" [ ➙ 205].
NOTICE
Only with ASM Material Manager - full version
Material demand lists can only be created with the ASM Material Manager - full version.
Workflow with Flexible Family Setup
Viewing the Material Demand
ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 203
5.6
5.6 Viewing the Material Demand
Viewing the Material Demand
In Order Manager – Monitoring, you can view the materials needed for the selected setup. You get a
quick overview of the required material needed for this setup in the pre-setup area.
► Mark the setup and right-click with the mouse.
⇨ The context menu will be opened.

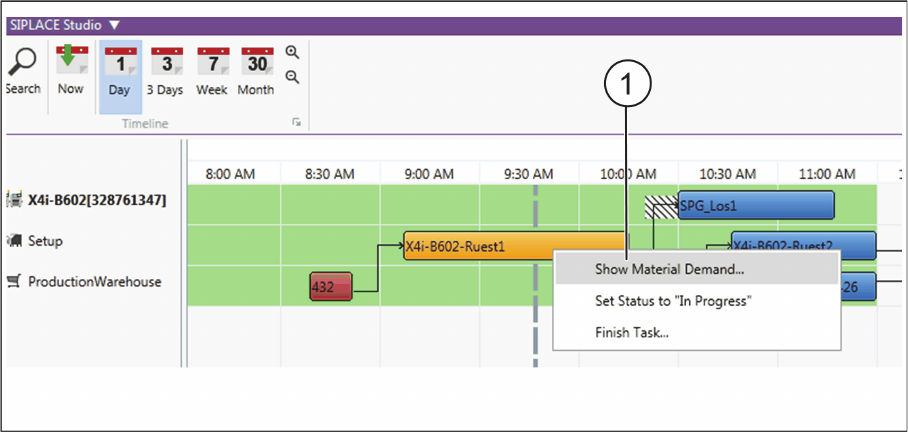

Setup preparation - context menu
► Select the function Show Material Demand.
⇨ The Show Material Demand dialog box will be shown.
► For a description of the individual parameters, refer to Dialog - Material Demand.
