Workflow with Fixed Setup and Constant Tables

Final Work and Hints

ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 235

6.9

6.9 Final Work and Hints

Final Work and Hints

Parking constant tables

After the production, the changeover tables for fixed setups or the constant tables are not returned to the

feeder rack or the docking station. The constant tables are "parked" at an appropriate place near the line.

If a constant table is required at the same position in the next setup, it can stay in the station.

The tables are parked until they are needed again.

Constant tables that are no longer used

If a constant table or a fixed setup is no longer used, perform the following tasks:

1. Tear down table(s) with Setup Center.

2. Tear down table(s) physically.

3. Store material with ASM Material Manager. The status of the material reuse is reset. (Only possible

with ASM Material Manager - full version.)

4. After step 4, do no longer use the fixed setup or the constant tables with the SIPLACE Material Setup

Assistant (planning, producing, etc.).

If you need the fixed setup or the constant tables later on, you must start from the beginning (Creating

Fixed Setups and Constant Tables in SIPLACE Pro etc.)

NOTICE

Material placed on a feeder rack

If material of or for a constant table or a fixed setup is to be placed on a feeder rack, the feeders

are shown "green" (LED). In this case, "green" means: Do not tear down.

Workflow with Fixed Setup and Constant Tables

Final Work and Hints

236 ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3

ASM Engineering Data Manager (EDM) Support

Production Schedule Approval With EDM

ASM Material Setup Assistant 2.3 (R17-1) ASM Material Setup Assistant 2.3 (R17-1) 237

7 ASM Engineering Data Manager (EDM) Support

ASM Engineering Data Manager (EDM) Support

ASM Engineering Data Manager EDM allows for data management of different SIPLACE Pro applica

tions and their production lines in your factory. EDM must be configured in the OIB. See also EDM Con

figuration.

7.1

7.1 Production Schedule Approval With EDM

Production Schedule Approval With EDM

In an EDM or EDMn scenario, the behavior of SIPLACE Material Setup Assistant changes for the ap

proval of production schedules.

After approval in the Order Manager, the EDM master pushes the recipes of the production schedules

to the EDM client.

During this data push, a dialog box is displayed that shows the transfer progress.

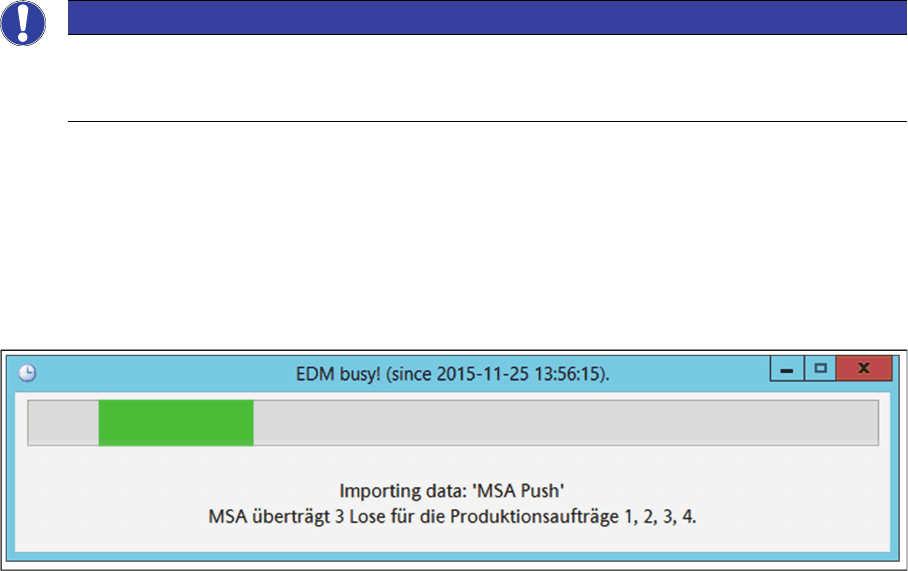

Transfer progress of EDM data push

If the data push is completed, the recipes of the production schedules are entered into the SIPLACE Line

Control GUI. See also "5.5 System Status after Production Schedule Approval" [ ➙ 197].

Downloads are reported back to the SIPLACE Material Setup Assistant. Thereby, the production order

of the downloaded recipe is set to In Work and the production order that is in work at this point in time is

completed.

NOTICE

Detailed information about EDM

For detailed information about EDM and templates, refer to the current User Manual of the ASM

Engineering Data Manager.
